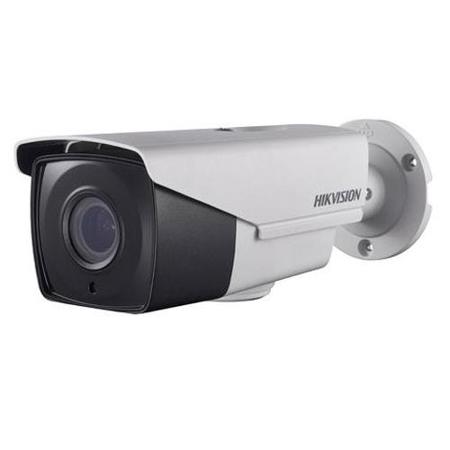

Hikvision 5MP Outdoor Day & Night HD-TVI EXIR Bullet Camera with 2.8-12mm Lens
See all Hikvision items

Hikvision 5MP Outdoor Day & Night HD-TVI EXIR Bullet Camera with 2.8-12mm Motorized Varifocal Lens, 131' IR Night Vision, 20fps

SKU: HV2CE16H1T3Z

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision Bullet Camera Specifications

Camera

Camera

Jump to...

  • Image Sensor

    5MP CMOS image sensor

  • Effective Pixels

    2592 (H) x 1944 (V)

  • Min. illumination

    Color: 0.01 Lux at (F1.2, AGC ON), 0 Lux with IR

  • Shutter Time

    PAL: 1/25 s to 1/50,000s
    NTSC: 1/30 s to 1/50,000 s

  • Lens

    Motorized VF lens; 2.8 to 12 mm

  • Horizontal Field of View

    27.7 deg. to 86.8 deg. (2.8 to 12 mm)

  • Lens Mount

    Dia.: 14

  • Day & Night

    ICR

  • Angle Adjustment

    Pan: 0 deg. to 360 deg. ; Tilt: 0 deg. to 90 deg. ; Rotate: 0 deg. to 360 deg.

  • Synchronization

    Internal synchronization

  • Video Frame Rate

    2592 x 1944 at 20fps

  • HD Video Output

    1 HD analog output

Menu

Jump to...

  • AGC

    Support

  • D/N Mode

    Auto/Color/BW (Black and White)

  • White Balance

    ATW/MWB

  • BLC

    Support

  • Language

    English, Chinese

  • Functions

    Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR

General

Jump to...

  • Operating Conditions

    -40 to 60 deg. C (-40 to 140 deg. F), humidity: 90% or less (non-condensation)

  • Power Supply

    12 VDC +/- 20% 24 VAC +/- 20%

  • Power Consumption

    Max. 9W

  • Protection Level

    IP67

  • IR Range

    Up to 40m (131.23')

  • Communication

    Up the coax, Protocol: HIKVISION-C (TVI output)

  • Dimensions

    3.62 x 3.34 x 3.34" (9.19 x 8.48 x 8.48cm)

  • Weight

    Approx. 1.98 lbs (0.90kg)

Other

Jump to...

  • UPC Code

    842571104349

About Hikvision Bullet Camera

• 5 megapixel high-performance CMOS
• HD analog output, up to 5 MP resolution
• 2.8 to 12 mm motorized vari-focal lens
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 40 m IR distance
• IP67
• Up the Coax (HIKVISION-C)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision 5MP Outdoor Day & Night HD-TVI EXIR Bullet Camera with 2.8-12mm Motorized Varifocal Lens
  • Hikvision 3 Year Parts and Labor Warranty
