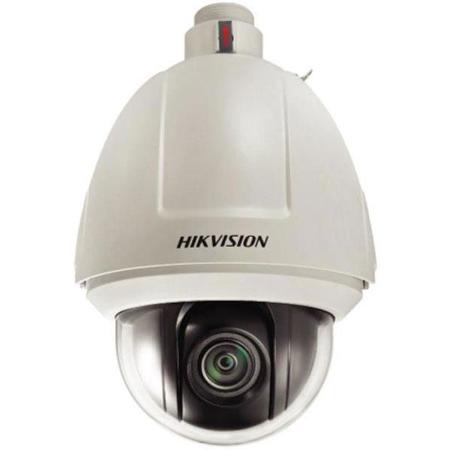

Hikvision 1.3MP Outdoor PTZ Dome Network Camera, H264, 30x Optical Zoom, Day/Night, Smart Tracking, IP66, Heater, HiPoE/24VAC (Includes HiPoE Injector)

SKU: HV2DF5276AEL

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hikvision 1.3MP Outdoor PTZ Dome Network Camera Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Effective Pixels

    1320K pixels

  • Min. Illumination

    Color: 0.05Lux at (F1.6, AGC ON), B/W: 0.005Lux at (F1.6, AGC ON)

  • White Balance

    Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

  • AGC

    Auto/Manual

  • S/N Ratio

    Greater than 52dB

  • Day & Night

    IR Cut Filter

  • Digital Zoom

    16X

  • Backlight Compensation

    BLC

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    128X Digital WDR

  • Shutter Speed

    1 - 1/10,000s

  • Focus Mode

    Auto/Semiautomatic/Manual

  • Focal Length

    4.3 - 129mm, 30x

  • Zoom Speed

    Approx.3s (Optical Wide-Tele)

  • Angle of View

    58.9 - 2.11 Degree (Wide-Tele)

  • Min. Working Distance

    10 - 1,500mm (Wide-Tele)

  • Aperture Range

    F1.4 - F5.0

  • Pan / Tilt Range

    Pan: 360 Degree endless; Tilt: -5 Degree - 90 Degree (Auto-Flip)

  • Pan / Tilt Speed

    Pan Manual Speed: 0.1 Degree - 250 Degree/s, Pan Preset Speed: 300 Degree/s
    Tilt Manual Speed: 0.1 Degree - 150 Degree/s, Tilt Preset Speed: 200 Degree /s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    256

  • Patrol

    8 patrols, up to 32 presets per patrol

  • Park Action

    Pattern / Pan Scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • Audio Input

    Optional audio input (Line input), 2-2.4V[p-p]; output impedance: 1K Ohms 10%

  • Audio Output

    Line level, impedance: 600 Ohms

  • Ethernet

    10Base-T/100Base-TX, RJ45 connector

  • Max. Image Resolution

    1280 x 960

  • Frame Rate

    60Hz: 30fps (1280x960), 30fps (1280x720)

  • Image Compression

    H.264/MPEG4

  • Audio Compression

    G.711u/G.711a/G.726

  • Protocols

    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE

  • Simultaneous Live View

    Up to 6

  • Streams

    Dual Streams

  • Mini SD Memory Card

    Micro SD Slot, up to 32GB

  • User/Host Level

    Up to 32 users, 3 Levels: Administrator, Camera control, Live view only

  • Security Measures

    User authentication (ID and PW), Host authentication (MAC address)

  • Application programming

    Open-ended API, support Onvif, PSIA and CGI

  • Web Browser

    IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+

  • RS-485 Protocols

    HIKVISION, Pelco-P, Pelco-D, self-adaptive

  • Working Temperature

    24VAC: -40 Degree C - 65 Degree C (-40 Degree F - 149 Degree F)
    Hi-PoE: 30 Degree C - 65 Degree C (-22 Degree F-149 Degree F)
    PoE+: -20 Degree C-65 Degree C (-4 Degree F-149 Degree F)

  • Mount Option

    Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1633ZJ, Pole Mount: DS-1622ZJ; Power box mount: DS-1634ZJ

  • Power

    24VAC: -40 Degree C - 65 Degree C (-40 Degree F - 149 Degree F)
    Hi-PoE: -30 Degree C - 65 Degree C(-22 Degree F - 149 Degree F)
    PoE+: -20 Degree C - 65 Degree C(-4 Degree F - 149 Degree F)

  • Humidity

    90% or less

  • Protection Level

    IP66 standard (outdoor dome)
    TVS 4,000V lighting protection, surge protection and voltage transient protection

  • Dimensions

    8.66 x 12.02" (220x305mm ) (outdoor)

  • Weight (approx.)

    11.20 lbs (5kg )

  • UPC Code

    816783016141

About Hikvision 1.3MP Outdoor PTZ Dome Network Camera

Hikvision is known for producing high-quality video and surveillance components, and this outdoor dome-style unit is no exception. With a whole host of smart functions, helpful interface points, and additional security features, it's a great solution to your indoor or outdoor monitoring needs.

The camera is built around a progressive-scan CMOS sensor, which delivers HD video recording and 1.3MP still-image capture. The lens is a 4.3-129mm zoom that provides a 59-degree field of view at its widest, giving you a real bird's-eye view wherever you install it. Digital noise reduction further aids the camera's imaging abilities, eliminating blur and grain, and an IR cut filter gives you the low-light performance you need.

The camera's housing is also noteworthy with its IP66 weatherproof rating and IK10 impact-resistance rating. It can operate in a temperature range of -40F to +149F, aided by an internal heating element that can automatically defog or defrost the unit. It can also withstand humidity levels up to 90%. The IK10 rating means it's resistant to tampering or vandalization, as well as accidental contact.

• 1/3" Progressive Scan CMOS
• 1280 x 960 HD resolution
• 30x / 20x optical zoom, 16x digital zoom
• True Day/Night, 3D DNR, Digital WDR
• 3D intelligent positioning
• Support 24VAC / PoE+ power supply

Key Features

  • HD video recording
  • 1.3MP still-image capture
  • IP66 weatherproof rating
  • IK10 impact resistance
  • 128x digital dynamic range
  • Automated patrolling

What's in the box:

  • Hikvision 1.3MP Outdoor PTZ Dome Network Camera
  • Hikvision 3 Year Limited Warranty
