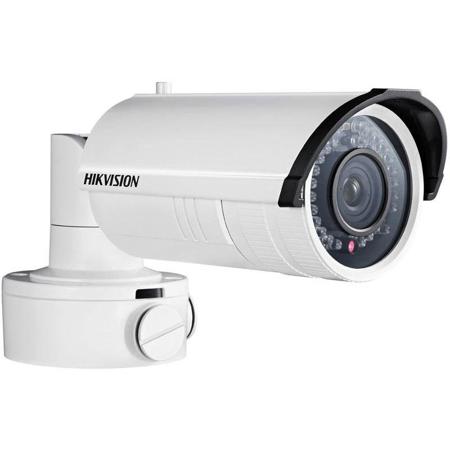

Hikvision 3MP WDR IR Outdoor Bullet Network Camera, 8-32mm Lens, Heater
See all Hikvision items

Hikvision 3MP WDR IR Outdoor Bullet Network Camera with 8-32mm Motorized Variforcal Lens and Heater, 1080p, H264, Day/Night, IP66, Heater, PoE+/12VDC

SKU: HV4232FWDZH8

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision Outdoor Bullet Camera Specifications

  • Image sensor

    1/3" progressive scan CMOS

  • Min. illumination

    0.1 lux at F1.2, AGC on, 0.14 lux at F1.4, AGC on, 0 lux with IR

  • Shutter time

    1s - 1/100,000s

  • Slow shutter

    Yes

  • Lens

    2.8 - 12mm at F1.4, angle of view: 91.2 Degree - 28.3 Degree (-Z: motorized VF lens)
    8-20mm at F1.6 lens (optional), angle of view: 33.2 Degree - 13.8 Degree

  • Lens mount

    14 dia

  • Auto iris

    DC drive

  • Day & night

    ICR (Auto/Schedule/Alarm Trigger)

  • Digital noise reduction

    3D DNR

  • Wide dynamic range

    120dB WDR

  • Video compression

    H.264 / MPEG4 / MJPEG

  • H.264 codec profile

    Baseline profile / main profile / high profile

  • Video bit rate

    32 Kbps - 16 Mbps

  • Max. resolution

    2048 x 1536

  • Frame rate

    50 Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
    60 Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)

  • 3rd stream

    Independent setting, up to: 50Hz: 20fps (2048 x 1536), 60Hz: 20fps (2048 x 1536)

  • Image settings

    Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser

  • BLC

    Yes, zone configurable

  • Defog

    Yes

  • EIS

    Yes

  • Picture overlay

    128 x 128, BMP 24bit, zone configurable

  • ROI

    Yes, up to 4 configurable areas

  • Network storage

    NAS

  • Alarm trigger

    Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)

  • Security

    User authentication, watermark, IP address filtering, anonymous access, reset

  • System compatibility

    ONVIF, PSIA, CGI

  • Communication interface

    1 RJ45 10M / 100M ethernet port

  • On-board storage

    Built-in Micro SD/SDHC/SDXC slot, up to 64 GB

  • Reset button

    Yes

  • Operating conditions

    Minus 30 DegreeC - 60 Degree C (-22 Degree F - 140 Degree F), humidity 95% or less (non-condensing)
    H: -40 Degree C - 60 Degree C (-40 Degree F - 140 Degree F) , with smart heater on

  • Power supply

    12 VDC 10%, PoE (802.3af )

  • Power consumption

    Max. 11.5W
    H: Max. 12.5W

  • IR range

    Up to 30m
    Up to 80m IR with 8-20m VF lens

  • Ingress protection

    IP66

  • HD Recording

    Yes

  • Night Vision Distance

    262.47 ft

  • Color Supported

    Color

  • Effective Camera Resolution

    3 Megapixel

  • Focal Length

    8 mm to 32 mm

  • Optical Zoom

    4x

  • Connectivity Technology

    Cable

  • Remote Management

    Yes

  • Network (RJ-45)

    Yes

  • Form Factor

    Bullet
    Ceiling Mount
    Wall Mount

  • Dimensions

    4.1 x 3.9 x 12.9" (98 x 105 x 328.8 mm)

  • Weight

    3.75 lb (1700g)

  • UPC Code

    816783018510

About Hikvision Outdoor Bullet Camera

Why Smart IP?
Smart IP is the latest concept that brings intelligence, efficiency, and convenience to modern video surveillance. Enriched with Smart technologies, Hikvision's new Smart IP cameras, Smart PTZ Dome cameras, and Smart NVRs are all specifically designed to deliver smart security in the modern marketplace.

Representing this concept is Hikvision's 4-line Smart IP Camera Series. Meeting all bandwidth and storage utilization requirements, this series o f fers unparalleled image quality and customer convenience. Similarly, Hikvision's Smart PTZ Dome Camera Series features excellent HD, smooth Pan/Tilt/Zoom, and smart tracking functions to ensure the elimination of all blind spots within the camera's area of coverage. At the core of this solution is Hikvision's Smart NVR series. With the ability to connect all Hikvision Smart cameras together, this NVR series simplifies the process even further. Features such as live viewing, recorded video, smart video playback, and event playback/backup are available. In addition to these features, this Smart NVR series is also notable for multi-channel recording, HD video preview, massive storage capacity, and system stability, providing an ideal choice for professional surveillance applications.

• Up to 2048 x 1536 high resolution
• Full HD1080p video
• Smart Codec
• 120dB WDR, 3D DNR
• Triple streams
• On-board storage, up to 64GB
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD
• Smart Facial Detection
• Intrusion Detection
• Built-in heater
• Defog
• EIS (Electronic Image Stabilization)

Hikvision Outdoor Bullet Camera Features

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision 3MP WDR IR Outdoor Bullet Network Camera with 8-32mm Motorized Variforcal Lens and Heater
  • Hikvision Limited 3 Year Warranty
