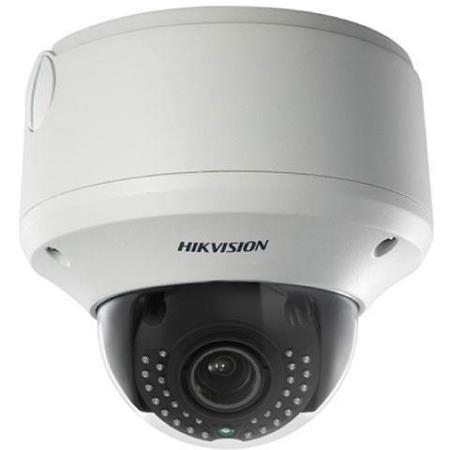

Hikvision 1.3MP WDR Outdoor Dome Network Camera with 2.8 - 12mm Varifocal Lens
See all Hikvision items

Hikvision 1.3MP WDR Outdoor Dome Network Camera with 2.8 - 12mm Motorized Varifocal Lens, H264, Day/Night, Audio, Alarm I/O, IP66, Heater, PoE/24VAC

SKU: HV4312FWDZHS

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision 1.3MP WDR Outdoor Dome Network Camera with 2.8 - 12mm Varifocal Lens Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Minimum Illumination

    0.014 lux at F1.4, AGC on, 0 lux with IR

  • Shutter Time

    1s - 1/100,000s

  • Lens

    2.8 - 12mm at F1.4, angle of view: 98.4 Degree - 30.2 Degree (-Z: motorized VF lens)

  • Lens Mount

    14mm

  • Day& Night

    ICR

  • Auto Iris Lens

    DC drive

  • Angle adjustment (2-Axis)

    Pan: 0 Degree - 355 Degree , tilt: 0 Degree - 75 Degree , rotation: 0 Degree - 355 Degree

  • Lens control

    Motorized

  • Noise reduction

    3D DNR

  • Video Compression

    H.264/Mpeg4/M-JPEG

  • H.264 Compression Profile

    Baseline profile / main profile / high profile

  • Bit Rate

    32 Kbps - 16Mbps

  • Audio Compression (-S)

    G.711 / G.726

  • Audio bit rate (-S)

    64Kbps (G.711) / 16Kbps (G.726)

  • Max Image Resolution

    1280 x 960

  • Frame Rate

    60 Hz: 30fps (1280 x 960), 30fps (1280 x 720)

  • Image Settings

    Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser

  • BLC

    Yes, zone configurable

  • 3rd stream frame rate

    Independent setting, up to: 60Hz: 30fps (1280 x 960)

  • ROI codec M

    Yes, up to 4 configurable areas

  • Network Storage

    NAS

  • Alarm Trigger

    Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error

  • Protocols

    TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS

  • System Compatibility

    ONVIF, PSIA, CGI

  • General Functionalities (Security)

    User authentication, watermark

  • Security

    User authentication, watermark, IP address filtering, anonymous access, reset

  • Communication Interface

    1 RJ45 10 M / 100 M Ethernet interface

  • On-board Storage

    Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

  • Video Output

    1 Vp-p composite output (75 Ohms / RCA)

  • Reset button

    Yes

  • Power Supply

    24 V AC 10%, High PoE (802.3at)

  • Power Consumption

    Max. 12W
    -Z/-H: Max. 13W

  • Working Temperature (Operating Condition

    Minus 30 Degree C - 60 Degree C (-22 Degree F - 140 Degree F), humidity 95% or less (non-condensing)
    -H: -40 Degree C - 60 Degree C (-40 Degree F - 140 Degree F) , with smart heater on

  • Weather Proof

    IP66

  • Impact Protection

    IEC60068-275Eh, 50J; EN50102, exceeding IK10

  • IR Range

    Approx. 20 to 30 meters

  • Dimensions

    6.29 x 5.75" (159.8 x 146 mm)

  • Weight

    4.62 lbs (2100g)

  • UPC Code

    816783017872

About Hikvision 1.3MP WDR Outdoor Dome Network Camera with 2.8 - 12mm Varifocal Lens

Hikvision's brand reputation is totally built upon putting out quality cameras and camera accessories, and this outdoor dome-style surveillance unit is no exception to that rule. With a whole array of smart-assist functions and helpfulfeatures, it's a stellar choice for your all-season surveillance needs.

A progressive-scan CMOS sensor captures 1.3MP still images and HD video, aided by great night vision capabilities and a smart autofocus system. Other dedicated smart functions include facial recognition, motion and intrusiondetection, audio disruption detection with a dynamic range of 120 decibels, and user security features.

The camera housing has a weatherproof rating of IP66, meaning it can be used year-round, even in inclement weather. An internal heater allows for operation in extremely cold or hot temperatures (the range is approximately -40 to +140 degrees Farenheit) and enables automatic defogging and defrosting. This also gives the camera the ability to deal with large fluctuations in humidity or temperature, such as being positioned near a door or entrance in a cold climate,or close to ventilation systems. The housing also has an impact-resistance rating of IK10.


• Up to 1280 x 960 high resolution
• HD720p video
• Smart Codec
• 120dB WDR, 3D DNR
• Triple streams
• On-board storage, up to 64GB
• Smart Focus: Motorized VF lens
• Smart VQD
• Smart Facial Detection
• Intrusion Detection
• Built-in heater
• Defog
• EIS (Electronic Image Stabilization)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HD video recording
  • 1.3MP still-image capture
  • Weatherproof housing
  • Onboard storage
  • Impact resistance
  • Audio in/out

What's in the box:

  • Hikvision 1.3MP WDR Outdoor Dome Network Camera with 2.8-12mm Varifocal Lens
  • Hikvision 3 Year Limited Warranty
