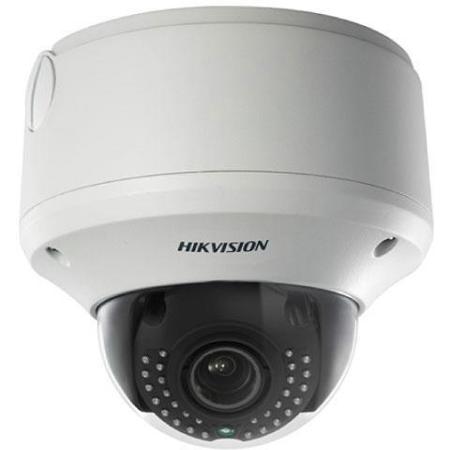

Hikvision 2MP WDR IR Outdoor Network Dome Camera, 8-32mm Lens, Heater, Audio
See all Hikvision items

Hikvision 2MP WDR IR Outdoor Network Dome Camera with 8-32mm Motorized Varifocal Lens, Heater and Audio I/O, 1080p, H264, Day/Night, IP66, PoE+/24VAC

SKU: HV4324FWDZS8

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision 2MP WDR IR Outdoor Network Dome Camera, 8-32mm Lens, Heater, Audio Specifications

  • Image Sensor

    1/3" Progressive scan CMOS

  • Minimum Illumination

    0.02 lux at f/1.2, AGC on, 0.027 lux at f/1.4
    0 lux with IR on

  • IR Range

    Approximately 32.8 to 98.4' (10 to 30 m)

  • Lens

    8 to 32 mm at f/1.4
    Angle of View: 31.2 Degree to 10.2 Degree

  • Lens Mount

    14 dia

  • Auto Iris

    DC drive

  • Day & Night

    IR cut filter (Auto/Schedule/Alarm Trigger)

  • Angle Adjustment

    Pan: 0 to 355 Degree
    Tilt: 0 to 75 Degree
    Rotation: 0 to 355 Degree

  • Shutter Time

    1 to 1/100,000 sec

  • Slow Shutter

    Yes

  • Digital Noise Reduction (DNR)

    3D

  • Wide Dynamic Range

    120 dB

  • Video Compression

    H.264 / MPEG4 / MJPEG

  • H.264 Profile

    Baseline profile / main profile / high profile

  • Video Bit Rate

    32 kb/s to 16 Mb/s

  • Audio Compression

    G.711 / G.722.1 / G.726 / MP2L2

  • Audio Bit Rate

    64 kb/s G.711) / 16 kb/s (G.722.1) / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2)

  • Maximum Image Resolution

    1920 x 1080

  • Frame Rate

    50 Hz: 50 fps (1920 x 1080, 1280 x 960, 1280 x 720)
    60 Hz: 60 fps (1920 x 1080, 1280 x 960, 1280 x 720)

  • Multi-Streaming

    Independent Setting, Up to: 50 Hz: 25 fps (1920 x 1080)
    60 Hz: 30 fps (1920 x 1080)

  • Image Settings

    Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser

  • Light Compensation

    BLC (zone configurable), HLC

  • Defog

    Yes

  • Image Stabilization

    Electronic

  • Image Overlay

    128 x 128, BMP 24-bit, zone configurable

  • ROI

    Yes, up to 4 configurable areas

  • Network Storage

    NAS

  • Alarm Trigger

    Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour

  • Security

    User authentication, watermark, IP address filtering, anonymous access, and reset

  • System Compatibility

    ONVIF, PSIA, and CGI

  • Communication

    1 x RJ45 10 M / 100 M Ethernet port

  • Video Output

    1 Vpp composite output (75 ohms / RCA, for lens adjustment when installation)

  • Onboard Storage

    Built-in microSD/SDHC/SDXC slot, up to 64 GB

  • Reset Button

    Yes

  • Audio

    1-channel I/O

  • Alarm

    1-channel I/O

  • Control

    RS-485

  • Operating Conditions

    Minus 22 to 140 DegreeF (-30 to 60 DegreeC)
    -40 to 140 DegreeF (-40 to 60 DegreeC) with smart heater on

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    24 VDC 10% , PoE (802.3at)

  • Power Consumption

    Maximum 13 W

  • Ingress protection

    IP66 weatherproof rating

  • Impact Protection

    IEC60068-275Eh, 50J; EN50102, exceeding IK10

  • Dimensions

    6.29 x 5.75" (15.98 x 14.60 cm)

  • Weight

    4.62 lb (2.10kg)

  • UPC Code

    816783018541

About Hikvision 2MP WDR IR Outdoor Network Dome Camera, 8-32mm Lens, Heater, Audio

Why Smart IP
Smart IP is the latest concept that brings intelligence, efficiency, and convenience to modern video surveillance. Enriched with Smart technologies, Hikvision's new Smart IP cameras, Smart PTZ Dome cameras, and Smart NVRs are all specifically designed to deliver smart security in the modern marketplace.

Representing this concept is Hikvision's 4-line Smart IP Camera Series. Meeting all bandwidth and storage utilization requirements, this series o f fers unparalleled image quality and customer convenience. Similarly, Hikvision's Smart PTZ Dome Camera Series features excellent HD, smooth Pan/Tilt/Zoom, and smart tracking functions to ensure the elimination of all blind spots within the camera's area of coverage. At the core of this solution is Hikvision's Smart NVR series. With the ability to connect all Hikvision Smart cameras together, this NVR series simplifies the process even further. Features such as live viewing, recorded video, smart video playback, and event playback/backup are available. In addition to these features, this Smart NVR series is also notable for multi-channel recording, HD video preview, massive storage capacity, and system stability, providing an ideal choice for professional surveillance applications.

• Up to 2 megapixel (1920x1080) @ 60 fps resolution
• Standard video compression with high compression ratio
• Some specialized encoding functions are supported such as ROI (Region of Interest), SVC (Scalable Video Coding), etc
• Progressive scan CMOS
• Support three streams, main stream and third stream can up to 2MP, sub-stream for mobile surveillance
• Built-in Micro SD / SDHC / SDXC card slot, up to 128GB
• High-performance and long service life Infrared LED, Approx. 10 to 30 meters
• Support motorized VF lens(-Z model)
• Support smart heater(-H model)
• Support 3D DNR
• Support 120dB WDR
• Support Defocus Detection and alarm linkage
• Support smart face detection. People face can be detected and image encoding on face area can be automatically enhanced
• Support Environmental Noise Filtering
• Support Audio Exception Detection, alarm will be triggered when the sound intensity is over the previous threshold
• Support Smart Video Analysis functions such as Intrusion Detection, which can be configured on the local IE menu of camera
• Support people counting, volume of visitor flow can be kept and exported
• IR cut filter with auto switch
• Support Smart Defog
• Support EIS
• PoE (Power over Ethernet)
• Up to 20 channels live view at the same time
• Auto-iris, electronic shutter, hallway mode for different surveillance environments
• Support local analog video output for adjustment and installation
• 3-axis (pan/tilt/rotation) positioning allows adjustment for optimum camera rotation and position
• Ingress Protection level: IP66

Hikvision 2MP WDR IR Outdoor Network Dome Camera, 8-32mm Lens, Heater, Audio Features

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HD 1080p video recording
  • 2MP still-image capture
  • Supports up to 3 simultaneous streams
  • Motorized VeriFocus lens
  • 120 decibels of dynamic audio range
  • Smart face detection

What's in the box:

  • Hikvision 2MP WDR IR Outdoor Network Dome Camera
  • Hikvision Limited 3 Year Warranty
