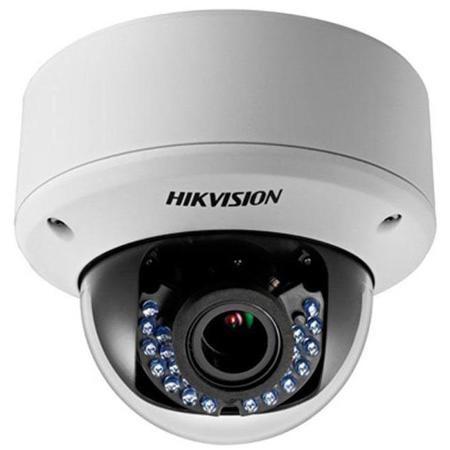

Hikvision Turbo HD720P Outdoor Vandal Proof IR Dome Camera with 2.8-12mm Varifocal Lens, 40m IR Day/Night, DWDR, UTC Menu, IP66, 24VAC/12VDC

SKU: HV56C5TAVPR3

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hikvision Turbo HD720P Outdoor Vandal Proof IR Dome Camera with 2.8-12mm Lens Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Signal System

    PAL/NTSC

  • Effective Pixels

    1305 (H) x 1049 (V)

  • Min. Illumination

    0.001 Lux at (F1.2,AGC ON), 0 Lux with IR

  • Shutter Time

    1/50(1/60)s to 1/50,000s

  • Lens

    2.8-12mm at F1.4
    Angle of view: 78 Degree - 28 Degree

  • Lens Mount

    M12

  • Adjustment Range

    Pan: 0 - 355 Degree , Tilt: 0 - 80 Degree , Rotation: 90 Degree

  • Day& Night

    IR cut filter with auto switch

  • Video Frame Rate

    720p at 50fps/720p at 60fps

  • HD Video Output

    1 Analog HD output

  • Synchronization

    Internal Synchronization

  • Video Output

    1Vp-p Composite Output (75 Ohms/BNC)

  • S/N Ratio

    More than 62 dB

  • Up the Coax

    Support

  • Auto Gain

    Low/Middle/High/Off

  • D/N Mode

    Color/ BW/ EXT

  • Auto White Balance

    Auto / Manual

  • Private Mask

    On/Off, maximum 8 zones

  • Motion Detection

    On/Off, maximum 4 zones

  • Language

    English/Chinese

  • Function

    Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror

  • Operating Conditions

    Minus 30 Degree C - 60 Degree C (-22 Degree F - 140 Degree F)
    Humidity 90% or less (non-condensing)

  • Power Supply

    12 V DC 10%
    (-A series support 24 V AC 10%, 12 V DC 10%)

  • Power Consumption

    12 VDC: Max. 3.5W
    24 VAC: Max. 4.5W

  • Impact Protection

    IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10

  • Weather Proof

    IP66

  • IR Range

    Up to 40m

  • Dimension

    5.72 x 4.89" (145.3 x 124.2 mm)

  • Weight

    1.95 lb (880 g)

About Hikvision Turbo HD720P Outdoor Vandal Proof IR Dome Camera with 2.8-12mm Lens

Hikvision's brand reputation is built on producing quality surveillance and video components, and this indoor dome-style unit is no exception. With a whole host of smart functions, helpful interface points, and additional security features, the camera will help keep a watchful eye on what's important to you.

The camera's built around a 1/3" progressive-scan CMOS sensor, which provides 720p video output as well as still-image capture. Low-light performance is aided by digital noise reduction technology, as well as an IR cut filter and supplemental LED lighting, increasing the night vision range to 40 meters in total darkness. Other security features include motion and intrusion detection and a tampering alarm.

The camera's housing is weatherproofed to an IP66 standard, meaning it can be installed in an open outdoor setting such as under a large overhang, near entry/exit doors, or in uninsulated structures like garages. It can operate without issue in temperatures as low as -22F and as high as +140F, and can handle humidity up to 90%.

• HD720P Video Output
• Adopt HDTVI Technology
• True Day/Night
• 2.8 - 12mm vari-focal lens
• OSD menu, 3D DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof & Vandal Proof
• Low illumination
• Up the Coax (via coaxial cable)

Key Features

  • 720p video output
  • Still-image capture
  • IR range of 40 meters
  • Digital noise reduction technology
  • Suitable for outdoor installation
  • IP66 weatherproof rating

What's in the box:

  • Hikvision Turbo HD720P Outdoor Vandal Proof IR Dome Camera with 2.8-12mm Varifocal Lens
  • Hikvision 3 Year Limited Warranty
