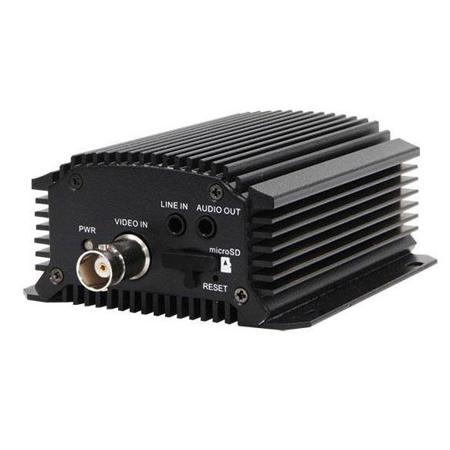

Hikvision 1-Channel Video Encoder
See all Hikvision items

Hikvision 1-Channel Video Encoder, H264, Dual Stream, 960H - 30fps, Audio -1/1, RS-485, Alarm I/O -1/1, 12VDC

SKU: HV6701HWI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision 1-Channel Video Encoder Specifications

  • Video Compression

    H.264 / MPEG4 / MPEG2 / MJPEG

  • Video input

    1-ch, BNC (1.0 Vp-p, 75 Ohms)

  • Audio Compression

    G.711u

  • Audio input

    1-ch, 3.5mm interface (2.0 Vp-p, 1 k Ohms) (LINE IN)

  • Two-way audio input

    1-ch, 3.5mm interface (2.0 Vp-p, 1 k Ohms) (LINE IN)

  • Audio output

    1-ch, 3.5mm interface (Linear, 600 Ohms)

  • Recording resolution

    WD1 / 4CIF / 2CIF / CIF / QCIF

  • Frame rate

    25 fps (P) / 30 fps/N

  • Video bit rate

    32 Kbps - 3072 Kbps, or user defined (Max. 8192 Mbps)

  • Audio bit rate

    64 Kbps

  • Dual-stream

    Support

  • Stream type

    Video, Video & Audio

  • Type

    NAS, iSCSI, IPSAN, MicroSD

  • Capacity

    Up to 4 TB capacity for each disk, and 32G for microSD storage

  • Network interface

    1 RJ-45 10 M / 100 Mbps adaptive Ethernet interface (PoE)

  • Protocols

    IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, Hik CGI, netFilter

  • Serial interface

    1 half-duplex RS-485 interface

  • Alarm in

    1

  • Alarm out

    1

  • Power supply

    12 VDC

  • Consumption

    = 5W

  • Working temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Working humidity

    10% - 90%

  • Dimensions

    3.1 x 1.5 x 3.5" (80 x 39 x 90 mm)

  • Weight

    = 1.1lbs (0.5 Kg)

  • UPC Code

    813908020328

About Hikvision 1-Channel Video Encoder

This video encoding unit lets you enter the digital age with analog equipment. It supports dual or single-stream video encoding, plus dedicated 3.5mm audio in/out and enabled full PTZ camera control. It can handle real-time H.264, MPEG-4, MPEG-2, and MJPEG compression in resolutions as high as WD1/960H (960 x 480) and frame rates as high as 30fps.

On top of all that, the encoder has alarm in/out connectivity, an RJ-45 Ethernet port, and it supports microSD storage as well as NAS, iSCSI, and IPSAN storage options.

• H.264/MPEG4/MPEG2/MJPEG encoding standards supported
• Up to WD1 real-time encoding
• One PoE network interface for DS-6701HWI models
• Connectable with network HDD in NAS, IPSAN mode
• Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.
• Multiple PTZ protocols

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision 1-Channel Video Encoder
  • Hikvision 3 Year Limited Warranty
