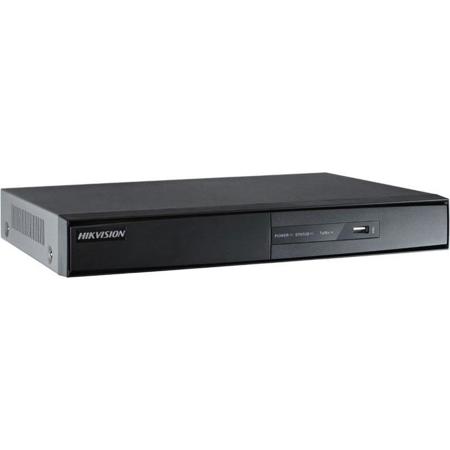

Hikvision DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR with 4TB HDD, H.264, 1-SATA

SKU: HV7204HGHIS4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the video compression format of the DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR?

The DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR uses H.264 and dual-stream video compression for efficient storage use.

Does this DVR support both HD-TVI and analog cameras?

Yes, the DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR supports both HD-TVI and analog cameras, offering adaptive access for versatile surveillance needs.

What is the resolution of the real-time recording?

The DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR offers full-channel real-time recording at a 720P resolution for detailed video capture.

What is the storage capacity of the DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR?

The DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR comes with a massive 4TB hard drive for ample surveillance footage storage.

What is the transmission distance over coax cable?

The DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR features a long transmission distance over coax cable, allowing for reliable performance even in large premises.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hikvision DS-7204HGHI-SH Specifications

  • Hard Drive

    4TB

  • Video compression

    H.264

  • Analog and HD-TVI video input

    4-ch BNC (1.0 Vp-p, 75 O), PAL / NTSC self-adaptive

  • Supported camera types

    720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS

  • Audio compression

    G.711u

  • Audio input / Two-way audio in

    4-ch, RCA (2.0 Vp-p, 1 KOhms)

  • HDMI / VGA output

    1920 x 1080 / 60 Hz,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • Encoding resolution

    Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
    Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA

  • Frame rate

    Main stream: 1/16 fps to Real time frame rate
    Sub-stream: 1/16 fps to Real time frame rate

  • Video bitrate

    32 Kbps to 6 Mbps

  • Video bitrate

    25 fps (P) / 30 fps /N

  • Audio output

    1-ch, RCA (Linear, 1kOhms)

  • Audio bitrate

    64 Kbps

  • Dual-stream

    Support

  • Stream type

    Video, Video & Audio

  • Synchronous playback

    4-ch

  • Playback resolution

    1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

  • Remote Connection

    128

  • Network protocols

    TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS

  • Hard disk Type

    4 SATA interfaces for 4 HDDs; eSATA interface

  • SATA

    SATA interface

  • Capacity

    Up to 4TB capacity for each disk

  • Network interface

    1; 10M / 100M self-adaptive Ethernet interface

  • Serial interface

    1; standard RS-485 serial interface, half-duplex

  • USB interface

    2x USB2.0

  • Alarm in

    4

  • Alarm out

    1

  • Power supply

    12 VDC

  • Consumption

    =15W

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    1U chassis

  • Dimensions (W x D x H)

    12.4 x 9.5 x 1.8" / 31.50 x 24.13 x 4.57cm

  • Weight

    = 1.5kg / 3.31lbs

About Hikvision DS-7204HGHI-SH

The DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR with 4TB HDD is a high-tech, sophisticated piece of surveillance equipment designed for optimal security monitoring. This advanced DVR system boasts H.264 and dual-stream video compression, ensuring efficient and reliable video recording with minimal storage space usage.

Designed to support both HD-TVI and analog cameras, it offers adaptive access, making it a versatile solution for various surveillance needs. Experience full-channel real-time recording at a 720P resolution, capturing every detail for comprehensive security coverage.

This efficient DVR system also features HDMI and VGA output capabilities, delivering high-definition video playback at resolutions up to 1920x1080P. This ensures you can review your surveillance footage with crystal-clear clarity, aiding in accurate incident analysis and response.

One of the standout features of this DVR is its long transmission distance over coax cable, allowing for flexible installation and reliable performance even in large premises.

With a massive 4TB hard drive, this DVR offers ample storage space for your surveillance footage, ensuring continuous recording without frequent data overwrites.

From the reputable brand Hikvision, the DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR with 4TB HDD is a reliable and advanced solution for your security surveillance needs.

Hikvision DS-7204HGHI-SH Features

  • High-tech 4-CH 720p Turbo HD Tribrid DVR for optimal security surveillance
  • Features H.264 and dual-stream video compression for efficient storage use
  • Supports both HD-TVI and analog cameras with adaptive access for versatile surveillance needs
  • Offers full-channel real-time recording at 720P resolution for detailed video capture
  • HDMI and VGA output at up to 1920x1080P resolution for high-definition video playback
  • Long transmission distance over coax cable for reliable performance in large premises
  • Massive 4TB hard drive for ample surveillance footage storage

Key Features

  • Capture clear surveillance video with this 4-channel 720p Turbo HD Tribrid DVR.
  • Enjoy ample storage with the pre-installed 4TB HDD for extended video recording.
  • Remotely access your Hikvision security video recorder via smartphone or tablet.
  • H.264 video compression maximizes recording time without sacrificing image quality.
  • Easily connect multiple camera types with versatile BNC analog and HD-TVI inputs.
  • Enhance your security system with reliable Hikvision surveillance and security accessories.

What's in the box:

  • Hikvision DS-7204HGHI-SH 4-CH 720p Turbo HD Tribrid DVR with 4TB HDD
  • Hikvision 3 Year Parts and Labor Warranty
