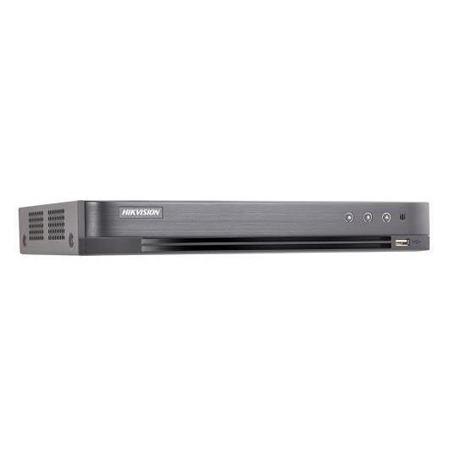

Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 1TB HDD, PoC Not Supported
See all Hikvision items

Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 1TB HDD, H.265+, H.265, H.264+, H.264, PoC Not Supported

SKU: HV7208HQIK21

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-11-11T08:01:06

Rated 4 out of 5

Great

Item works great

albert h.

Hikvision TurboHD 4.0 DVR Specifications

Video/Audio Input

Video/Audio Input

Jump to...

  • Video Compression

    H.265+/H.265/H.264+/H.264

  • Analog video Input

    8-channel
    BNC interface (1.0 Vp-p, 75Ohms), supporting coaxitron connection

  • HDTVI Input

    3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 (The 3MP signal input is only available for channel 1/2)

  • AHD Input

    1080p25, 1080p30, 720p25, 720p30

  • HDCVI Input

    1080p25, 1080p30, 720p25, 720p30

  • CVBS Input

    PAL/NTSC

  • IP video Input

    2-ch
    Up to 4MP resolution
    Supports H.265+/H.265/H.264+/H.264 IP cameras

  • Audio compression

    G.711u

  • Audio Input

    1-ch, RCA (2.0 Vp-p, 1kOhms)

Video/Audio Output

Jump to...

  • CVBS output

    1-ch, BNC (1.0 Vp-p, 75Ohms)

    Resolution:
    PAL: 704 x 576, NTSC: 704 x 480

  • HDMI/VGA output

    1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Encoding Resolution

    When 1080p Lite mode not enabled: 3MP/1080p/720p/VGA/WD1/4CIF/CIF
    When 1080p Lite mode enabled: 3MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:
    When 1080p Lite mode not enabled:
    For 3MP stream access: 3MP/1080p/720p/VGA/WD1/4CIF/CIF at 15fps
    For 1080p stream access: 1080p/720p at 15fps; VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)

    When 1080p Lite mode enabled:
    3MP at 15fps
    1080p lite/720p lite/VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)

    Sub-stream:
    WD1/4CIF at 12fps; CIF at 25fps (P)/30fps (N)

  • Video Bit Rate

    32Kbps to 6Mbps

  • Audio Output

    1-ch, RCA (Linear, 1kOhms)

  • Audio Bit Rate

    64Kbps

  • Dual Stream

    Support

  • Stream Type

    Video, Video & Audio

  • Playback Resolution

    3MP/1080p/720p/VGA/WD1/4CIF/CIF

  • Synchronous Playback

    8-ch

Network Management

Jump to...

  • Remote Connections

    128

  • Network Protocols

    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Hard Disk

Jump to...

  • SATA

    2x SATA interfaces

  • Capacity

    Up to 6TB capacity for each disk (1TB HDD preinstalled)

External Interface

Jump to...

  • Two-way Audio Input

    1-ch, RCA (2.0 Vp-p, 1kOhms) (using the 1st audio input)

  • Network Interface

    1x RJ45 10M/100M self-adaptive Ethernet interface

  • USB Interface

    2x USB 2.0

  • Serial Interface

    RS-485 (half-duplex)

General

Jump to...

  • Transmission Distance

    1080p: 800m (2624.64')
    720p HD-TVI: 1200m (3936.96')

  • Power Supply

    12VDC

  • Consumption

    Without HDD: <= 7.5W

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working Humidity

    10 to 90%

  • Dimensions (WxDxH)

    380 x 320 x 48mm (14.96 x 12.60 x 1.89")

  • Weight

    Without HDD: 3.9 lbs (1.77kg)

Other

Jump to...

  • UPC Code

    842571108941

About Hikvision TurboHD 4.0 DVR

Video Input and Transmission
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2-ch 4MP IP cameras input
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording
• H.265+/H.265/H.264+/H.264 encoding for the main stream and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Up to 3MP resolution for recording
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p

Video Output
• Simultaneous HDMI/VGA output
• Separate CVBS output

Storage and Playback
• 2x SATA Interfaces (1TB HDD preinstalled)
• 8-ch synchronous playback
• Smart search for efficient playback
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function
• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support 2-ch line crossing detection and intrusion detection
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• 1x RJ45 10M/100M Ethernet network interface
• Output bandwidth limit configurable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 1TB Preinstalled HDD
  • IR Remote Control
  • Hikvision 3 Year Parts and Labor Warranty
