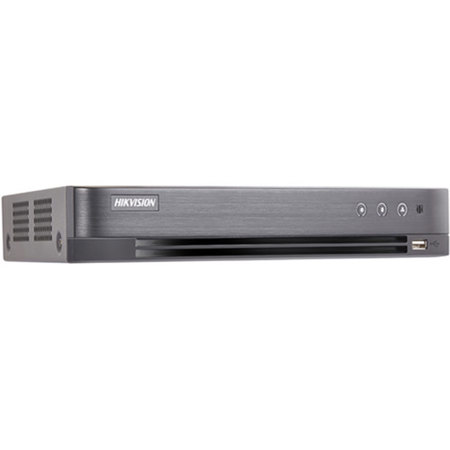

Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 2TB HDD, PoC Not Supported
See all Hikvision items

Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 2TB HDD, H.265+, H.265, H.264+, H.264, PoC Not Supported

SKU: HV7208HQIK22

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-11-11T08:01:06

Rated 4 out of 5

Great

Item works great

albert h.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision TurboHD 4.0 DVR Specifications

Video/Audio Input

Video/Audio Input

Jump to...

  • Video Compression

    H.265+/H.265/H.264+/H.264

  • Analog video Input

    8-channel
    BNC interface (1.0 Vp-p, 75Ohms), supporting coaxitron connection

  • HDTVI Input

    3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 (The 3MP signal input is only available for channel 1/2)

  • AHD Input

    1080p25, 1080p30, 720p25, 720p30

  • HDCVI Input

    1080p25, 1080p30, 720p25, 720p30

  • CVBS Input

    PAL/NTSC

  • IP video Input

    2-ch
    Up to 4MP resolution
    Supports H.265+/H.265/H.264+/H.264 IP cameras

  • Audio compression

    G.711u

  • Audio Input

    1-ch, RCA (2.0 Vp-p, 1kOhms)

Video/Audio Output

Jump to...

  • CVBS output

    1-ch, BNC (1.0 Vp-p, 75Ohms)

    Resolution:
    PAL: 704 x 576, NTSC: 704 x 480

  • HDMI/VGA output

    1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Encoding Resolution

    When 1080p Lite mode not enabled: 3MP/1080p/720p/VGA/WD1/4CIF/CIF
    When 1080p Lite mode enabled: 3MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:
    When 1080p Lite mode not enabled:
    For 3MP stream access: 3MP/1080p/720p/VGA/WD1/4CIF/CIF at 15fps
    For 1080p stream access: 1080p/720p at 15fps; VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)

    When 1080p Lite mode enabled:
    3MP at 15fps
    1080p lite/720p lite/VGA/WD1/4CIF/CIF at 25fps (P)/30fps (N)

    Sub-stream:
    WD1/4CIF at 12fps; CIF at 25fps (P)/30fps (N)

  • Video Bit Rate

    32Kbps to 6Mbps

  • Audio Output

    1-ch, RCA (Linear, 1kOhms)

  • Audio Bit Rate

    64Kbps

  • Dual Stream

    Support

  • Stream Type

    Video, Video & Audio

  • Playback Resolution

    3MP/1080p/720p/VGA/WD1/4CIF/CIF

  • Synchronous Playback

    8-ch

Network Management

Jump to...

  • Remote Connections

    128

  • Network Protocols

    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Hard Disk

Jump to...

  • SATA

    2x SATA interfaces

  • Capacity

    Up to 6TB capacity for each disk (2TB HDD preinstalled)

External Interface

Jump to...

  • Two-way Audio Input

    1-ch, RCA (2.0 Vp-p, 1kOhms) (using the 1st audio input)

  • Network Interface

    1x RJ45 10M/100M self-adaptive Ethernet interface

  • USB Interface

    2x USB 2.0

  • Serial Interface

    RS-485 (half-duplex)

General

Jump to...

  • Transmission Distance

    1080p: 800m (2624.64')
    720p HD-TVI: 1200m (3936.96')

  • Power Supply

    12VDC

  • Consumption

    Without HDD: <= 7.5W

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working Humidity

    10 to 90%

  • Dimensions (WxDxH)

    380 x 320 x 48mm (14.96 x 12.60 x 1.89")

  • Weight

    Without HDD: 3.9 lbs (1.77kg)

Other

Jump to...

  • UPC Code

    842571108958

About Hikvision TurboHD 4.0 DVR

Video Input and Transmission
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2-ch 4MP IP cameras input
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording
• H.265+/H.265/H.264+/H.264 encoding for the main stream and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Up to 3MP resolution for recording
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p

Video Output
• Simultaneous HDMI/VGA output
• Separate CVBS output

Storage and Playback
• 2x SATA Interfaces (2TB HDD preinstalled)
• 8-ch synchronous playback
• Smart search for efficient playback
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function
• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support 2-ch line crossing detection and intrusion detection
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• 1x RJ45 10M/100M Ethernet network interface
• Output bandwidth limit configurable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision TurboHD 4.0 8-Channel 2MP HD-TVI DVR with 2TB Preinstalled HDD
  • IR Remote Control
  • Hikvision 3 Year Parts and Labor Warranty
