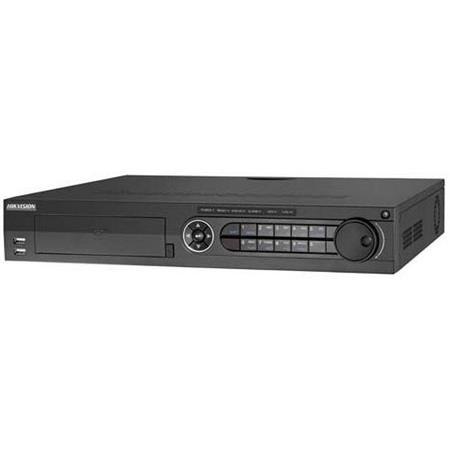

Hikvision DS-7308HQHI-SH 8-CH 1080p Turbo HD Tribrid DVR with 1TB HDD
See all Hikvision items

Hikvision DS-7308HQHI-SH 8-CH 1080p Turbo HD Tribrid DVR with 1TB HDD, H.264

SKU: HV7308HQHIS1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-14T12:15:59

Rated 5 out of 5

Do not waste you money or your time shopping elsewhere.

Great product, best price that I could find. Packaged real well and delivered fast..

EDWARD J.

Hikvision DS-7308HQHI-SH Specifications

  • Hard Drive

    1TB

  • Video compression

    H.264

  • Analog and HD-TVI video input

    8-ch BNC interface (1.0Vp-p, 75 O)

  • Supported camera types

    720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS

  • Audio compression

    G.711u

  • Audio input

    4-ch, RCA (2.0 Vp-p, 1 KOhms)

  • Two-way audio in

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • HDMI / VGA output

    1920 x 1080 / 60 Hz ,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • CVBS output

    1-ch, BNC (1.0 Vp-p, 75Ohms)
    Resolution: 704 x 576 (PAL); 704 x 480 (NTSC)

  • Encoding resolution

    Main stream: 1080P / 720P / VGA / 4CIF / CIF
    Sub-stream: WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF / QVGA

  • Frame rate

    Main stream: 1/16 fps to Real time frame rate
    Sub-stream: 1/16 fps to Real time frame rate

  • Video bitrate

    32 Kbps to 10 Mbps

  • Audio output

    2-ch, RCA (Linear, 1KOhms, for VGA output and CVBS output respectively)

  • Audio bitrate

    64 Kbps

  • Dual-stream

    Support

  • Stream type

    Video, Video & Audio

  • Synchronous playback

    16-ch

  • Playback resolution

    1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

  • Remote Connection

    128

  • Network protocols

    TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS

  • Hard disk Type

    4 SATA interfaces for 4 HDDs; eSATA interface

  • Capacity

    Up to 4TB capacity for each disk

  • Network interface

    1; 10M / 100M / 1000M self-adaptive Ethernet interface

  • Serial interface

    RS-232, RS-485, Keyboard

  • USB interface

    3x USB2.0

  • Alarm in

    16

  • Alarm out

    4

  • Power supply

    100-240VAC, 47 -63HZ

  • Consumption

    =40W

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19-inch rack-mounted 1.5U chassis

  • Dimensions (W x D x H)

    17.5 x 15.3 x 2.7" / 44.45 x 38.86 x 6.86cm

  • Weight

    5kg / 11.02lbs

  • UPC Code

    816783019142

About Hikvision DS-7308HQHI-SH

FEATURED REVIEWS

Do not waste you money or your time shopping elsewhere.

By EDWARD J.

Great product, best price that I could find. Packaged real well and delivered fast..

• H.264 & Dual-stream video compression
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with adaptive access
• Full channel@1080P resolution real-time recording
• HDMI and VGA output at up to 1920x1080P resolution
• Long transmission distance over coax cable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-7308HQHI-SH 8-CH 1080p Turbo HD Tribrid DVR with 1TB HDD
  • Hikvision 3 Year Parts and Labor Warranty
