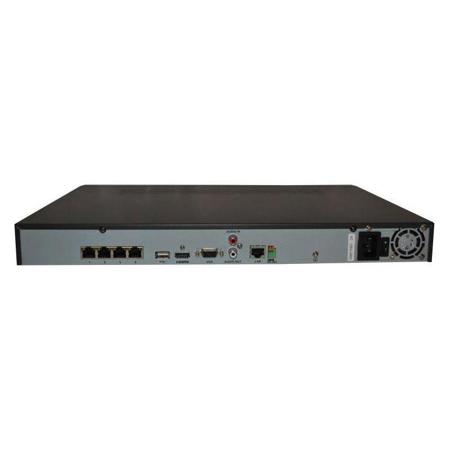

Hikvision DS-7604NI-E1/4P 4-CH Embedded Plug & Play NVR with 2TB HDD
See all Hikvision items

Hikvision DS-7604NI-E1/4P 4-CH Embedded Plug & Play NVR with 2TB HDD, Up to 5MP Recording Resolution, H.264, 1-SATA

SKU: HV7604NE14P2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-7604NI-E1/4P Specifications

  • Hard Drive

    2TB

  • IP video input

    4-ch

  • Two-way audio

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • Incoming bandwidth

    25Mbps

  • Outgoing bandwidth

    80Mbps

  • Remote Connection

    128

  • Recording resolution

    5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Frame rate

    Main stream: 50 fps (P) / 60 fps (N)
    Sub-stream: 50 fps (P) / 60 fps (N)

  • HDMI output

    1-ch, resolution: 1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz

  • VGA output

    1-ch, resolution: 1920 x 1080p /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz

  • Audio output

    1-ch, RCA (Linear, 1kOhms)

  • Live view / Playback resolution

    5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Decoding Capability

    4-ch at 1080P

  • SATA

    SATA interface for 1 HDD

  • eSATA

    Up to 4TB for each disk

  • Capacity

    Up to 4TB capacity for each HDD

  • Network interface

    RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

  • USB interface

    USB 2.0 and USB 3.0

  • Alarm in

    4

  • Alarm out

    1

  • PoE Interface

    4 independent 100 Mbps PoE network interfaces

  • PoE Max. Power

    50W

  • Supported standard

    AF and AT

  • Power supply

    48V DC

  • Consumption

    =10W

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    1U chassis

  • Dimensions (W x D x H)

    12.4 x 9.1 x 1.8" / 31.50 x 23.11 x 4.57cm

  • Weight

    = 1kg / 2.20lbs

About Hikvision DS-7604NI-E1/4P

• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920x1080P resolution
• 4/8/16-ch network cameras can be connected with 25M/50M/100M incoming bandwidth
• Up to 2 SATA interfaces
• Plug & Play with up to 8 independent PoE network interfaces
• Support network detection, including network delay, packet loss, etc

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-7604NI-E1/4P 4-CH Embedded Plug & Play NVR with 2TB HDD
  • USB Mouse
  • IR Remote (Batteries not Included)
  • Power Cord
  • HDD Mounting Screws and Brackets
  • HDD Cables -Quick Start Guide
  • Manual/Software CD
  • Hikvision 3 Year Parts and Labor Warranty
