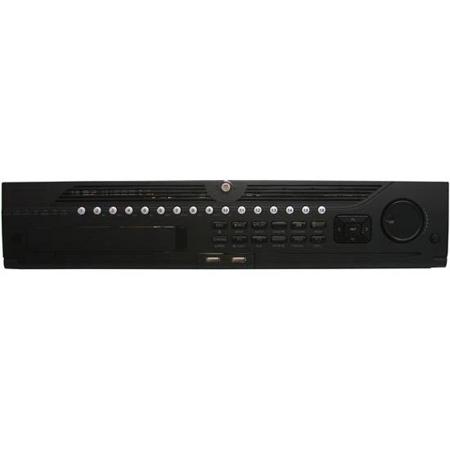

Hikvision DS-9016HQHI-SH 16-CH Tribrid DVR with 4TB HDD, Up to 5MP Resolution, H.264, 8-SATA

SKU: HV9016HQSH4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-9016HQHI-SH Specifications

  • Video compression

    H.264

  • Analog and HD-TVI video input

    16-ch, BNC interface (1.0Vp-p, 75 Ohms)

  • Supported camera types

    720P/25Hz, 720P/30 Hz, 720P/50 Hz, 720P/60 Hz, 1080P/25 Hz, 1080P/30 Hz, CVBS

  • IP video input

    18-ch(up to 32-ch), Up to 5MP resolution

  • Audio compression

    G.711u

  • Audio input

    16-ch RCA (2.0 Vp-p, 1 KOhms)

  • Two-way audio in

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • Incoming bandwidth

    260Mbps

  • Remote Connection

    128

  • Network protocols

    TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS

  • HDMI output

    1-ch; 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • VGA output

    1-ch; 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • CVBS output

    1-ch, BNC (1.0 Vp-p, 75Ohms)
    Resolution: 704 x 576 (PAL); 704 x 480 (NTSC)

  • Encoding resolution

    Main stream: 1080P / 720P / WD1/ VGA / 4CIF / CIF
    Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA

  • Frame rate

    Main stream: 1/16 fps to Real time frame rate
    Sub-stream: 1/16 fps to Real time frame rate

  • Video bitrate

    32 Kbps to 10 Mbps

  • Audio output

    2-ch, RCA (Linear, 1KOhms, for VGA output and CVBS output respectively)

  • Audio bitrate

    64 Kbps

  • Dual-stream

    Support

  • Stream type

    Video, Video & Audio

  • Synchronous playback

    16-ch

  • Playback resolution

    1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

  • Hard disk Type

    8 SATA interfaces for 8 HDDs; eSATA interface

  • Hard disk Capacity

    Up to 6TB capacity for each disk

  • eSATA

    eSATA interface

  • Network interface

    2; 10M / 100M / 1000M self-adaptive Ethernet interfaces

  • Serial interface

    RS-232, RS-485, Keyboard

  • USB port

    3x USB2.0

  • Alarm in / out

    16 / 4

  • Power supply

    100-240VAC, 47 -63HZ

  • Consumption

    =65W (without hard disks)

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19-inch rack-mounted 2U chassis

  • Dimensions (W x D x H)

    17.5 x 18.5 x 3.5" / 44.45 x 46.99 x 8.89cm

  • Weight

    = 8kg / 17.64lbs ( without hard disk or DVD-R/W )

About Hikvision DS-9016HQHI-SH

DS-9000HQHI-SH series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. The DS-9000HQHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

What's in the box:

  • Hikvision DS-9016HQHI-SH 16-CH Tribrid DVR with 4TB HDD
  • Hikvision 3 Year Parts and Labor Warranty
