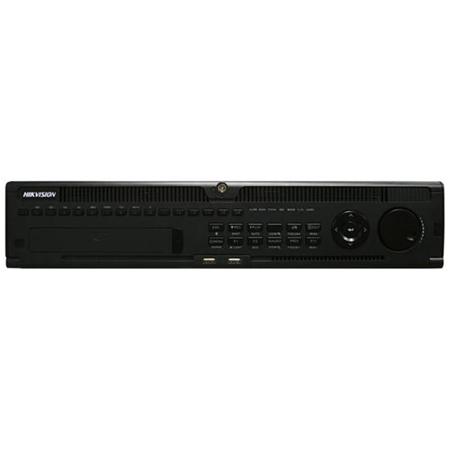

Hikvision DS-9632NI-I8 32-CH Embedded NVR (No HDD)
See all Hikvision items

Hikvision DS-9632NI-I8 32-CH Embedded NVR (No HDD), Up to 12MP Recording Resolution, H.265, H.264, MPEG4, 8-SATA

SKU: HV9632NII8

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-11-16T13:07:36

Rated 5 out of 5

Excellent Company

Excellent place ! Thank you very much.

DAVID D.

Hikvision DS-9632NI-I8 Specifications

  • IP video input

    32-ch

  • Two-way audio

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • Incoming bandwidth

    320 Mbps, or 200 Mbps (when RAID is enabled)

  • Outgoing bandwidth

    256 Mbps, or 200 Mbps (when RAID is enabled)

  • Remote connection

    128

  • Recording resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • VGA1 /HDMI1 output resolution

    HDMI1: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
    VGA1: 2K (2560 x 1440)/60Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • VGA2 /HDMI2 output resolution

    1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Audio output

    2-ch, RCA (2.0Vp-p, 1 KOhms)

  • Decoding format

    H.265/H.264/MPEG4

  • Decoding Live view / Playback resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Decoding Synchronous playback

    16-ch

  • Decoding Capability

    4-ch at 4K, or 16-ch at 1080p

  • Hard disk SATA

    8 SATA interfaces for 8HDDs

  • Hard Disk eSATA

    1 eSATA interface

  • Hard Disk Capacity

    Up to 6TB capacity for each HDD

  • Array type

    RAID0, RAID1, RAID5, RAID10

  • Number of arrays

    4

  • Network interface

    2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Serial interfaces

    RS-232; RS-485; Keyboard

  • USB interface

    Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0

  • Alarm in/out

    16/4

  • Power supply

    100 to 240 VAC, 50 to 60 Hz

  • Max. Power

    200 W

  • Consumption

    =30 W (without hard disk or DVD-R/W)

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19" rack-mounted 2U chassis

  • Dimensions (W x D x H)

    445 x 470 x 90mm / 17.52 x 18.50 x 3.54"

  • Weight

    <= 10kg / 22.05lbs (without hard disk)

  • UPC Code

    813908023626

About Hikvision DS-9632NI-I8

FEATURED REVIEWS

Excellent Company

By DAVID D.

Excellent place ! Thank you very much.

Professional and Reliable
• Dual-OS design to ensure high reliability of system running
• ANR technology to enhance the storage reliability when the network is disconnected
• HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable HD Input
• H.265/H.264+/H.264/MPEG4 video formats
• Connectable to the third-party network cameras
• Up to 64 IP cameras can be connected
• Recording at up to 12 MP resolution
• Supports live view, storage and playback of the connected camera at up to 12 MP resolution

HD Output
• HDMI1/VGA1 and HDMI2/VGA2 outputs provided
• HDMI1 Video output at up to 4K (3840 ½ 2160) resolution

HD Storage
• Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
• Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission
• 2 self-adaptive 10M/100M/1000M network interfaces and two working modes are configurable: multi-address and network fault tolerance

Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Supports HDD quota and group modes; different capacity can be assigned to different channels

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-9632NI-I8 32-CH Embedded NVR (No HDD)
  • Hikvision 3 Year Parts and Labor Warranty
