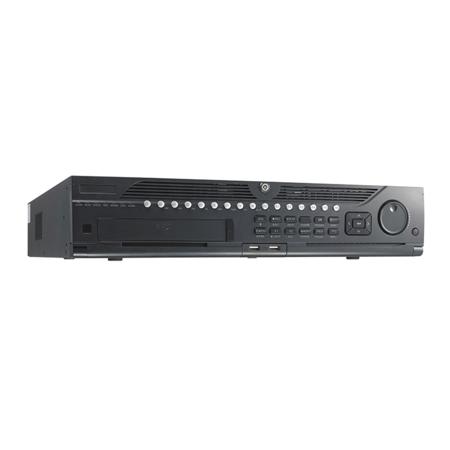

Hikvision DS-9664NI-I8 64-CH Embedded NVR (No HDD)
See all Hikvision items

Hikvision DS-9664NI-I8 64-CH Embedded NVR (No HDD), Up to 12MP Recording Resolution, H.265, H.264, MPEG4, 8-SATA

SKU: HV9664NII8

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision DS-9664NI-I8 Specifications

  • IP video input

    64-ch

  • Two-way audio

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • Incoming bandwidth

    320 Mbps, or 200 Mbps (when RAID is enabled)

  • Outgoing bandwidth

    256 Mbps, or 200 Mbps (when RAID is enabled)

  • Remote connection

    128

  • Recording resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • VGA1 /HDMI1 output resolution

    HDMI1: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
    VGA1: 2K (2560 x 1440)/60Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • VGA2 /HDMI2 output resolution

    1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Audio output

    2-ch, RCA (2.0Vp-p, 1 KOhms)

  • Decoding format

    H.265/H.264/MPEG4

  • Decoding Live view / Playback resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Decoding Synchronous playback

    16-ch

  • Decoding Capability

    4-ch at 4K, or 16-ch at 1080p

  • Hard disk SATA

    8 SATA interfaces for 8HDDs

  • Hard Disk eSATA

    1 eSATA interface

  • Hard Disk Capacity

    Up to 6TB capacity for each HDD

  • Array type

    RAID0, RAID1, RAID5, RAID10

  • Number of arrays

    4

  • Network interface

    2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Serial interfaces

    RS-232; RS-485; Keyboard

  • USB interface

    Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0

  • Alarm in/out

    16/4

  • Power supply

    100 to 240 VAC, 50 to 60 Hz

  • Max. Power

    200 W

  • Consumption

    =30 W (without hard disk or DVD-R/W)

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19" rack-mounted 2U chassis

  • Dimensions (W x D x H)

    445 x 470 x 90mm / 17.52 x 18.50 x 3.54"

  • Weight

    <= 10kg / 22.05lbs (without hard disk)

  • UPC Code

    813908023725

1 Accessories for Hikvision DS-9664NI-I8 64-CH Embedded NVR (No HDD), Up to 12MP Recording Resolution, H.265, H.264, MPEG4, 8-SATA

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Hikvision DS-9664NI-I8

Professional and Reliable
• Dual-OS design to ensure high reliability of system running
• ANR technology to enhance the storage reliability when the network is disconnected
• HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable HD Input
• H.265/H.264+/H.264/MPEG4 video formats
• Connectable to the third-party network cameras
• Up to 64 IP cameras can be connected
• Recording at up to 12 MP resolution
• Supports live view, storage and playback of the connected camera at up to 12 MP resolution

HD Output
• HDMI1/VGA1 and HDMI2/VGA2 outputs provided
• HDMI1 Video output at up to 4K (3840 ½ 2160) resolution

HD Storage
• Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
• Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission
• 2 self-adaptive 10M/100M/1000M network interfaces and two working modes are configurable: multi-address and network fault tolerance

Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Supports HDD quota and group modes; different capacity can be assigned to different channels

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-9664NI-I8 64-CH Embedded NVR (No HDD)
  • Hikvision 3 Year Parts and Labor Warranty
