Hikvision Panoramic 3MP WDR Vandal-Proof Fisheye Network Outdoor Camera with 1.9
See all Hikvision items

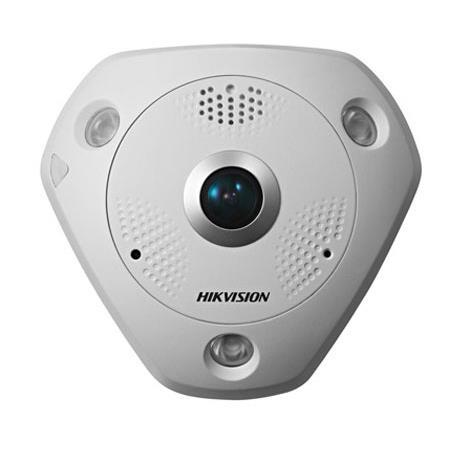

Hikvision Panoramic 3MP WDR Vandal-Proof Fisheye Network Outdoor Camera with 1.9mm Lens, Day/Night, IR, PoE/12VDC

SKU: HVCD6332FWIV

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision Outdoor Panoramic Camera Specifications

  • Image Sensor

    1/3.2" Progressive Scan CMOS

  • Signal System

    PAL/NTSC

  • Min. Illumination

    0.1 Lux at (F1.2, AGC ON), 0.28 Lux at (F2.0, AGC ON), 0 Lux with IR

  • Shutter Speed

    1/25(1/30)s - 1/100,000s

  • Slow Shutter

    Support

  • Lens

    1.19mm, F2.0; Angle of view: 180Degree (wall mount), 360Degree (ceiling mount)

  • Lens Mount

    M12

  • Day & Night

    ICR

  • Video Compression

    H.264 /MJPEG

  • H.264 Type

    Baseline Profile / Main Profile / High Profile

  • Video Bit Rate

    32 Kbps 16 Mbps

  • Audio Compression

    G.711/G.726/MP2L2

  • Audio Bit Rate

    64Kbps (G.711) / 16Kbps (G.726) /64Kbps (MP2L2)

  • Max. Resolution

    2048 x 1536

  • Frame Mode 1

    50Hz: 1xfisheye (1536x1536 ,20fps), 1xpanoramic (1600x1200, 20fps), 3xPTZ (800x600, 20fps)
    60Hz: 1xfisheye (1536x1536, 20fps), 1xpanoramic (1600x1200, 20fps), 3xPTZ (800x600, 20fps)

  • Frame Mode 2

    50Hz: 1xfisheye (2048x1536/1536x1536, 25fps) or 4xPTZ (800x600, 25fps)
    60Hz: 1xfisheye (2048x1536/1536x1536, 30fps) or 4xPTZ (800x600, 30fps)

  • Frame Mode 3

    50Hz: 1xFisheye(1536x1536, 25fps) + 1xFisheye(720x720, 25fps) + 3xPTZ(800x600, 12.5fps)
    60Hz: 1xFisheye(1536x1536, 30fps) + 1xFisheye(720x720, 30fps) + 3xPTZ(800x600, 15fps)

  • Frame Mode 4

    50Hz: 1xPanorama(1600x1200(ceiling, table, wall mount)/1600x600(wall mount)/1280x720(ceiling mount, wall mount), 25fps) + 1xPanorama(704x576, 25fps)
    60Hz: 1xPanorama(1600x1200(ceiling, table, wall mount)/1600x600(wall mount)/1280x720(ceiling mount, wall mount), 30fps) + 1xPanorama(704x576, 30fps)

  • Number of Streams

    High Frame Rate Mode: 1 or 4
    Multi-Channel: up to 5
    (No sub-streams)

  • Digital Noise Reduction

    3D DNR

  • Image Setting

    Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance

  • Wide Dynamic Range

    120dB

  • Day/Night Switch

    Auto/Schedule/Alarm Trigger

  • ROI

    Up to 4 fixed areas in each stream

  • Network Storage

    NAS (Support NFS,SMB/CIFS)

  • Alarm Trigger

    Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full, storage error

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Security

    User Authentication, Watermark, IP address filtering, Anonymous access

  • Standard

    ONVIF, PSIA, CGI

  • Communication Interface

    e 1 RJ45 10M/100M/1000M Ethernet port

  • Audio Input

    1 3.5mm audio interface, Mic in/Line in (-S); 1 built-in microphone by default, 24db

  • Audio Output

    1 3.5mm audio output interface (-S); 1 built-in speaker by default, support echo cancellation

  • Alarm Input (-s)

    1

  • Alarm Output (-S)

    1

  • On-board Storage

    Built-in Micro SD/SDXC slot, up to 64 GB

  • Operating Conditions

    Minus 10 Degree C 60 Degree C (14 Degree F 140 Degree F)
    Humidity 95% or less (non-condensing)

  • Power Supply

    DC12V 10% / PoE

  • Power Consumption

    Max. 11W

  • IR Range

    Max. 49' (15m)

  • Impact Protection

    -V: IEC60068-2-75Eh, 20J; EN50102, up to IK10

  • Ingress Protection Level

    -V: IP66

  • Dimensions

    6.46 x 6.02 x 1.72" (164 x 152.8 x 43.8mm)

  • Weight

    3 lbs (1400g)

  • UPC Code

    816783018091

About Hikvision Outdoor Panoramic Camera

Hikvision's great brand reputation is based on the high quality of their surveillance solutions, and this outdoor panoramic camera is no exception. With a whole host of smart functions and helpful features, the unit will help you keep a watchful eye on what's important to you, rain or shine.

The 3MP progressive-scan CMOS sensor is aided by digital noise reduction and a panoramic lens to provide a wide-angle image that's clear and crisp, with the capability to sense changes in lighting conditions and adjust automatically. For night vision, a smart-IR configuration gives the camera a capture range of more than 30 feet, and it senses on its own when night mode is necessary.

The camera's housing is rated for weatherproofing to IP66 standards, meaning it can withstand wind and rain without any issue, as well as temperatures between -22 and +140 and humidity levels as high as 95%. It also boasts some solid security features, such as alarms for intrusion, motion-detection, tampering, and audio disruption, and requires user authentication for any sort of information access to keep your footage and files safe.


• 1/3" Progressive-scan CMOS sensor

• Multi-streaming supported

• Backlight compensation, auto gain control, white balance enhancements

• User authentication security

• ONVIF-compliant

• 3D digital noise reduction to eliminate image grain, ghosting, and blur

• Integrated microSD (supports up to 64GB of onboard storage)

• Fixed fisheye/pano lens

• 3MP image sensor

• Multiple viewing modes

• Virtual PTZ

• 15-meter IR night vision range

• Built-in microphone and speaker

• Impact-resistant

• Weatherproof (IP66 rating)

Hikvision Outdoor Panoramic Camera Features

  • 1/3" progressive scan CMOS
  • 3 mega-pixel image sensor
  • Up to 1536 x 1536 resolution, 30fps
  • 360Degree panoramic view
  • Multiple viewing modes
  • Virtual PTZ
  • Up to 15m IR range
  • Built-in microphone and speaker
  • Vandal-proof

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Virtual PTZ
  • Up to 15m IR range
  • Vandal-proof
  • IP66 weatherproof rating
  • Built-in microphone and speaker
  • Supports multi-streaming

What's in the box:

  • Hikvision Panoramic 3MP WDR Vandal-Proof Fisheye Network Outdoor Camera with 1.9mm Lens
  • Hikvision 3 Year Limited Warranty
