Hikvision 3MP Network IR PTZ Dome Camera with 36x Optical Zoom Lens Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Min. Illumination

    F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux , 0 lux with IR

  • Effective Pixels

    2048 x 1536

  • Horizontal Resolution

    2048

  • Signal System

    PAL/NTSC

  • Focal Length

    4.5-162mm, 36x

  • Digital Zoom

    16X

  • Zoom Speed

    Approx.3.3s(Optical Wide-Tele)

  • Angle of View

    60.6-3.68 degree (Wide-Tele)

  • Min. Working Distance

    10-1500mm(Wide-Tele)

  • Aperture Range

    F1.6 - F4.4

  • Focus Mode

    Auto / Semiautomatic / Manual

  • WDR

    120dB

  • S / N Ratio

    55dB

  • BLC

    On/Off

  • HLC

    Support

  • Smart defog

    Support

  • Shutter Time

    50Hz: 1 - 1/30,000s; 60Hz: 1 - 1/30,000s

  • AGC

    Auto / Manual

  • White Balance

    Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

  • Day & Night

    IR Cut Filter

  • Privacy Masking

    24 privacy masks programmable; optional multiple colors and mosaics

  • Enhancement

    3D DNR, Defog, HLC/BLC, SVC

  • Range

    Pan:360 Degree endless; Tilt: -20 Degree - 90 Degree(Auto Flip)

  • Speed

    Pan Manual Speed: 0.1 Degree - 160 Degree/s, Pan Preset Speed: 240 Degree/s
    Tilt Manual Speed: 0.1 Degree - 120 Degree /s, Tilt Preset Speed: 200 Degree/s

  • Number of Preset

    300

  • Patrol

    16 patrols, up to 32 presets per patrol

  • Pattern

    10 patterns, with the recording time not less than 10 minutes per pattern

  • Park Action

    Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • Smart-tracking

    Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
    Smart tracking when patrol between multiple scenarios

  • Smart detection

    Face detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection

  • IR Distance

    Up to 200m

  • IR Intensity

    Automatically adjusted, depending on the zoom ratio

  • Alarm I/O

    7/2

  • Alarm Trigger

    Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Alarm Action

    Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

  • Monitor Output

    1.0V[p-p] / 75OHMS, NTSC (or PAL) composite, BNC

  • Audio Input

    1 Mic in/Line in interface
    Line input: 2-2.4V[p-p]; output impedance: 1K Ohms, 10%

  • Audio Output

    1 Audio output interface
    Line level, impedance: 600 Ohms

  • Ethernet

    10Base-T / 100Base-TX, RJ45 connector

  • Max.Image Resolution

    1920x1080

  • Frame Rate

    50Hz: 50fps(2048x1536, 1920x1080), 25fps(1280x720)
    60Hz: 60fps(2048x1536, 1920x1080), 30fps(1280x720)

  • Main Stream

    50Hz: 25fps(2048x1536), 25fps(1920x1080), 25fps (1280x720) / 50fps(2048x1536), 50fps(1920x1080)
    60Hz: 30fps(2048x1536), 30fps(1920x1080), 30fps (1280x720) / 60fps(2048x1536), 60fps(1920x1080)

  • Sub Stream

    50Hz: 25fps(704x576, 352x288, 176x144); 60Hz: 30fps(704x480, 352x240, 176x120)

  • Third Stream

    50Hz:25fps(2048x1536), 25fps(1920x1080), 25fps (1280x720), 25fps(704x576), 25fps (352x288), 25fps (176x144)
    60Hz: 30fps(2048x1536), 30fps(1920x1080), 30fps (1280x720), 30fps(704x480), 30fps (352x240), 30fps (176x120)

  • Image Compression

    H.264/MJPEG, H.264 encoding with Baseline/Main/High profile

  • ROI encoding

    Support 24 areas with adjustable levels

  • Audio Compression

    G.711ulaw/G.711alaw/G.726/MP2L2/G.722

  • Audio Mode

    OFF/Audio input/Audio output

  • Protocols

    IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

  • Simultaneous Live View

    Up to 20 users

  • Dual Stream

    Support

  • Three-Stream

    Support

  • Mini SD Card

    Manual REC / Alarm REC
    Built-in SD/SDHC Slot, up to 64GB
    Edge recording

  • User/Host Level

    Up to 32 users,3 Levels: Administrator, Operator and User

  • Security Measures

    User authentication (ID and PW); Host authentication (MAC address); IP address filtering

  • Application programming

    Open-ended API, support ONVIF, PSIA, CGI and Genetic

  • Web Browser

    IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language

  • RS-485 Protocols

    Hikvision, Pelco-P, Pelco-D, self-adaptive

  • Menu Language

    English

  • Power

    High-PoE&24 VAC, Max.60W

  • Working Temperature

    Minus 40 Degree C - 65 Degree C (Minus 40 Degree F - 149 Degree F)

  • Humidity

    90% or less

  • Protection Level

    IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection

  • Certification

    FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1

  • Weight (approx.)

    17.6 lb (8.0kg) approximately

  • Dimensions

    Diameter 10.5 x 14.4"(Diameter 266.6 x 365.2mm)

  • UPC Code

    813908020816

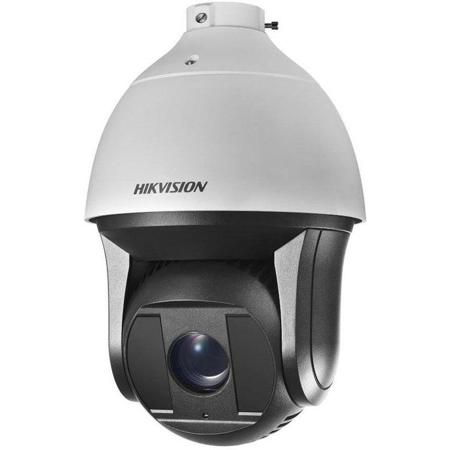

About Hikvision 3MP Network IR PTZ Dome Camera with 36x Optical Zoom Lens

This Hikvision smart PTZ Dome Camera is able to capture high quality images of fast moving objects with its high frame rate technology (up to 60fps at 3MP). Embedded with a 1/3" progressive scan CMOS chip, the camera makes true WDR (120dB) and 2MP real-time resolution possible. With the 36x optical zoom day/night lens, the camera offers more detailed coverage over more expansive areas.

The camera also features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvements on security efficiency--and more importantly, with key events / objects being recorded for any further forensic needs. And thanks to the internal heating element, the camera can defog itself to combat changing temperature and humidity levels, making it truly outdoor-capable for year-round use. These features combine with progressive tracking, which allows the camera to follow moving objects and maintain focus and lighting balance, to give you a camera that will help keep a watchful eye on whatever is important to you.

Hikvision 3MP Network IR PTZ Dome Camera with 36x Optical Zoom Lens Features

  • 3MP(2048 x 1536) resolution
  • High frame rate, up to 60fps@3MP
  • 36X Optical Zoom
  • 120dB True WDR
  • Smart Tracking
  • Smart Detection
  • Defog
  • Hi-PoE / 24VAC power supply

Key Features

  • 36X Optical Zoom
  • 120dB True WDR
  • Smart Tracking
  • Smart Detection
  • Defog
  • Onboard storage

What's in the box:

  • Hikvision 3MP Network IR PTZ Dome Camera with 36x Optical Zoom Lens
  • Hikvision Limited 3 Year Warranty
