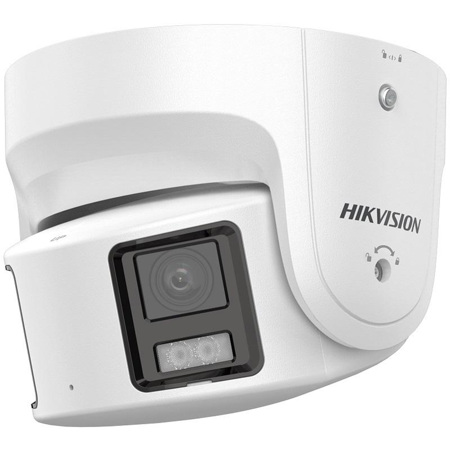

Hikvision 8MP Panoramic ColorVu Fixed Outdoor Network Turret Camera, 4mm Lens
See all Hikvision items

Hikvision 8MP Panoramic ColorVu Fixed Outdoor Network Turret Camera, Built-In Mic, 4mm Lens

SKU: HVDS2CD2387G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CE56D8T-ITM: Picture 1 regular
Hikvision DS-2CE56D8T-ITM 2MP HD Ultra-Low Light IR Turret Camera, 2.8mm Lens
$139.00$111.00
Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision Turret Camera Specifications

Camera

Camera

Jump to...

  • Image Sensor

    2x 1/1.8" Progressive ScancmOS

  • Max. Resolution

    5120 x 1440

  • Min. Illumination

    Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

  • Shutter Time

    1/3 s to 1/100,000 s

  • Angle Adjustment

    Pan: -30 to 30 Degree
    Tilt: -75 to 75 Degree

Lens

Jump to...

  • Lens Type

    Fixed focal lens, Dual lens: 4mm

  • Focal Length & FOV

    Horizontal FOV: 180 Degree +/- 10 Degree
    Vertical FOV: 44 Degree

  • Lens Mount

    M16

  • Iris Type

    Fixed

  • Aperture

    f/1.0

  • Depth of Field

    3.6 m to Infinite

DORI

Jump to...

  • DORI

    4 mm, D: 77m, O: 30m, R: 15m, I: 7m

Illuminator

Jump to...

  • Supplement Light Type

    White light

  • Supplement Light Range

    Up to 40m

  • Smart Supplement Light

    Yes

Video

Jump to...

  • Main Stream

    When WDR is On:
    50Hz: 12.5 fps (5120 x 1440)
    60Hz: 15 fps (5120 x 1440)
    When WDR is Off:
    50Hz: 20 fps (5120 x 1440)
    60 Hz: 20 fps (5120 x 1440)

  • Sub-Stream

    When WDR is On:
    50Hz: 12.5 fps (1920 x 536, 960 x 272)
    60Hz: 15 fps (1920 x 536, 960 x 272)
    When WDR is Off:
    50Hz: 20 fps (1920 x 536, 960 x 272)
    60Hz: 20 fps (1920 x 536, 960 x 272)

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264

  • Video Bit Rate

    32Kbps to 16Mbps

  • H.264 Type

    Baseline Profile/Main Profile/High Profile

  • H.265 Type

    Main Profile

  • Bit Rate Control

    CBR/VBR

  • Scalable Video Coding (SVC)

    H.265 and H.264 encoding

  • Region of Interest (ROI)

    1 fixed region for main stream and sub-stream

Audio

Jump to...

  • Audio Type

    Mono sound

  • Audio Compression

    G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC

  • Audio Bit Rate

    64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

  • Audio Sampling Rate

    8kHz/16kHz/32kHz/44.1kHz/48kHz

  • Environment Noise Filtering

    Yes

Network

Jump to...

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

  • Simultaneous Live View

    Up to 6 channels

  • API

    Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

  • User/Host

    Up to 32 users. 3 user levels: administrator, operator and user

  • Security

    Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2,WSSE and digest authentication for Open Network Video Interface

  • Network Storage

    NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Client

    iVMS-4200, Hik-Connect, Hik-Central

  • Web Browser

    Plug-in required live view: IE 10, IE 11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Local service: Chrome 57.0+, Firefox 52.0+


Jump to...

  • Image Parameters Switch

    Yes

  • Image Settings

    saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

  • Day/Night Switch

    Day, Night, Auto, Schedule

  • Wide Dynamic Range (WDR)

    130 dB

  • SNR

    >= 52 dB

  • Image Enhancement

    BLC, HLC, 3D DNR

Interface

Jump to...

  • Ethernet Interface

    1 RJ45 10m/100m self-adaptive Ethernet port

  • On-Board Storage

    Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256GB

  • Built-in Microphone

    Yes

  • Built-in Speaker

    Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB

  • Audio

    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K Ohm, interface type: non-equilibrium,
    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium

  • Alarm

    1 input, 1 output (max. 24VDC, 1A)

  • Reset Key

    Yes

Event

Jump to...

  • Basic Event

    Motion detection (human and vehicle targets classification), video tampering alarm, exception

  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
    Scene change detection

  • Linkage

    Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible Warning, trigger alarm output

Deep Learning Function

Jump to...

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

Approval

Jump to...

  • EMC

    FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
    RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006

  • Protection

    IP67: IEC 60529-2013

General

Jump to...

  • Power

    12 VDC +/- 25%, 0.79 A, max. 9.5 W, 5.5 mm coaxial power plug,
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5W

  • Storage Conditions

    -22 to 140 Degree F (-30 to 60 Degree C) Humidity 95% or less (non-condensing)

  • Startup and Operating Conditions

    -22 to 140 Degree F (-30 to 60 Degree C) Humidity 95% or less (non-condensing)

  • Language

    33 languages
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General Function

    Anti-flicker, heartbeat,mirror, privacy mask, flash log, password reset via email, pixel counter

  • Dimensions

    6.1 x 6.1" (155 x 155.3mm)

  • Weight

    2.4 lbs (1.11kg) (Approx.)

About Hikvision Turret Camera

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Hikvision Turret Camera Features

  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning

What's in the box:

  • Hikvision 8MP Panoramic ColorVu Fixed Outdoor Network Turret Camera
  • Hikvision 3 Year Limited Warranty
