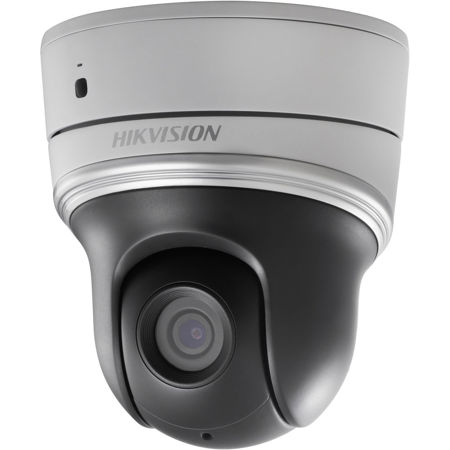

Hikvision 2MP Network Wi-Fi PTZ Dome Camera with 66' IR Night Vision
See all Hikvision items

Hikvision 2MP Network Wi-Fi PTZ Dome Camera with 66' IR Night Vision, 2x Optical Zoom, 30 fps, PoE

SKU: HVDS2DE2DE3W

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hikvision Dome Camera Specifications

Camera

Camera

Jump to...

  • Image Sensor

    1/2.8" progressive scan CMOS

  • Min. Illumination

    Color: 0.05 Lux at (F2.0, AGC ON)
    B/W: 0.005 Lux at (F2.0, AGC ON)
    0 Lux with IR

  • White Balance

    Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

  • AGC

    Auto/Manual

  • Shutter Time

    1/1 s to 1/30,000 s

  • Day & Night

    IR Cut Filter

  • Digital Zoom

    4x

  • Privacy Mask

    8 programmable privacy masks

  • Focus Mode

    Auto/Semi-automatic/Manual

  • Digital WDR

    Support

Lens

Jump to...

  • Focal Length

    2.8 mm to 6 mm, 2x optical

  • Zoom Speed

    Approx. 2 s (optical lens, wide-tele)

  • FOV

    Horizontal field of view: 100 deg. to 25 deg. (wide-tele)
    Vertical field of view: 56.3 deg. to 14.1 deg. (wide-tele)
    Diagonal field of view: 114.7 deg. to 28.7 deg. (wide-tele)

  • Working Distance

    10 mm to 1500 mm (wide-tele)

  • Aperture Range

    F1.8 to F2.5

IR

Jump to...

  • IR Distance

    Up to 20 m

  • IR Intensity

    Automatically adjusted, depending on the zoom ratio

PTZ

Jump to...

  • Movement Range (Pan)

    350 deg.

  • Pan Speed

    Configurable, from 0.1 deg./s to 60 deg./s
    Preset Speed: 60 deg./s

  • Movement Range (Tilt)

    From 0 deg. to 90 deg.

  • Tilt Speed

    Configurable, from 0.1 deg./s to 50 deg./s
    Preset Speed: 50 deg./s

  • Proportional Zoom

    Support

  • Presets

    300

  • Patrol Scan

    8 patrols, up to 32 presets for each patrol

  • Pattern Scan

    4 pattern scans, record time over 10 minutes for each scan

  • Power-off Memory

    Support

  • Park Action

    Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

  • PTZ Position Display

    Support

  • Preset Freezing

    Support

  • Scheduled Task

    Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Compression Standard

Jump to...

  • Video Compression

    Main Stream: H.265+/H.265/H.264+/H.264
    Sub-Stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264/MJPEG

  • H.264 Type

    Baseline Profile/Main Profile/High Profile

  • H.264+

    Support

  • H.265 Type

    Main Profile

  • H.265+

    Support

  • Video Bitrate

    32 Kbps to 16384 Kbps

Smart Feature

Jump to...

  • Basic Event Detection

    Motion Detection, Video Tampering Detection

  • Smart Event Detection

    Intrusion Detection, Line Crossing Detection, Audio Exception Detection

  • ROI encoding

    Main stream, sub-stream and third stream respectively support two fixed areas.


Jump to...

  • Max. Resolution

    1920 x 1080

  • Main Stream

    50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720) & 50fps (1280 x 960, 1280 x 720)
    60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720) & 60fps (1280 x 960, 1280 x 720)

  • Sub-Stream

    50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
    60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)

  • Third Stream

    50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
    60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)

  • Image Enhancement

    HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus

  • SVC

    Support

Network

Jump to...

  • Network Storage

    Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR

  • Alarm Linkage

    Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

  • Protocols

    IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

  • API

    Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform

  • Simultaneous Live View

    Up to 20 channels

  • User/Host

    Up to 32 users
    3 levels: Administrator, Operator and User

  • Security Measures

    User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IP address filtering

  • Client

    iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

  • Web Browser

    IE 8+, Firefox 30+, Safari 8.0+ web browser

  • Wi-Fi

    Support

Interface

Jump to...

  • Alarm Input

    1-ch alarm input

  • Alarm Output

    1-ch alarm output

  • Audio Input

    1-ch audio input

  • Audio Output

    1-ch audio output

  • Network Interface

    1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)

General

Jump to...

  • Power

    12 VDC and PoE+ (802.3at, class4)
    Max.: 9 W (IR light 3 W Max.)

  • Working Environment

    Working Temperature: -10 to 50 deg. C (14 to 122 deg. F)
    Working Humidity: <= 90%

  • Protection Level

    TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

  • Material

    ADC12 PC + ABS SUS304 POM

  • Dimensions

    Dia.: 125 x 136.7mm (4.92 x 5.38")

  • Weight

    Approx. 1.43 lbs (0.65kg)

Other

Jump to...

  • UPC Code

    842571110043

About Hikvision Dome Camera

Hikvision DS-2DE2204IW-DE3/W 2MP 4x Network IR Wi-Fi PTZ Camera adopts 1/2.8" progressive scan CMOS chip. With the 2x optical zoom lens, the camera offers more details in the indoor environments. This series of cameras feature a wide range of functions, including intrusion detection, line crossing detection, audio exception detection, motion detection and video tampering detection, benefitting users with great improvement on security efficiency.

Hikvision Dome Camera Features

  • 1/2.8" progressive scan CMOS
  • Up to 1920 x 1080 resolution
  • Min. illumination: Color: 0.05 Lux at (F2.0, AGC ON) & B/W: 0.005 Lux at (F2.0, AGC ON); 0 Lux with IR
  • 2x optical zoom, 16x digital zoom
  • Digital WDR, 3D DNR, HLC, BLC, Smart IR
  • Up to 20 m IR distance
  • 12 VDC & PoE+ (802.3at, class4)
  • Support Wi-Fi
  • Support H.265+/H.265

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision 2MP Network Wi-Fi PTZ Dome Camera
  • Hikvision 3 Year Parts and Labor Warranty
