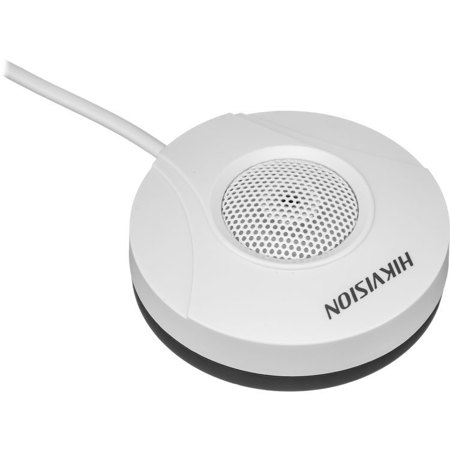

Hikvision DS-2FP2020 Hi-Fi External Microphone for CCTV Camera
See all Hikvision items

Hikvision DS-2FP2020 Hi-Fi External Microphone for CCTV Camera, 70 sq. m Pickup Range

SKU: HVDS2FP2020
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision DS-2FP2020 Specifications

  • Pickup Range

    70 sq.m

  • Audio Transmission Distance

    10000' (3000m)

  • Sensitivity

    -34dB

  • Frequency Response

    20Hz-20KHz

  • Directivity Characteristics

    Omnidirectional

  • SNR

    60dB (1m40 dB audio tone SPL)
    40dB(10m 40 dB audio tone SPL) 1KHz at 1 Pa

  • Dynamic Range

    70dB (1KHz at Max dB SPL)

  • Maximum Sound Pressure

    100dB SPL (1KHz, THD 1%)

  • Output Impedance

    600 ohm unbalanced

  • Output Signal Amplitude

    2.5Vpp/-25dB

  • Microphones

    Capacitor microphone diaphragm

  • The Signal Processing Circuit

    ANC ambient noise cancellation technology

  • Protective Circuit

    30KV Air contact ESD, lightning protection, reverse polarity protection

  • Drive Capability

    Built-in pre-amplifier circuit can directly drive headphones

  • Connection Mode

    3 wires (Power, Audio out, GND)

  • Transmission Cable

    3-core shielded cable 0.5 sq. mm RVVP

  • Supply Voltage

    DC 12V (9V-15V)

  • Supply Current

    Max 25mA

  • Working Temperature

    -13 Degree F - 158 Degree F (-25 Degree C - 70 Degree C)

  • Installation Mode

    Fixed Pedestal Mounting

  • Color

    White/Blue

  • Shell Material

    PVC

  • External Size

    3.07 x 1.10" (78 x 28mm)

  • Weight

    0.13 lb (60g)

  • UPC Code

    842571117547

About Hikvision DS-2FP2020

HIKVision HI-FI Microphone for CCTV, 70 sq m pickup range, 3000m audio transmission distance, reverse polarity protection and electrostatic protection, ANC ambient noise cancellation technology, 3 wires connection mode, 3-core shielded cable 0.5 sq. mm RVVP transmission cable, 12VDC.

Hikvision DS-2FP2020 Features

  • High sensitivity omnidirectional capacitor microphone, omnidirectional pickup sound clearly and naturally
  • Built-in lightning protection, reverse polarity protection and electrostatic protection
  • RoHS compliant, without hazardous substances banned by the EU
  • Compliant with EU CE standards, US FCC certification

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Built-in lightning protection, reverse polarity protection and electrostatic protection
  • RoHS compliant, without hazardous substances banned by the EU
  • Compliant with EU CE standards, US FCC certification

What's in the box:

  • DS-2FP2020 Hi-Fi External Microphone for CCTV Camera
  • Hikvision 3 Year Limited Warranty
