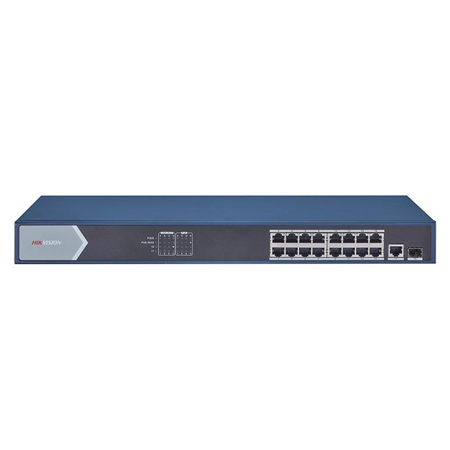

Hikvision DS-3E0518P-E 16-Port Gigabit PoE Unmanaged Switch
See all Hikvision items

Hikvision DS-3E0518P-E 16-Port Gigabit PoE Unmanaged Switch

SKU: HVDS3E0518PE

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hikvision DS-3E0518P-E Specifications

Network Parameters

Network Parameters

Jump to...

  • Ports

    16x Gigabit PoE ports, 1x Gigabit RJ45 port, and 1x Gigabit fiber optical port

  • Port Type

    RJ45 port, full duplex, MDI/MDI-X adaptive

  • Standard

    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

  • Forwarding Mode

    Store-and-forward switching

  • MAC Address Table

    8K

  • Switching Capacity

    36Gbps

  • Packet Forwarding Rate

    26.784 Mpps

  • Internal Cache

    4.1Mbits

PoE Power Supply

Jump to...

  • PoE Standard

    IEEE 802.3af, IEEE 802.3at

  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

  • PoE Port

    Ports 1 to 16

  • Max. Port Power

    30W

  • PoE Power Budget

    230W

Approval

Jump to...

  • EMC

    FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 11)

  • Safety

    UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2021)

  • Chemistry

    CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2010)

General

Jump to...

  • Material

    Shell: Metal

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    5% to 95% (no condensation)

  • Storage Temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Storage Humidity

    5% to 95% (no condensation)

  • Power Consumption In Idle

    20W

  • Power Supply

    100 to 240VAC, 50/60Hz, Max. 4A

  • Max. Power Consumption

    250W

Physical

Jump to...

  • Dimensions (W x H x D)

    17.3 x 1.7 x 8.7" (440 x 44 x 220.8mm)

  • Weight

    5.89 lbs (2.67kg)

About Hikvision DS-3E0518P-E

The DS-3E0518P-E is an unmanaged Gigabit PoE switch that requires no configuration and contains up to 24 gigabit ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras.

Hikvision DS-3E0518P-E Features

  • Layer 2 network switch designed for video data transmission
  • 16x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1x 10/100/1000 Mbps uplink SFP port
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
  • IEEE 802.3 af & at high POE power supply Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Layer 2 network switch designed for video data transmission
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
  • IEEE 802.3 af & at high POE power supply Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience

What's in the box:

  • Hikvision DS-3E0518P-E 16-Port Gigabit PoE Unmanaged Switch
  • Hikvision 3 Year Limited Warranty
