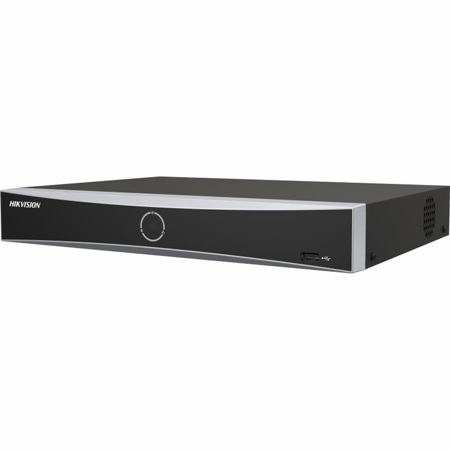

Hikvision DS-7604NXI-K1/4P 4K UHD 4-Channel Plug and Play AcuSense NVR, No HDD
See all Hikvision items

Hikvision DS-7604NXI-K1/4P 4K UHD 4-Channel Plug and Play AcuSense Network Video Recorder, No HDD

SKU: HVDS7604NXIK
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision DS-7604NXI-K1/4P Specifications

Facial Recognition

Facial Recognition

Jump to...

  • Facial Detection and Analytics

    Face picture comparison, human face capture, face picture search

  • Face Picture Library

    Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture <= 4 MB, total capacity <= 1 GB)

  • Facial Detection & Analytics Performance

    1-ch human face capture

  • Face Picture Comparison

    2-ch face picture comparison alarm

Motion Detection 2.0

Jump to...

  • Human/Vehicle Analysis

    4-ch

Video and Audio

Jump to...

  • IP Video Input

    4-ch

  • Incoming Bandwidth

    40 Mbps

  • Outgoing Bandwidth

    80 Mbps

  • HDMI Output

    1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz

  • VGA Output

    1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

  • Video Output Mode

    HDMI1/VGA simultaneous output

  • Audio Output

    1-ch, RCA (Linear, 1 K Ohm)

  • Two-Way Audio

    1-ch, RCA (2.0 Vp-p, 1 K Ohm, using the audio input)

Decoding

Jump to...

  • Decoding Format

    H.265/H.265+/H.264+/H.264

  • Recording Resolution

    12 MP/8 MP/6 MP/5 MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Synchronous Playback

    4-ch

  • Decoding Capability

    AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30fps)
    AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)

  • Stream Type

    Video, Video & Audio

  • Audio Compression

    G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Jump to...

  • Remote Connection

    128

  • Network Protocol

    TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

  • Network Interface

    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Jump to...

  • Interface

    4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

  • Power

    <= 50 W

  • Standard IEEE

    802.3af/at

Auxiliary Interface

Jump to...

  • SATA

    1 SATA interface

  • Capacity

    Up to 10 TB capacity for each HDD

  • USB Interface

    Front panel: 1x USB 2.0
    Rear panel: 1x USB 2.0

General

Jump to...

  • Power Supply

    48 VDC, 1.35 A

  • Consumption

    <= 10 W (without HDD and PoE off)

  • Working Temperature

    14 Degree F to 131 Degree F (-10 Degree C to 55 Degree C)

  • Working Humidity

    10% to 90%

Certification

Jump to...

  • FCC

    Part 15 Subpart B, ANSI C63.4-2014

  • CE

    EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Physical

Jump to...

  • Dimension (W x D x H)

    12.6 x 9.4 x 1.9" (320 x 240 x 48mm)

  • Weight

    2.2 lbs (997g) (without HDD)

Other

Jump to...

  • UPC Code

    842571145441

About Hikvision DS-7604NXI-K1/4P

Smart Function
• All channels support Motion Detection 2.0
• 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
• Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability
• H.265+ compression effectively reduces the storage space by up to 75%
• Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output
• Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback
• Up to 1 SATA interface for HDD connection (up to 10 TB)
• 4-ch synchronous playback

Network & Ethernet Access
• 4 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect for easy network management

Hikvision DS-7604NXI-K1/4P Features

  • Up to 4-ch IP camera inputs, plug & play with 4 power-over Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Up to 4-ch IP camera inputs, plug & play with 4 power-over Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

What's in the box:

  • Hikvision DS-7604NXI-K1/4P 4K UHD 4-Channel Plug and Play AcuSense Network Video Recorder (No HDD)
  • Hikvision 3 Year Limited Warranty
