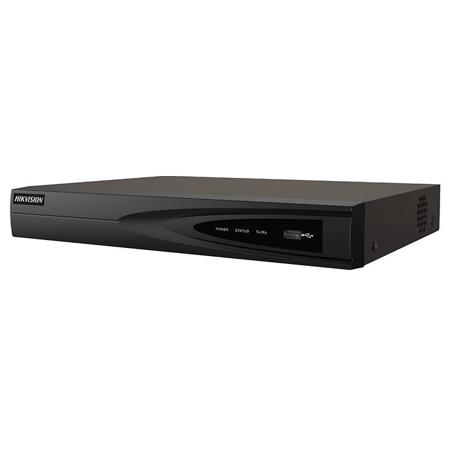

Hikvision DS-7604NI-Q1/4P 4-Channel 4K Plug and Play UHD NVR with PoE (No HDD)
See all Hikvision items

Hikvision DS-7604NI-Q1/4P 4-Channel 4K Plug and Play UHD Network Video Recorder with PoE (No HDD)

SKU: HVDS7604Q14P
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision DS-7604NI-Q1/4P Specifications

Video/Audio Input

Video/Audio Input

Jump to...

  • IP Video Input

    4-ch
    Up to 8 MP resolution

  • Two-Way Audio

    1-ch, RCA (2.0 Vp-p, 1K Ohm)

Network

Jump to...

  • Incoming Bandwidth

    40 Mbps

  • Outgoing Bandwidth

    80 Mbps

Video/Audio Output

Jump to...

  • Recording Resolution

    8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • HDMI Output Resolution

    1-ch, 4K (3840 x 2160)/30 Hz, 1920 x 1080p/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz; HDMI/VGA simultaneous output

  • VGA Output Resolution

    1-ch, 1920 x 1080p/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz; HDMI/VGA simultaneous output

  • Audio Output

    1-ch, RCA (linear, 1K Ohm)

Decoding

Jump to...

  • Decoding Format

    H.265/H.265+/H.264/H.264+/MPEG4

  • Live View/Playback Resolution

    8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Synchronous Playback

    4-ch

  • Capability

    1-ch @ 8 MP/4-ch @ 1080p

Network Management

Jump to...

  • Network Protocols

    TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Hard Disk

Jump to...

  • SATA

    1 SATA interface

  • Capacity

    Up to 8 TB capacity for each disk (total of 8 TB)

  • HDD Included

    None (Available Separately)

External Interface

Jump to...

  • Network Interface

    1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • USB Interface

    2 x USB 2.0

PoE Interface

Jump to...

  • Interface

    4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

  • Power

    <=50 W

  • Standard

    IEEE 802.3 af/at

General

Jump to...

  • Power Supply

    48 VDC

  • Power

    <=65 W

  • Consumption (without Hard Disk)

    <=10 W (w/o enabling PoE)

  • Working Temperature

    -10 to +55 Degree C (+14 to +131 Degree F)

  • Working Humidity

    10% to 90% (non-condensing)

  • Chassis

    1U chassis

  • Dimensions (W x D x H)

    12.4 x 9.4 x 1.9" (315 x 240 x 48mm)

  • Weight (without Hard Disk)

    2.2 lb (<=1kg)

Other

Jump to...

  • UPC Code

    842571119411

1 Accessories for Hikvision DS-7604NI-Q1/4P 4-Channel 4K Plug and Play UHD Network Video Recorder with PoE (No HDD)

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Hikvision DS-7604NI-Q1/4P

Hikvision's DS-7604NI-Q1/4P Series of 4K Network NVRs let you centrally manage IP camera settings, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

Connects to Hikvision smart IP cameras to record, play back, and back up VCA alarms. Supports VCA detection alarm.

Instantly play back assigned channel during multi-channel display mode. Smart search selected video area, and smart playback improves playback efficiency.

Hikvision DS-7604NI-Q1/4P Features

  • 4K (8 MP) HDMI Video Output @ 3840 x 2160 Resolution
  • H.265+/H.265/H.264/H.264+
  • Supports 4 IP Cameras
  • Simultaneous HDMI/VGA Outputs
  • 1 SATA Interface
  • Supports Third-Party Network Cameras
  • 1 Self-Adaptive 10/100/1000 Mbps Network Interface
  • 4 Independent PoE Network Interfaces
  • Long Distance (100 to 300 m) Network Transmission via PoE
  • Hik-Connect for Easy Network Management

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4K (8 MP) HDMI Video Output @ 3840 x 2160 Resolution
  • H.265+/H.265/H.264/H.264+
  • Supports 4 IP Cameras
  • Simultaneous HDMI/VGA Outputs
  • 1 SATA Interface
  • Supports Third-Party Network Cameras

What's in the box:

  • DS-7604NI-Q1/4P 4-Channel 4K Plug and Play UHD Network Video Recorder with PoE (No HDD)
  • Hikvision 3 Year Limited Warranty
