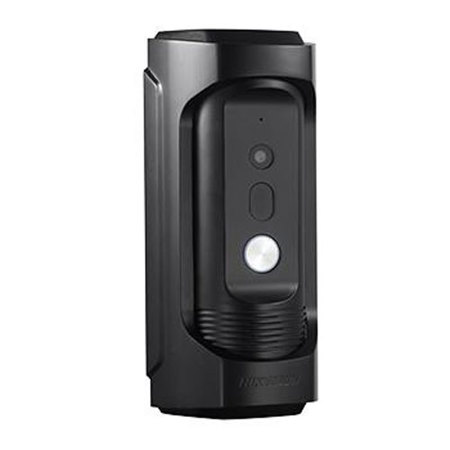

The DS-KB8112-IM is a vandal-resistant door station, which has passed IK 9 (Impact Protection Level). The door station, featuring in the vandal-resistant design, convenient installation and easy operation, supports the video intercom function, access control function, door magnetic alarm, motion detection and so on. As an intelligent device, the door station is mainly applied in the villa for improving the living security.
Basic Functions
• Video intercom function, supporting the communication with the master station and the indoor station
• Access control function, supporting multiple door opening modes (indoor station, master station, client software and web)
• Self-adaptive IR supplement with max. 5-meter IR distance
• High-performance embedded SOC processor
• IK 9 and IP 66
Video/Audio Functions
HD video surveillance with WDR wide angle and high performance CMOS, up to 720P at 30 fps
• Noise suppression and echo cancellation
• H.264 video compression standard
• Low illumination
Alarm Functions
• Supports the door magnetic alarm
• Auto-uploads alarm messages to the master station or the client software
Remote Controls
• Remote reboot, remote upgrade, time synchronization via NTP and batch configuration function
• Supports Web remote access and OSD display
• Supports motion detection
Additional Features
• ISAPI (Internet Server Application Programming Interface) and ONVIF (Open Network Video Interface Forum) supported, to ensure greater compatibility and interoperability among different platforms
• Supports bit rate and frame rate configuration, P/N video standard configuration, Email configuration and auto day & night switch
• Auto-uploads captured pictures to the FTP or the client software while unlocking the door
