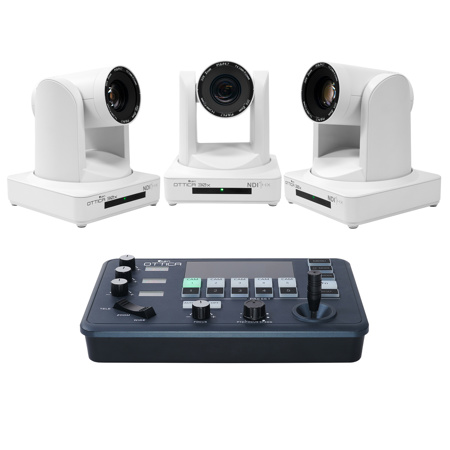

Ikan OTTICA Bundle with 3x Full HD NDI|HX 30x PTZ Video Camera and IP Controller V2, White

SKU: IA3W3PTZ1CV2 MFR: OTTICA30W-3PTZ-1C-V2
Earn VIP Reward Points

Key Features

  • Capture pristine footage with the Full HD PTZ camera's detailed 1080p resolution at 60fps.
  • Remotely control up to 5 PTZ cameras with the included IP PTZ Camera Controller V2 for smooth operation.
  • Achieve broadcast-quality video with the 30x optical zoom, perfect for live streaming and webinars.
  • Experience seamless integration with NDI|HX for high-quality video transmission over your network.
  • Easily manage camera settings with user-friendly VISCA & PELCO protocols for any production environment.
  • Enjoy superior low-light performance, ensuring clear video capture in various lighting conditions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan OTTICA V2 Specifications

PTZ Camera

PTZ Camera

Jump to...
  • Color

    White

  • AV

    F1.6 - F4.7

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    On/Off

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Country of Origin

    China

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16:9, 2.07 megapixel

  • Focusing

    Input Audio Format

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/- 10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    30x f=4.3-129mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 - 60 Degree/sec

  • Pan Rotation

    +/- 170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / Controller: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/- 10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree/sec, Tilt: 30 Degree/sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60p

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 - 140 Degree F (-10 - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1 - 30 Degree/sec

  • Tilt Rotation

    30 - +90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    2.34-65.1 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 - 122 Degree F (-10 - 50 Degree C)

Controller V2

Jump to...
  • Controllable Cameras

    5

  • Communication Protocol

    VISCA, PELCO P/D, UDP

  • Number of LED Displays

    4 Color LED Display Screens

  • Number of Camera Channels

    5

  • Variable Knobs

    4

  • Joystick

    2-Axis

  • Zoom Mode

    Tele-Wide Bridge Keys

  • Buttons

    17 Silicon Buttons

  • Presets Short Keys

    5 Presets or Max 10 Presets for selection per Each Channel

  • Focus Modes

    Auto/ Manual/ OPT

  • Pan/Tilt Rotation Speed

    7-Level Adjustment

  • Zoom In/Out Speed

    7-Level Adjustment

  • Baud Rate

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps

  • Data Bits

    8 Bit

  • Stop Bit

    1 Bit

  • Parity Bit

    None

  • Internet Protocol

    UDP / IP VISCA

  • Rated Voltage

    DC 12V

  • Rated Current

    0.3A max

  • Max Power Consumption

    3.6W

  • Password Privacy Protection

    Yes

  • Security Lock

    Kingston's Security Lock

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - +60 Degree C)

  • Working Environment

    Indoors

  • RS422/RS485 Interface

    Phoenix Contact 4 pin 3.81mm Terminal

  • RS232C Interface

    DB9 Male Interface

  • LAN Interface

    RJ45 Female Interface

  • Power Supply

    12V 100-240VAC 50-60Hz

  • Firmware Upgrade

    Via Micro USB

  • Dimensions (L x W x H)

    9.6 x 6.4 x 1.8" (244 x 164 x 48mm)

  • UPC Code

    847983035755

About Ikan OTTICA V2

With the OTTICA Bundle, featuring 3x Full HD NDI|HX 30x PTZ Video Cameras and an IP Controller V2, you can set up a comprehensive streaming multi-camera video production system. This bundle is perfect for various applications including broadcasting, education, medical, sports, live production, and houses of worship.

The OTTICA 30x PTZ Video Camera, manufactured by Ikan, is equipped with a 1/2.8" CMOS sensor and a 4.3-129mm varifocal lens. This combination allows for capturing high-definition videos at a maximum resolution of 1080p at 60fps. The camera supports a wide range of connectivity options including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in.

The camera's step drive motor mechanism and motor drive controller ensure smooth and noiseless PTZ operation. It supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats, providing high-quality video and audio output.

The OTTICA's advanced ISP processing algorithms deliver vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding which ensures fluent and clear motion video even under less than ideal bandwidth conditions.

The camera employs a 1/2.8 inch high-quality CMOS sensor and supports resolutions up to 1920x1080 with frame rates up to 60 fps. The supported outputs include HDMI, 3G-SDI, and wired LAN (NDI|HX). The 3G-SDI works up to 100 meters in distance with transmission at 1080p60 format.

The OTTICA camera includes a 4.3-129mm f/1.6-3.5 varifocal lens with a viewing angle ranging from 2.34 Degree (tele) to 65.1 Degree (wide) and offers 30x optical zoom. Its autofocus algorithm ensures fast, accurate, and stable lens focusing performance.

The camera's high SNR is ensured by the Low Noise CMOS, and advanced 2D/3D noise reduction technology further reduces the noise while ensuring image sharpness. The OTTICA performs smoothly and quietly even when moving quickly to any position, thanks to its high accuracy step-driving motor mechanism.

The OTTICA supports a low-power sleep/wake up function, consuming less than 500mW in sleep mode. It also supports RS-232 cascade function for convenient installation. You can program up to 255 preset camera positions (10 presets by IR remote).

The OTT-CONTROLLER-V2 allows you to control up to 5 cameras using either IP or analog control protocols. This compact camera controller features a high-quality 2-axis joystick for smooth control of pan & tilt, and a zoom rocker. Two separate knobs allow for control of Focus & PTZ/Focus Speed.

The large LED screen displays menu settings and network information, while the smaller LED screens allow you to control various exposure and color parameters. To create a camera preset, simply press and hold one of the preset buttons for 2 seconds.

The included OTTICA PTZ Camera Wall Mount supports the OTTICA camera using a 1/4"-20 screw on the bottom, providing a sturdy long-term mounting solution.

Please note, Ikan's OTTICA cameras do not require the additional purchase of an NDI License to use and/or operate. Licensing is already included in the camera pricing. The OTTICA camera is NOT compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps. It is, however, compatible with any other video switcher including Black Magic's other ATEM switchers such as the ATEM Mini & ATEM Mini Pro.

Ikan OTTICA V2 Features

  • Bundle Includes 3 NDI|HX PTZ 30x Cameras & 1 PTZ Controller
  • NDI|HX2 Compatibility with POE (Power Over Ethernet)
  • 1/2.8" CMOS Sensor/1080/60P Resolution/Frame Rate
  • Silent PTZ Motor Mechanism
  • 5.5-110mm Varifocal Lens with 20x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • NDI HX License INCLUDED with Purchase
  • Supports IP VISCA, Serial Port VISCA, PELCO-D/P Protocols Simultaneously
  • Control up to 5 Cameras w/ RJ45, RS422, RS232, or RS485
  • 3 Knobs Control Camera Parameters Displayed on Designated LED Screens
  • Recommended IP Scanning Software

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine footage with the Full HD PTZ camera's detailed 1080p resolution at 60fps.
  • Remotely control up to 5 PTZ cameras with the included IP PTZ Camera Controller V2 for smooth operation.
  • Achieve broadcast-quality video with the 30x optical zoom, perfect for live streaming and webinars.
  • Experience seamless integration with NDI|HX for high-quality video transmission over your network.
  • Easily manage camera settings with user-friendly VISCA & PELCO protocols for any production environment.
  • Enjoy superior low-light performance, ensuring clear video capture in various lighting conditions.

What's in the box:

  • 3x Ikan OTTICA Full HD NDI|HX 30x PTZ Video Camera (White)
  • IP PTZ Camera Controller V2
  • 3x Lens Cap
  • 2x Camera Power Adapter
  • 3x RS232 Cable
  • 3x Camera IR Remote Controller
  • 3x Camera Wall Mounting Bracket
  • 3x Mounting Screws
  • 3x RS485 Terminal Connector
  • 3x Cascade Cable
  • Phoenix Contact 4-Pin 3.81mm Terminal
  • Controller Power Adapter
  • User Manual
  • Ikan 1 Year Limited Warranty
