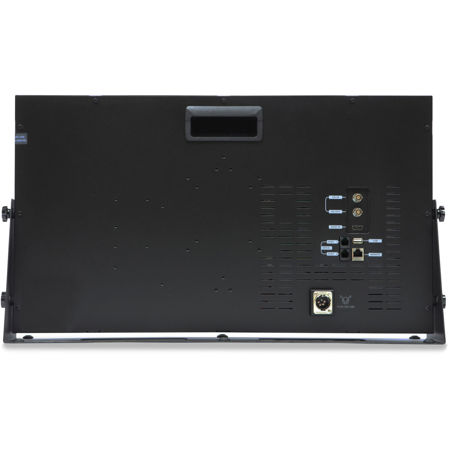

Ikan BEM-182 18.5" Studio Broadcast & Production LED Monitor with Waveform & Vectorscope (BON), 1366x768

BEM-182 is a cost-effective 18.5" LED broadcast monitor. It has color-calibrated screen with selectable color temperatures. It can be attached in front of a rack providing larger viewable area than general 17" rack/wall mount monitor. A V-Mount or Anton Bauer battery is attachable on the back and an optional tilting stand is selectable on purchase.

• Color Calibrated Screen
• Signal Analysis Feature
• Lightweight and Thin Profile
• 3G-SDI Support
• 10-Bit Signal Processor
• Monitor Control / Update via RS-422
• 3G SDI Support
• Vector scope (SDI Only)
• Exposure Range Check(SDI Only)
• Menu Setting Copy via USB Flash Memory
• UMD Mode Display
• Zero/Under/Over Scan
• Pixel to Pixel
• R/G/B/Gray Only (SDI)
• Time Code Display (ATC_HD-SDI,DVITC_SD-SDI) (SDI Only)
• 2CH Audio Level Meter(HDMI)
• 3 Color TALLY Lamp
• R,G,B and White Internal Patterns Display for Color Test (SDI Only)
• Waveform (SDI Only)
• Focus Assistance(SDI Only)
• False Color (SDI Only)
• V-CHIP display (SDI Only)
• Various Markers(EBU, 4:3, 16:9, 1.85:1, 2.35:1, etc)
• H/V Delay(SDI)
• R/G/B Only (HDMI)
• Closed Caption (CEA-608/708, SDI Only)
• De-embedded 8 to 16ch Audio Level Meter(SDI)
• Remote Control via GPI(RJ-45) Port
• Rack & VESA Mount (Option)
• Picture in Picture (SD<->HDMI)

Color Calibrated Screen
The screen is calibrated to reproduce precise colors offering selectable color temperatures such as 3200K, 5600K, 6500K, 9300K.

Signal Analysis Features
SDI Waveform/Vectorscope, R/G/B or Gray only modes and audio level meters are included. Three function buttons in front are user-assignable. Markers and safety area are displayed as user selected in the menu to check the sides and edges of taken pictures.

Lightweight and Thinner Volume
It is easy to carry and install the monitor anywhere due to the thin frame and light weight. It can be attached onto a rack with some protruded part.
