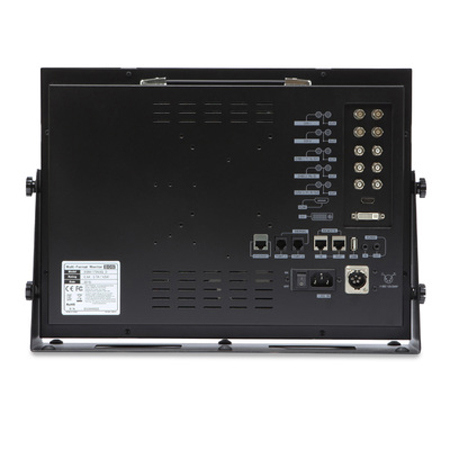

Bon Monitors BSM-173N3G 17.3" Studio Broadcast & Production Rack-Mountable LED Monitor with Waveform, Vectorscope (BON), 1920x1080

BSM-173N3G is a 17" broadcast monitor that can accept 3G SDI signal. It has native full HD screen.

• Two SDI inputs with 3G SDI Support
• Control / Update via network (RS-422 or Ethernet
• 8 to 16 Channel Audio Level Meter
• Tally Display
• UMD/IMD Mode (supports TSL 4.0)
• Menu setting transfer with USB
• Rack and Vesa Mount Available (sold separately)
• Waveform/Vectorscope
• False Color
• Time Code Display
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• R,G,B or Gray Only Display
• Pixel-to-Pixel View
• Freeze Frame
• Color Calibration Software(Optional, Training Required)
• Focus Assistance
• Closed Caption (CEA-608/708)
• Various Markers
• H/V Delay
• Zero/Under/Over Scan
• R/G/B/W Internal Patterns
• Monitor Controllable via Ethernet
• SDI & CVBS PIP

3G SDI
Has two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients.

Control via Network / Menu Setting Copy
Users can update firmware or control monitor via RS-422 or Ethernet port. Menu setting can be copied to other monitors with USB stick.

Waveform / Vectorscope
Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.
