Ikan BSM-243N3G 24" Studio Broadcast & Production Rack-Mountable LED Monitor
See all iKan items

Ikan BSM-243N3G 24" Studio Broadcast & Production Rack-Mountable LED Monitor with Waveform, Vectorscope (BON), 1920x1200

SKU: IABSM243N3G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ikan BSM-243N3G Specifications

  • Size

    24"

  • Resolution

    1920x1200

  • Pixel Pitch

    0.270mm

  • Color

    8 bit

  • Viewing Angle (H x V)

    178 deg.x178 deg.

  • Luminance of White

    350 cd/square meter

  • Contrast

    1000:1

  • Back Light

    LED

  • Display Area (H x V)

    518.4 x 324.0mm

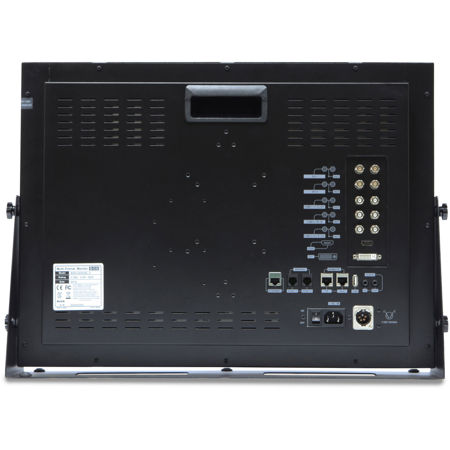

  • Input

    2x BNC: HD/SD-SDI, 3G/1.485G/270M
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    1x DVI: DVI-I, 24pin, Female
    1x VGA: DVI-I to VGA Jack (with gender)

  • Output

    2x BNC: SDI-1/2 Active Loop Output
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)

  • Analog Input Level

    Composite: 1.0Vp-p(with sync), NTSC/PAL
    YC(S-Video): Y:1.0Vp-p, C:0.286Vp-p
    Component(Y/Pb/Pr): Y:1.0Vp-p, Pb:0.7Vp-p, Pr:0.7Vp-p
    Component (R/G/B): G:1.0Vp-p(with Sync), B:0.7Vp-p, R:0.7Vp-p
    PC-RGB,Sync Level: R, G, B: 0.7Vp-p, H/V Sync: 4V +/- 1Vp-p

  • Input Signal Format

    SMPTE 425M AB: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) Level B MS1, MS2, MS3, MS4
    SMPTE 372M: Dual HD-SDI YCbCr (4:2:2), 1080p Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
    2K, SMPTE 428M: 2048x1080,24p/psf,23.98p/psf
    SMPTE 274M/292M: 1920x1080i (60, 59.94, 50)
    1920x1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)

  • Input Signal Format (Cont.)

    SMPTE 296M: 1280x720p/60,59.94,50
    SMPTE 260M: 1920x1035i/60,59.94
    SMPTE 125M/259M: 720x480i/60,59.94, 720x576i/50
    ITU R-BT.656: 576i(50)
    Composite: 720x480i(NTSC)/576i(PAL)
    Component, VGA: 480i/p (Approx.) 1920 x 1080i/p
    DVI Signal: 480i/p (Approx.) 1920 x 1080i/p
    HDMI Digital: (Approx.) 1920 x 1200i/p(de-embedded Audio 2ch)

  • Audio Input/Output

    1x Phone Jack In: Line In(Stereo)
    2x Phone Jack Out: Line Out(Rear, Stereo), Headphone Out(Front, Stereo)
    2x Speaker Out: 2W+2W, Stereo

  • Connector

    1x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    2x GPIO: GPI-7 Port, RJ-45P Jack
    2x Serial: RS-422, RJ-11P Jack
    1x USB: For firmware update

  • Power Requirement

    DC 12V/24V, AC100-230V(50/60Hz)

  • Power Consumption

    55W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20-80% RH

  • Dimensions (W x H x D)

    553.4 x 403.5 x 62.5mm / 21.79 x 15.89 x 2.46"
    With Stand: 590.4 x 419.0 x 160.0mm / 23.24 x 16.50 x 6.30"

  • Weight

    9.0kg / 19.84lbs

  • UPC Code

    889716000340

About Ikan BSM-243N3G

BSM-243N3G is a 24" broadcast monitor that can accept 3G SDI signal. It reproduces high quality picture with wide color range and smooth gradient.

• Two SDI inputs with 3G SDI Support
• Control / Update via network (RS-422 or Ethernet)
• Waveform and Vectorscope
• 8 to 16 Channel Audio Level Meter
• Tally Display
• UMD/IMD Mode (supports TSL 4.0)
• Menu setting transfer with USB
• Rack and Vesa Mount Available (sold separately)
• False Color
• Time Code Display
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• R,G,B or Gray Only Display
• Pixel-to-Pixel View
• Freeze Frame
• Color Calibration Software(Optional, Training Required)
• Focus Assistance
• Closed Caption (CEA-608/708)
• Various Markers
• H/V Delay
• Zero/Under/Over Scan
• R/G/B/W Internal Patterns
• Monitor Controllable via Ethernet
• SDI & CVBS PIP

3G SDI
Has two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients.

Control via Network / Menu Setting Copy
Users can update firmware or control monitor via RS-422 or Ethernet port. Menu setting can be copied to other monitors with USB stick.

Waveform / Vectorscope
Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ikan BSM-243N3G 24 " Studio Broadcast & Production Rack-Mountable LED Monitor
  • Manual CD
  • Power Cable
  • Screen Cleaning Cloth
  • 1 Year Warranty
