Ikan BXM-243T3G 24" Studio Broadcast & LED Production Monitor with Timecode
See all iKan items

Ikan BXM-243T3G 24" Studio Broadcast & Production LED Monitor with Timecode, PIP, Waveform & Vectorscope (BON), 1920x1200

SKU: IABXM243T3G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ikan BXM-243T3G Specifications

  • Size

    24"

  • Resolution

    1920x1200

  • Pixel Pitch

    0.270mm

  • Color

    10-bit

  • Viewing Angle (H x V)

    178 deg.x178 deg. (IPS)

  • Luminance of White

    250 cd/square meter

  • Contrast

    1000:1

  • Gamut

    102%

  • Back Light

    LED

  • Display Area (H x V)

    518.4 x 324.mm

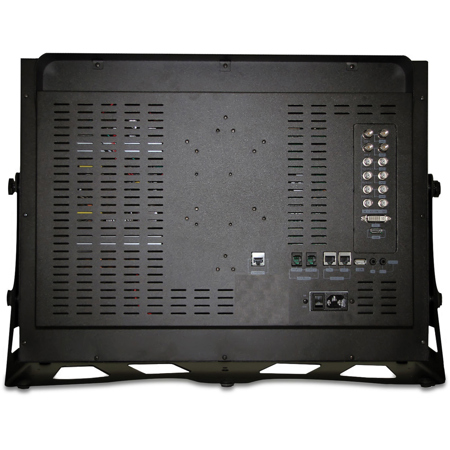

  • Input

    2x BNC: HD/SD-SDI,3G/ 1.485G/270M
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    1x DVI: DVI-I, 24pin, Female
    1x BNC: External Sync, Black Burst & Tri-sync, 1.0Vp-p

  • Output

    2x BNC: SDI-1/2 Active Loop Output
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x BNC: For External Synchronization

  • Analog Input Level

    Composite: 1.0Vp-p(with sync), NTSC/PAL
    YC(S-Video): Y:1.0Vp-p, C:0.286Vp-p
    Component(Y/Pb/Pr): Y:1.0Vp-p, Pb:0.7Vp-p, Pr:0.7Vp-p
    Component(R/G/B): G:1.0Vp-p(with Sync), B:0.7Vp-p, R:0.7Vp-p
    PC-RGB, Sync Level: R, G, B: 0.7Vp-p, H/V Sync: 4V +/- 1Vp-p

  • Input Format: SMPTE 425M AB

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)

  • Input Format: SMPTE 372M

    Dual HD-SDI YCbCr (4:2:2), 1080p, Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p

  • Input Format: SMPTE 274M/292M

    1080i (60/59.94/50), 1080p(30/29.97/25/24/24sF/23.98/23.98sF)

  • Input Format: SMPTE 296M

    720p(60/59.94/50)

  • Input Format: SMPTE 260M

    1035i(60/59.94)

  • Input Format: SMPTE 125M/259M

    480i(60/59.94), 576i(50)

  • Input Format: 2K, SMPTE 428M

    2048x 1080p(24/24sF/23.98/23.98sF)

  • Input Format: ITU R-BT.656

    576i(50)

  • Input Format: HDMI

    1080p(60) (Approx.)

  • Input Format: DVI

    1080p(60) (Approx.)

  • Audio Input/Output

    1x Phone Jack In: Line In(Stereo)
    2x Phone Jack Out: Line Out(Stereo), H/P Out(Front, Stereo))
    2x Speaker Out: 2W+2W, Stereo

  • Connector

    1x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    2x GPIO: GPI-7 Port, RJ-45P Jack
    2x Serial: RS-422, RJ-11P Jack
    1x USB: For firmware update

  • Power Requirement

    AC(100-230V, 50/60Hz)

  • Power Consumption

    108W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20-80% RH

  • Dimensions (W x H x D)

    552.0 x 408.0 x 90.6mm / 21.73 x 16.06 x 3.57"
    With Stand: 590.4 x 423.5 x 160.0mm / 23.24 x 16.67 x 6.30"

  • Weight

    9.9kg / 21.83lbs

  • UPC Code

    889716000401

About Ikan BXM-243T3G

BXM-243T3G is a high-end 12-bit video processing monitor which can display multiple color space with its 3D LUT. Most of its commands such as input selection and power on/off can be transmitted remotely via network.

• 12-bit Signal Processing for Smooth Gradients
• Multiple Color Spaces: NTSC, EBU, SMPTE, BT.709
• Gamma level 1.0 - 3.0
• Time Code
• 8 to 16ch Audio Level Meter
• UMD/IMD Mode (supports TSL 4.0)
• Freeze Frame
• Tally Display
• Monitor Controllable via Ethernet
• Firmware Update via Ethernet
• Focus Assistance
• Waveform
• Closed Caption (CEA-608/708)
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• H/V Delay
• Zero/Under/Over Scan
• R/G/B/W Internal Patterns
• SDI 1/2 Fast Switching Mode
• Rack & VESA Mount (Option)
• False Color
• Vectorscope
• Gen-lock(video synchronization)
• Various Markers
• Pixel-to-Pixel View
• Fast Motion Mode
• Blending, PaP, PiP
• Color Calibration Software(Optional, Training Required)

12bit Signal Processor
Displays smooth gradient with high-performance 12-bit video processor.

3D-LUT
Many color spaces are included such as NTSC, EBU, SMPTE, BT.709, so that the user can choose one for each need.

Gamma Selection
Gamma level is selectable from 1.0 to 3.0.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ikan BXM-243T3G 24 " Studio Broadcast & LED Production Monitor with Timecode
  • Manual CD
  • Power Cable
  • Screen Cleaning Cloth
  • 1 Year Warranty
