Ikan D12 11.6" 3G-SDI 1080p Full HD Monitor with IPS Panel, 700:1 Contrast Ratio, 350cd/m2 Brightness, 25ms Response Time

SKU: IAD12

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Ikan D12 11.6" 3G-SDI 1080p Full HD Monitor with IPS Panel Specifications

  • 3G-SDI

    1920x1080p at 50, 59.94, 60 Hz

  • HD-SDI

    1280x720p at 50, 59.94, 60 Hz
    1920x1080i at 50, 59.94, 60 Hz
    1920x1080psf at 23.98, 24, 25, 29.97, 30 Hz
    1920x1080p at 23.97, 24, 25, 29.94, 30 Hz

  • SD-SDI

    720x480i at 60Hz
    720x576i at 50Hz

  • HDMI

    720x480i & 720x480p at 59.94, 60 Hz
    720x576i & 720x576p at 50 Hz
    1280x720p at 50, 59.94, 60 Hz
    1920x1080i at 50, 59.94, 60 Hz
    1920x1080psf at 24, 25, 29.97, 30 Hz
    1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz

  • Screen Size

    11.6"

  • Aspect Ratio

    0.672916667

  • Resolution

    1920 x 1080

  • Viewing angle

    H: 178 degree / V: 178 degree

  • Display Technology

    IPS

  • Brightness

    350 cd/m2

  • Contrast Ratio

    29.16736111

  • Response Time

    25ms

  • Pixel Pitch

    0.1335x0.1335 (mm)

  • Inputs

    3G-SDI, HDMI

  • Outputs

    3G-SDI, HDMI

  • Built In Speaker

    2Wx2

  • Power Consumption

    16W

  • Color System

    PAL/NTSC/SECAM (Auto-Detected)

  • Input Voltage

    DC 7V - 24V

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Build Material

    Steel

  • Dimensions

    9.2 x 11.7 x 0.9" / 233.68 x 297.18 x 22.86mm

  • Weight

    5lbs / 2.26kg

  • UPC Code

    847983012343

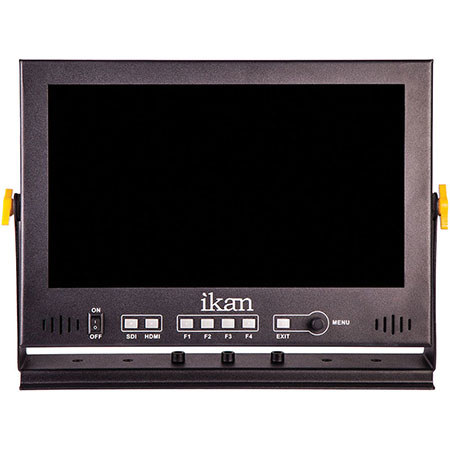

About Ikan D12 11.6" 3G-SDI 1080p Full HD Monitor with IPS Panel

The Ikan D12 11.6" 3G-SDI 1080p Full HD Monitor with IPS Panel is the newest member of the D-Series monitors. It features a beautiful full HD 1920 x 1080 IPS panel with great viewing angles and amazing color reproduction. The D12 feels at home on your edit suite or in the field with its included adjustable table stand with 1/4-20 threaded holes for attachment to light stands. The monitor is constructed of all metal to ensure durability on the most demanding sets. When It comes to I/O the D12 has you covered with its 3G-SDI and HDMI inputs and outputs.

1920 x 1080 IPS Panel
The first thing you notice when you see the D12 is its incredible Full HD IPS Panel. Packing a total of 2,073,600 pixels into its 11.6 inch 1920 x 1080 panel, the D12 gives you a super sharp image. In addition to the sharpness the fact that it's an IPS panel gives you great color rendition as well as near perfect viewing angles.

Durable Metal Construction
Durability is something the D12 excels at. The all metal frame inspires confidence whenever you take it out on the field. The table stand doubles as a yoke you can attach to most light stands with a 1/4-20 stud. Its handle allows you to move it freely wherever it is needed.

Input/Output
The D12 features SDI and HDMI inputs and outputs. Since the monitor is all digital you get the purest and cleanest signal directly to the LCD panel. Removing legacy analog inputs and circuits helps keep your image as clean as possible.

Power
Out in the field, battery power is essential. The D12 features hole patterns for both AB mount and V-mount battery plates to help you power it all day long. The monitor supports 7-24v giving you enough range to keep your monitor safe from most voltage spikes from power sources.

What's in the box:

  • Ikan D12 11.6" 3G-SDI 1080p Full HD Monitor
  • AC Power Adapter
  • Table Stand
  • Ikan Warranty
