This item is no longer available.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
16:9
LED
1920 x 1080
20ms
5"
160 deg. horizontal/160 deg. vertical
450 cd/sq. m
Heavy Duty Plastic
16.7 Million
PAL/NTSC/SECAM (Auto-Detected)
1000:1
DC 7V - 24V
HDMI
HDMI
HDMI:
720x480i & 720x480p at 59.94, 60 Hz
720x576i at 50 Hz
1280x720p at 23.98, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 24, 25, 29.97, 30 Hz
1920x1080p at 23.98, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
3840x2160p at 24, 25, 30 Hz
4096x2160p at 24 Hz
0.01925 x 0.05775mm
6W
0 to 50 deg. C (32 to 122 deg. F)
5.5 x 3.2 x 0.7" (13.97 x 8.13 x 1.78cm)
3.5 oz (99.22g)

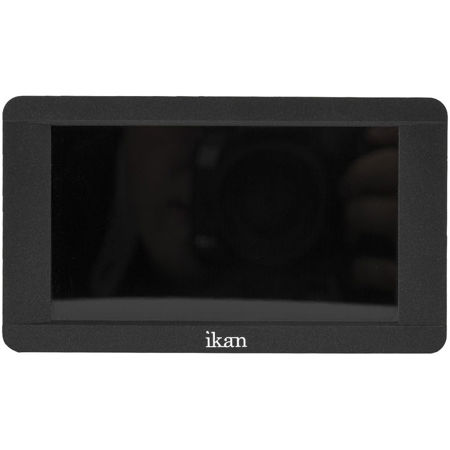

The DH5e-V2 keeps what made the original great: it's small, lightweight and has great image quality. In addition, it now features the ability to load 3D LUTs via the USB port. The DH5e-V2 is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators or shooters that are always on the go.
Full HD and Touch Capability
The Full HD 1920 x 1080 panel on the DH5e is amazingly clear, packing 440 pixels per inch. The touch capability is new for the DH5e. Now you can easily and intuitively zoom in and out of your shot with the pinch-to-zoom gesture. You can also get a quick glance at your menu settings and features with an easy tap on the screen.
Right Tools for the Right Shot
The DH5e-V2 is equipped with all of the necessary software features to create the perfect shot: false color, peaking, zooming, guides, as well as histogram & audio meters. It also features image flip so you can adjust the monitor according to your needs.
Inputs and Outputs
It's incredibly easy to set your HDMI input and output signals on the DH5e-V2. A headphone jack and audio meter display helps you make sure audio levels are optimally set.
Software Features
3D LUTs
Guides
Crosshair
Peaking
Underscan
DSLR Scaling
Zooming
EVF Mode
Pixel to Pixel
Check Field
HV Delay
Grids
False Color
Audio Levels
Clip Guides
Histogram
