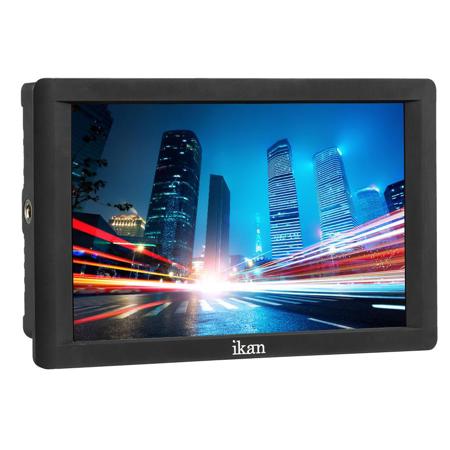

Ikan DH7 7" 4K Support HDMI On-Camera LED Field Monitor Deluxe Kit with Sony L Series Battery Plate

The Ikan DH7 Full HD monitor features 4K HDMI capabilities all within a lightweight, affordable package. The 7" monitor's 1920x1200 HD resolution combined with an IPS screen delivers vibrant color and strong viewing angles. It can handle 4K signals from the most popular 4K HDMI cameras and offers two programmable feature buttons. It's no surprise the DH7's simple, practical design makes it the ideal size and weight for field production.

• 1920 x 1200 Full HD Plus LCD Panel
• Supports DCI 4K Ultra HD HDMI Input & Output Signals (Loop Through)
• Includes Soft Case, Battery and Charger
• IPS Screen for More Accurate Color & Viewing Angles
• Histogram & Audio Level Meters
• Peaking, False Color, Clip Guides, & Pixel to Pixel
• Headphone Output
• Includes Sunhood

4K Signal Capability
The DH7 supports HDMI input and output signals up to 3840x2160 video resolution. It also offers 1:1 pixel mapping and peaking to ensure everything stays in sharp focus.

1920 x 1200 IPS Panel
The high quality IPS panel will render the best possible image regardless of the monitor's signal. With deep black and nearly perfect viewing angles, the DH7 is the perfect companion for the shooter on the go.

Inputs and Outputs
It's incredibly easy to set your 4K HDMI input and output signals on the DH7. A headphone jack and audio meter display allows you to create clean audio levels. A USB port is also included for software updates.

Battery Power
The DH7 monitor comes with the Sony L series and Canon E6 battery plate. In addition to supporting Ikan's BP5 battery plate system, it's also compatible with the Canon 900, Sony BP-U, Panasonic D54, Panasonic G6 and the Nikon EL-15!

Peaking
Ikan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

Movable pixel to pixel
The 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

DSLR Scaling
The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen convenience made simple.

Underscan
Underscan constrains the size of your image so the monitor shows everything the camera is seeing.
