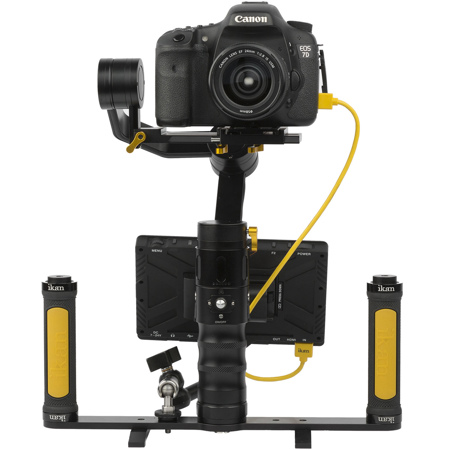

Ikan Beholder DS2-A Angled 3-Axis Gimbal and DH7 7" 4K HDMI LCD Monitor Kit, Includes BP5 Canon LP-E6 Battery Plate, Dual Grip Gimbal Handle and 7" Articulating Arm

Ikan delivers a deluxe kit to give your DSLR or mirrorless camera a jump-start in quality video production. With a 3-Axis gimbal to give your shots a smooth cinematic stabilized look, dual grip handles to provide you with a comfortable rig and a 7 inch full HD monitor with 4K HDMI capabilities, the DS2-A Deluxe Kit is truly the complete package.

Beholder DS2-A Gimbal
The Beholder DS2-A is designed specifically for professional filmmakers looking for a single handheld stabilizer for a large range of small cameras weighing up to 5 lbs. The DS2-A features a unique angled motor arm, which allows you to have a better view of the camera's screen while using the gimbal. In addition, the DS2-A also features a 60 second Auto-Sweep mode, which allows you to program a 60 second camera movement. The Beholder DS2-A is lightweight, easy to use and can be carried in your camera bag. It is also versatile enough to be used with a DSLR, mirrorless camera, GoPro or smartphone.

• Works with DSLR & Mirrorless Cameras Under 5 lbs
• Durable All Aluminum Construction
• 360 Degree Movement on Pan Axis
• Equipped with 3-axis gyro stabilized brushless motors to balance most mirrorless cameras as well as smartphones and GoPro cameras
• OLED Display Screen to Show Operating Modes
• Equipped with 32-Bit Controller & 12-Bit Encoder
• Lithium Battery Powered- Low Maintenance, Eco-Friendly
• Illuminated joystick indicating on-off status
• 3/8"-16 Tripod Mount Socket
• Work with cameras up to 5 lbs (2267 g)
• Multiple modes of operation
• Angled Motor Arm

Angled Motor Arm
The DS2-A is the first Ikan Beholder gimbal to feature an angled motor arm that gives you a better view of the camera's screen. This makes it easier to frame your shots and follow the action.

360deg. Motors
The DS2-A features a 360 degree rotation brushless motor on the yaw axis for a higher range of mobility.

Designed for DSLR and Mirrorless Cameras
With a payload of up to 5 lbs. the DS2-A has the ability to stabilize a wide range of today's popular DSLR & mirrorless cameras including the Canon 6D, Canon 7D, Sony a6500, Sony a7SII, Panasonic GH5, GoPro or smartphone.

Advanced Stabilization
Using a 32-bit controller with a 12-bit encoder, the DS2-A uses an adaptive PID algorithm to produce an efficient handheld stabilizer. This means that the gimbal will respond faster, balance easier and have greater battery life.

Lock Mode
In Lock Mode, the yaw, pitch and roll axis work together to keep the camera pointed in one direction. The camera's composition will stay the same no matter how you move the handle.

Point & Lock
Quickly lock your camera into any position by manually pointing and holding it in any direction. After a few seconds, the camera will lock and hold its position until it is reset back to default.

Auto Inversion
Switch to Inverted Mode at any time by simply flipping the handle over the camera. Inverted Mode can be operated in conjunction with any of the Lock and Follow Modes.

Multiple Follow Modes
The DS2-A features 3 different follow modes. In Yaw-Axis Follow Mode, the DS2-A will only follow your pan movements. In Pitch and Yaw-Axis Follow mode, the DS2 will follow your pan and tilt movements. Finally, the 3-Axis Follow Mode gives you full control allowing you to pan, tilt and roll.

Pan-Follow Mode
Pan-Follow Mode allows the gimbal to follow pan axis and hold the tilt position.

Follow Mode
Follow Mode allows the camera to follow both tilt and pan directions.

3-Axis Follow Mode
3-Axis Follow Mode has no restrictions as it allows the camera to follow pan, tilt and roll.

60 Second Auto-Sweep
The DS2 has a 60 second auto-sweep feature that allows you to program a 60 second movement. Position the camera at the end point and then press the mode button 5 times. Then, position the camera at the start point and let the DS2 do the rest! The camera will move from one point to the other in a 60 second time frame.

OLED Status Display
A display screen located on the handle conveniently provides you with the battery life and current operating mode.

Easy to Use
With a newly designed quick-release baseplate system, the DS2-A is easy to balance without any tools.

Multiple Mounting Options
The DS2-A handle comes with two 1/4"-20 mounts that are perfect for mounting accessories such as a light, microphone or monitor. A 3/8"-16 thread located on the bottom allows you to securely mount the DS2-A to a tripod, jib or dual handle support system such as the Ikan DGH.

DH7-DK Monitor
The Ikan DH7 Full HD monitor features 4K HDMI capabilities all within a lightweight, affordable package. The 7" monitor's 1920x1200 HD resolution combined with an IPS screen delivers vibrant color and strong viewing angles. It can handle 4K signals from the most popular 4K HDMI cameras and offers two programmable feature buttons. It's no surprise the DH7's simple, practical design makes it the ideal size and weight for field production.

• 1920 x 1200 Full HD Plus LCD Panel
• Supports DCI 4K Ultra HD HDMI Input & Output Signals (Loop Through)
• Includes Soft Case, Battery and Charger
• IPS Screen for More Accurate Color & Viewing Angles
• Histogram & Audio Level Meters
• Peaking, False Color, Clip Guides, & Pixel to Pixel
• Headphone Output
• Includes Sunhood

4K Signal Capability
The DH7 supports HDMI input and output signals up to 3840x2160 video resolution. It also offers 1:1 pixel mapping and peaking to ensure everything stays in sharp focus.

1920 x 1200 IPS Panel
The high quality IPS panel will render the best possible image regardless of the monitor's signal. With deep black and nearly perfect viewing angles, the DH7 is the perfect companion for the shooter on the go.

Inputs and Outputs
It's incredibly easy to set your 4K HDMI input and output signals on the DH7. A headphone jack and audio meter display allows you to create clean audio levels. A USB port is also included for software updates.

Battery Power
The DH7 monitor comes with camera battery plate. In addition to supporting Ikan's BP5 battery plate system, it's also compatible with the Canon 900, Sony BP-U, Panasonic D54, Panasonic G6 and the Nikon EL-15!

Peaking
Ikan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

False Color
The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the desired quality every time. By adjusting the camera's Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.

Dual Grip Gimbal Handle & Tray
• Controlling your Ikan Beholder gimbal is a breeze with Ikan's DGH Dual Grip Gimbal Handle
• Constructed out of durable, lightweight aluminum, the DGH's sturdy frame is specifically designed to make gimbal operation much easier
• After mounting your Beholder gimbal on it, two comfortable, padded grip handles allow you to control the gimbal's movement with your upper body instead of just your wrist
• The shift in weight greatly increases stability and decreases arm fatigue
• Depending on your shooting preference, you can operate the gimbal either over-handed or under-handed once it's mounted on the DGH
• The built-in tabletop feet allow you to easily calibrate your gimbal hands-free and provide a firm base to set it on when not in use
• Although the DGH is specifically designed for Ikan's Beholder gimbals, it is compatible with most gimbals that feature a 3/8"-16 mounting point on the gimbal's base handle

7" Articulating Arm
• Mount Monitor or Camera Accessories
• 1/4"- 20 Threaded ends
• Ball Joints at each end
• Center wing nut lock
• Removable Shoe Mount
