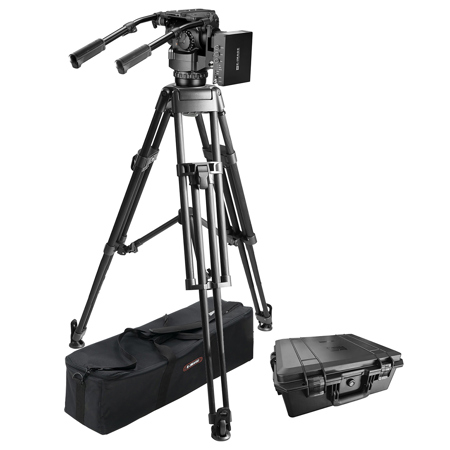

Ikan E-Image EG25XR-PRO XR Virtual Production Tripod Kit with 2-Section Carbon Fiber Tripod and GH25XR Head

Be at the forefront of virtual production with the E-Image EG25XR-PRO XR Virtual Production Tripod Kit. This high-performance head and lens tracking system is an essential component of XR systems, designed to capture precise data on the pan and tilt angles of the head, as well as the zoom and focus of the lens.

The kit includes a robust video tripod, an encoded head, an XR data processing device, zoom/focus lens encoders, and a DC power cable. Real-time virtual data is transmitted to the XR data processing device, which can output tracking data via the FREE-D Protocol using either an RS422 or RJ45 interface.

The GH25XR Fluid Head, an integral part of this kit, features integrated encoders that accurately track and relay the pan and tilt positions in real-time. The data from the encoders is output through an 8-pin locking cable. This tripod head is capable of supporting cameras up to 61.7 pounds and offers adjustable counterbalance, pan, and tilt drag settings.

The XR Data Processing Device is designed to capture data from the lens focus/zoom encoders and tripod pan/tilt encoders. It outputs the encoded data to the Free-D protocol via RJ45 UDP or RS-422 serial data. Free-D is a widely adopted protocol in virtual production, used to convey real-world camera movement and positioning data to digital environments.

The heavy-duty tripod, equipped with a leveling 100mm base, has a 220lbs capacity and is constructed from 12X layer carbon fiber. It features a flip-clamping system with safety locks and can accommodate professional DSLRs, telephoto lenses, and camcorders. The height range is 30" to 60".

The lens encoders connect to the focus and zoom rings of a broadcast lens, capturing the data and encoding it to the Free-D protocol. These encoders are compatible with the vast majority of broadcast lenses and include 0.6, 0.5, and 0.8 pitch gears that mount directly to the lens or to a 15mm rod. With a high resolution of 65,536 count/revolution, the magnetic sensors are able to pick up the most subtle lens adjustments.

In summary, the E-Image EG25XR-PRO XR Virtual Production Tripod Kit is a comprehensive solution for capturing precise, real-time data for virtual production.
