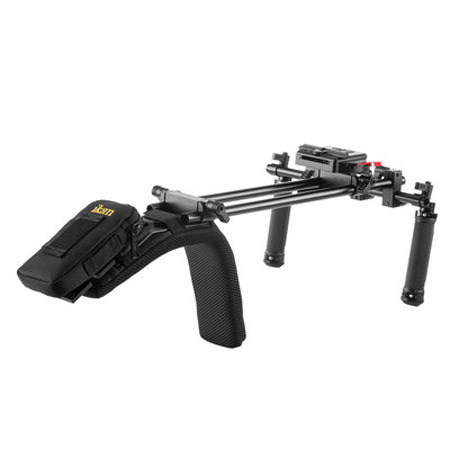

Ikan EV3 Flyweight DSLR Shoulder Rig

SKU: IAELEEV3FLWD

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-06-07T08:09:07

Rated 5 out of 5

Great shoulder rig

Easy setup and use. Very sturdy and comfortable.

Michael W.

Ikan EV3 Specifications

  • EV3 Baseplate: Baseplate Type

    Quick Release

  • EV3 Baseplate: Rod Compatibility

    15mm / 0.59"

  • EV3 Baseplate: Rod Spacing

    60mm / 2.36"

  • EV3 Baseplate: Tripod Mounting

    4x 1/4"-20 Threaded Holes
    4x 3/8"-16 Threaded Holes
    1x 1/4"-20 Threaded Screw

  • EV3 Baseplate: Camera Compatibility

    DSLR, Mirrorless DSLR, Micro 4/3 and Small Camcorders

  • EV3 Baseplate: Material

    Aluminum

  • ELE-15R18: Rod Type

    Standard

  • ELE-15R18: Rod Diameter

    15mm / 0.59"

  • ELE-15R18: Rod Length

    18" / 457.20mm

  • ELE-15R18: Quantity

    2

  • ELE-15R18: Material

    Aluminum

  • ELE-15R12: Rod Type

    Standard

  • ELE-15R12: Rod Diameter

    15mm / 0.59"

  • ELE-15R12: Rod Length

    12" / 304.80mm

  • ELE-15R12: Quantity

    1

  • ELE-15R12: Material

    Aluminum

  • Cross Block: Rod Compatibility

    15mm / 0.59"

  • Cross Block: Quantity

    2

  • Cross Block: Material

    Aluminum

  • EV3 Grip Handle: Grip Length

    4" / 10.16cm

  • EV3 Grip Handle: Grip Diameter

    30mm / 1.18"

  • EV3 Grip Handle: Quantity

    2

  • EV3 Grip Handle: Material

    Rubber / Aluminum

  • Weight

    Full Assembly: 4.89lbs / 2.22kg
    EV3 Baseplate: 1.15lbs / 0.52kg
    ELE-15R18 Rod: 0.22lbs / 0.10kg
    ELE-15R12 Rod: 0.14lbs / 0.06kg
    Cross Block: 0.23lbs / 0.10kg
    EV3 Grip Handle: 0.59lbs / 0.27kg
    Shoulder Pad: 1.32lbs / 0.60kg
    Weight Bag: 0.21lbs / 0.10kg

  • UPC Code

    847983014118

About Ikan EV3

FEATURED REVIEWS

Great shoulder rig

By Michael W.

Easy setup and use. Very sturdy and comfortable.

The Elements EV3 Flyweight DSLR Shoulder Rig features Ikan's new EV3 Quick-Release Baseplate System for use with small DSLR, mirror less DSLR, micro 4/3 cameras and small camcorders.

• EV3 Elements height adjustable quick-release plate system with anti-rotation camera plate
• Designed for DSLR, Mirror less DSLR, Micro 4/3 and small camcorders
• Lightweight shoulder pad with counterweight bag system
• Two textured non-slip grip rubber handles with 15 mm rod mounts
• Integrated tripod mount with four 1/4"-20 and four 3/8"-16 thread mounting points
• Includes a pair of 18" 15 mm aluminum rods

Straight Rig Design
With no offset, the EV3 Flyweight's straight rig design is perfect for camera with flip-out screens. The straight design is also well-suited for camera operators who like to use external monitors or EVF systems.

EV3 Quick-Release Plate
The EV3 base plate system enables you to quickly and efficiently mount and dismount your camera - simply press one level and the quick release button. The AntiRotation plate prevents your camera from rotating out of alignment.

Height Adjustable
The height of the EV3 base plate can be adjusted to adapt to different cameras.

Integrated Tripod Mount
Four 1/4"-20 and four 3/8"-16 thread holes line the bottom of the tripod mount for various mounting options.

Lightweight Shoulder Pad
The unique shoulder pad gives the EV3 Flyweight Rig a comfortable point of contact with the operator's chest. This allows the operator to get a better feel by pushing the rig against the body

Non-Slip Grip
Using a mesh-like grip texture, the new EV3 handles provide a strong grip for any hand.

Recommended For
• DSLR Camera Operators
• Mirror less DSLR Camera Operators
• Micro 4/3 Camera Operators
• Small Camcorder Operators
• Filmmakers
• Videographers

What's in the box:

  • Ikan EV3 Baseplate
  • 12 " 15mm Aluminum Rods
  • 2x 18 " 15mm Aluminum Rods
  • 2x EV3 Grip Handles
  • 2x Cross Blocks
  • Shoulder Pad
  • Weight Bag
  • 1 Year Warranty
