Ikan Recoil XT Specifications

  • Compatibility

    Camera

  • Dimensions

    Camera Stabilizer: 25 x 8 x 11.5" (63.50 x 20.32 x 29.21cm)
    Cheese Plate: 75 x 75 x 6mm (2.95 x 2.95 x 0.24")
    15mm Rods: 0.62 x 0.62 x 4" (1.57 x 1.57 x 10.16cm)
    15mm Rod Adaptor: 1.38 x 1.06 x 0.61" (3.51 x 2.69 x 1.55cm)
    15mm Rod Mount: 82 x 35 x 10mm (3.23 x 1.38 x 0.39")
    15mm Right Angle Rod Adaptor: 35 x 27 x 15.5mm (1.38 x 1.06 x 0.61")
    Tripod Mount: 3 x 3 x 2mm (0.12 x 0.12 x 0.08")

  • Weight

    Camera Stabilizer: 3.2 lbs (1.45kg)
    Cheese Plate: 0.15 lbs (0.07kg)
    15mm Rods: 0.05 lbs (0.02kg)
    15mm Rod Adaptor: < 1 oz (28.35g)
    15mm Rod Mount: 0.20 lbs (0.09kg)
    15mm Right Angle Rod Adaptor: 0.05 lbs (0.02kg)
    Foam Grip Handles: 0.15 lbs (0.07kg)
    Tripod Mount: 0.4 lbs (0.18kg)

  • UPC Code

    847983006748

About Ikan Recoil XT

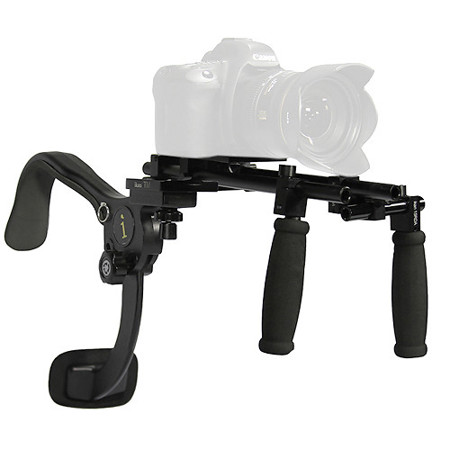

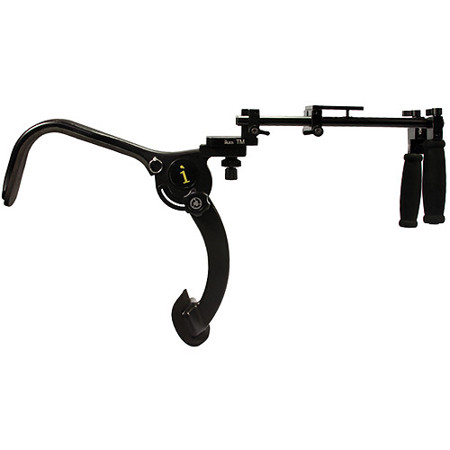

The next step in basic shot stabilization. The Recoil- XT extends the great features of our basic Recoil stabilizer. We've added a pair of 15mm rails, an extra grip, a quick release camera plate and a removable tripod mount. This configuration gives you added weight carrying capacity and of course - added flexibility. With the XT you now have the room and mounting points to add a variety of accessories. Follow focus, matte box, articulating arms, battery or audio mounts - you name it.

• Light weight, ergonomic design
• Adjustable chest brace
• Multiple mounting options
• High-impact poly carbonate composite construction
• Multiple accessory mounting options
• Easily converts for tripod use

15mm Rods
The iKan Elements line is a completely modular camera support system designed to be infinitely customizable. The various pieces that make up the iKan Elements line provide camera support that is lightweight, comfortable and more budget-conscious than anything currently on the market. Our systems are easy to use and ergonomically designed to provide support, whatever your needs might be. Each piece is so multi-functional that you will continuously discover new configurations over the course of utilizing the Elements.

15mm Rod Adaptor
The ELE-15RDA 15mm rod adapter has several useful functions, starting with its ability to mount accessories with 1/4"-20 threaded studs directly to 15mm rods. Secondly, by combining the ELE-15RDA with the Cheese Stick Jr., multiple right angle mounting points are made available for adding for batteries, lights, articulating arms, etc. to any 15mm rod system. Additionally, the ELE-15RDA can be paired with the 15mm Right Angle Rod Adaptor (ELE-90-15RDA) for clamping 15mm rods perpendicular to each other.

15mm Rod Mount
The 15mm Rod Mount (ELE-15RM) works with any standard 15mm rod system. The rod mount is one of our most popular components. It has two 4mm, threaded mounting holes to accommodate the iKan 62mm battery systems. Those holes will also accept any iKan Cheese Plate, Cheese Stick Sr., battery plates or the ELE-90M right angle mount. There is anti-rotation slot in the middle of the mount to secure the Cheese Stick Jr. In this combination the Cheese Stick Jr. will sit between the rods. Providing and additional three 1/4" and two 3/8" threaded holes for mounting a center grip, articulating arm or whatever accessory you may need.

15mm Right Angle Rod Adaptor
The 15mm right angle rod adapter (ELE-90-15RDA) is ideal for mounting the Cheese Stick JR., with its anti-rotation mounting slot. By mounting the Cheese Stick JR, with this right angle adapter, additional mounting points are made available for your battery plates, articulating arms, etc. Additionally, the ELE-90-15RDA can be paired with the 15mm Rod Adaptor (ELE-15RDA) for clamping 15mm rods perpendicular to each other.

Foam Grip Handles
Foam grip handles (ELE-GB-F) for use with Elements components and kits and 1/4 threaded at each end.

Cheese Plate
One of the core pieces of the Elements line is our Cheese Plate (ELE-PT). This extremely versatile piece can be used in a number of ways. Whether as a simple base plate for a camera support system or as a monitor mounting plate. With several industry-standard 1/4-20, 3/8-16 and m4-7 threaded holes as well as 75mm VESA mounts, this part will serve so many uses on-set, that you'll wonder how you ever got by without it. Few other components within our Elements line is as versatile as the Cheese Plate. Many of our kit configurations utilize at least one and often two or more of this precision-engineered accessory mounting tool.

Tripod Mount
Our ELE-TM Tripod Mount will allow you to mount the Super Fly or Deluxe Fly (or any rig using our ELE-15RM mount) to any tripod plate with a 1/4-20 or 3/8-16 screws. The ELE-TM is easy to mount and use without adding significant weight to your rig.

What's in the box:

  • iKan ELE-15R4 15mm Rod (4 ")
  • 2x ELE-15R12 15mm Rod (12 ")
  • 3x ELE-15RDA 15mm Rod Adaptor
  • 2x ELE-15RM 15mm Rod Mount
  • ELE-90-15RDA 15mm Right Angle Rod Adaptor
  • 2x ELE-GB-F Foam Grip Handles
  • ELE-PT Cheese Plate
  • ELE-TM Tripod Mount
  • Rosette Screw
  • Recoil Body
  • 1 Year Warranty
