Review Summary
GH65 with 6-Bolt Flat Base
EP880XF PLUS
El-7008
143 lbs (65kg)
6-Bolt flat base
38.4-68.3" (97.5-173.5cm)
15.0" (38cm)
103.6 lbs (47.1kg)
6.6-143 lbs (3-65kg)
154 lbs (70kg)
6-Bolt flat base
1-12 grades of counterbalance with micro counterbalance, total 72 steps
0-11
0-11
GP6 sliding plate
152mm
Yes
26.4 lbs (12kg)
165 lbs (75kg)
Carbon fiber
Flat base
15" (38cm)
28.3-58.3" (72-148cm)
77.2 lbs (35.1kg)

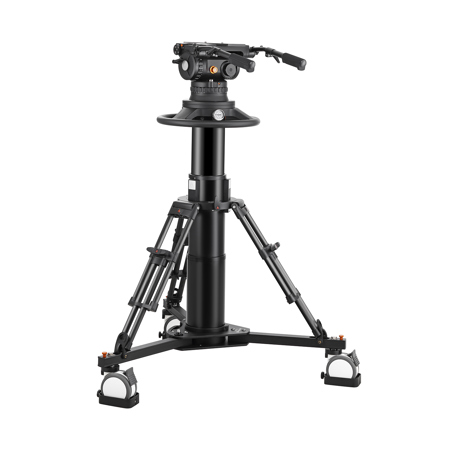

After upgrading your broadcast camera operations with the E-Image EP880XF PRO Pneumatic Carbon Fiber Pedestal, you'll experience a new level of professional performance. This advanced pedestal kit is meticulously designed for operators who require substantial payload capacity and precise counterbalance capabilities. It effortlessly supports a payload of up to 138.6 lbs, making it perfect for cameras equipped with large lenses, teleprompters, talent monitors, viewfinders, and servo controls.
The pedestal's standout feature is its pneumatic center column, which includes an air release valve and an air pressure gauge, allowing for smooth balance adjustments across varying payloads. The dual carbon fiber legs, when paired with the robust EI-7008L dolly, can support up to 165 lbs, ensuring unmatched stability and reliability during operation.
Central to this system is the GH65 6-Bolt Flat-Base Fluid Head, which boasts a comprehensive 72-step adjustable counterbalance system. This includes 9x micro counterbalance settings and a two-step payload switch, providing 11 steps of pan & tilt drag for complete shot control. The innovative payload switch button allows seamless adjustment between two payload ranges: 6.6 to 94.8 lbs and 94.8 to 143.3 lbs, accommodating a diverse array of camera setups with ease.
Safety is a top priority with the E-Image EP880XF PRO. It features a double security mechanism for the quick release plate and an automatic extra tilt lock on the base, ensuring your equipment remains securely in place. The 12-inch tripod plate secures the camera payload to the fluid head and offers an additional 5.9 inches of sliding range, facilitating optimal balance for your teleprompter and camera setup. The top-loading plate design enables quick and straightforward camera attachment and detachment, saving valuable time on set.
The dual panhandles, adjustable from 16.7" to 24", provide firm control over your shots and are ideal for mounting zoom, focus, and iris controls. The fluid head also features quad rosettes for mounting additional handles, enhancing stability. The dolly base is equipped with track lock wheels, allowing you to maintain direction during intricate dollying and tracking shots, with the option to lock wheels in specific positions for radial arc shots.
Additionally, the E-Image EP880XF PRO is compatible with the 170LP Universal Leveling Platform, offering a robust and stable solution for precise four-direction leveling. This platform supports loads up to 143 lbs and integrates seamlessly with any Flat-Base Pedestal Systems in the EP8 series. It features separate X-axis and Y-axis leveling knobs, each with corresponding locking knobs, ensuring precise adjustments and secure equipment placement.
