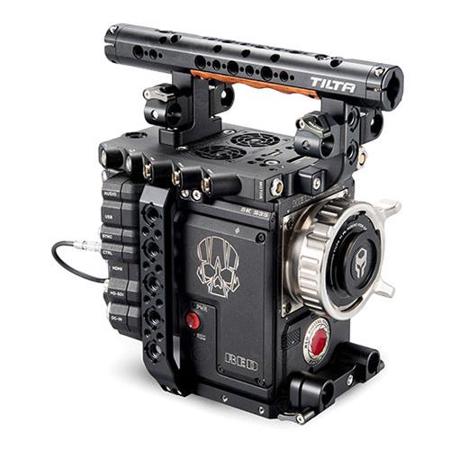

Tilta Camera Cage C1 for RED DSMC2 Camera, V Mount

Arm your camera with this newly designed Tilta camera cage specifically for the DSMC2 line of Red cameras. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several 1/4"-20 and 3/8"-16 mounting points for attaching accessories.

The battery plate on the back of the cage integrates with the RED V-Lock I/O Expander to provide several power, video and audio in and outputs. The battery plate comes in either V-mount or gold mount based on your preference. Pins on top of the plate directly communicate with the top plate and top handle when attached which transfers the in/out functionality to them. This allows you to power your accessories from virtually anywhere on the cage.

The top plate has a 2-pin and a 3-pin power output as well as a 7-pin port on the front of the plate to allow you to power the Tilta Nucleus-M's wireless lens control motors. There's also a Pogo connection so that you can attach your DSMC2 monitor. The included Pogo-to-Pogo Extension Cable allows you to attach your monitor away from the top of the camera body. If you have a LEMO-based DSMC1 monitor, there's also a LEMO port on the front of the top plate so that you can use a LEMO-to-LEMO cable to power the monitor.

The top handle features a record start/stop button and the included Top Handle Power Connection Module can be attached to either the front or back of the handle to provide even more 2-pin and 3-pin power outputs. On the bottom of the cage is a small 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.
