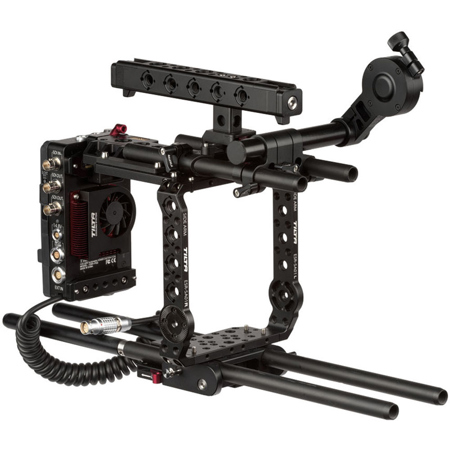

Tilta Arri Alexa Mini Camera Rig with V-Mount Power Distributor (Tilta)

ESR-T06
It's the first of its kind! Tilta has combined a high quality versatile aluminum rig with an innovative power distribution system. The resulting design is the best Arri Alexa Mini Rig on the market!

Power Distributor
The power distributor has the ability to output power directly through its gold power strip connections. A coiled 8-pin Lemo power cable runs directly from it to power the Arri Alexa Mini. It can also be cooled through a variable speed fan. The power distributor is available in a gold or V-mount battery plate and includes multiple connection options.

Power Connection Modules
The Arri Alexa Mini rig is designed to distribute power through the body of the rig to the power modules on the top plate and top handle. Each module includes: Three 14.8V Lemo power outputs, Two 3-pin sockets, One 2-pin socket.
The power module on the top handle can be mounted in four different directions: up, down, left or right. It can also be mounted on either the front or back of the top handle.

Arri MVF-1 EVF Holder
The Arri Alexa Mini Rig comes with an EVF holder that's specifically designed for Arri's MVF-1 Mini Viewfinder. You also have the option of mounting the holder with a single rod or dual 19mm crossbar for sturdier support.

Dovetail Compatibility
An Arri 15mm Standard Lightweight Support Bridgeplate is included with the Arri Alexa Mini Rig package. It features a focal plane stud mark on each side. On the bottom, it has four 1/4"-20 and two 3/8"-16 threaded holes. The bridgeplate is also compatible with Tilta's TT-C16 10-inch Lightweight Dovetail Plate.

Bridgeplate Compatibility
You can upgrade the Arri Alexa Mini Rig into a 15mm or 19mm Studio bridgeplate simply by mounting an optional bridgeplate directly underneath the ESR-BP01. Tilta offers four dovetail options ranging between 12 to 24-inches. Each studio bridgeplate is ARRI dovetail compatible. They are also compatible with O'Conner 2060, 2575 and 120EX fluid tripod heads.

Rod Support
Rod upgrades are available for the ARRI Alexa Mini Rig. Tilta offers 19mm stainless steel rods as well as 15 and 19mm aluminum rods. A variety of lens support can also transform it into a robust, stable rig.

Handheld Rig
This mini rig is extremely versatile as well as compact. It can be reduced to a lightweight handheld rig. Each hand grip can be mounted to the rig using ARRI standard rosettes. The right hand grip features a built-in remote trigger for start/stop recording.

Shoulder Rig
Using Tilta's quick release Dovetail shoulder pad and the 15mm hand grips, you can transform the Alexa Mini Rig into a shoulder rig. The quick release shoulder pad and handgrips can either be mounted to 15mm lightweight support or 15mm studio configurations.
