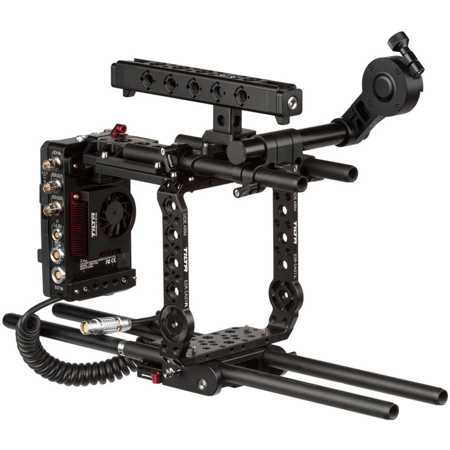

Tilta ARRI ALEXA Mini Camera Rig with AB-Mount Power Distributor

SKU: IAESRT06AAB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tilta Ikan ARRI ALEXA Mini Camera Rig with AB-Mount Power Distributor Specifications

  • Baseplate

    Rod Support: 15 mm LWS (60 mm spacing) Dovetail Plate Compatibility: ARRI standard

  • Tripod Mounting Threads

    2 x 1/4"-20
    3 x 3/8"-16

  • Threaded Holes

    LWS Plate: 14 x 1/4"-20, 4 x 3/8"-16
    Long Top Plate: 15 x 1/4"-20, 12 x 3/8"-16
    Each Side Arm: 8 x 1/4"-20, 4 x 3/8"-16
    Top Handle: 8 x 1/4"-20, 13 x 3/8"-16

  • Shoe & Accessory Mounts

    2 x ARRI rosettes (one on each side arm)
    2 x Shoe mount (on top handle)

  • Power Distribution

    Battery Plate Type:
    Gold Mount

    Inputs:
    1 x SDI in
    1 x 12 to 14.8 VDC (4-pin LEMO)
    1 x EXT in

    Outputs:
    2 x SDI out
    1 x Integrated ARRI Alexa Mini power output cable (8-pin LEMO)
    1 x 14.8 VDC (4-pin LEMO)
    2 x 12 VDC / RS (3-pin LEMO)
    1 x D-Tap (on battery plate)
    1 x EXT out

  • 15mm Rods

    2x 6" / 152.40mm
    2x 8" / 203.20mm
    2x 12" / 304.80mm

  • Material

    All components are made of aluminum

  • Additional Item Includes

    ESR-BR01 Battery Plate Rod Adapter - ESR-EH01 EVF Holder - ESR-EH03 Single-Rod EVF Holder Clamp - ESR-EH02 Dual-Rod EVF Holder Clamp - 3mm Hex Key - 3/16 Hex Key - 6mm CR-V Mini Slotted Screwdriver - 2x Single Rod Connector - 2x 12" Threaded 15mm Rods - 2x R15-200 8" Threaded 15mm Rod - 2x R15-150 6" Threaded 15mm Rod

  • Weight

    ESR-BP01 Baseplate: 11oz / 311.84g
    ESR-TP01 Plate: 2.8oz / 79.38g
    ESR-TP02 Top Plate: 8.7oz / 246.64g
    ESR-TR01 Rod Adapter: 3.7oz / 104.89g
    ESR-BR02 Top Plate Battery Connector: 4oz / 113.40g
    ESR-SA01L and ESR-SA01R Side Arms: 2.8oz / 79.38g
    ESR-TH01 Top Handle: 10oz / 283.49g
    ESR-EH01 EVF Holder: 6.1oz / 172.93g
    ESR-EH02 Dual Rod EVF Holder Clamp: 2.75oz / 77.96g

  • Weight(Contd.)

    ESR-EH03 Single Rod EVF Holder Clamp: 2.75oz / 77.96g
    ESR-BR01 Battery Plate Rod Adapter: 4oz / 113.40g
    ESR-P02 ALEXA Mini Power Distributor: 1.51lbs / 0.68kg
    R15-150 15 mm Rod (6"): 1.5oz / 42.52g
    R15-200 15 mm Rod (8"): 1.9oz / 53.86g
    R15-200 15 mm Rod (12"): 3oz / 85.05g

  • UPC Code

    847983015344

About Tilta Ikan ARRI ALEXA Mini Camera Rig with AB-Mount Power Distributor

The ESR-T06-A-AB is the first of it's kind. Tilta's design has combined a high quality versatile aluminum rig with an innovative power distribution system making it the best Arri Alexa Mini rig on the market. The ESR-T06-A-AB allows you to use your AB Mount batteries.

Tilta Ikan ARRI ALEXA Mini Camera Rig with AB-Mount Power Distributor Features

  • Ultra-hard anodic oxidation surface treatment
  • Can be adapted to fit large studio set ups or small compact gimbals
  • Arri MVF-1 compatible EVF Holder

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ikan ARRI ALEXA Mini Camera Rig with AB-Mount Power Distributor
  • ESR-BP01 LSW Baseplate
  • 2x ESR-TP01 LSW Plate
  • ESR-TP02 Long Top Plate
  • ESR-SA01L Side Arm
  • ESR-SA01R Side Arm
  • ESR-TR01 Top Rod Adapter
  • ESR-TH01 Top Handle
  • ESR-BR02 Long Top Plate Battery Connector
  • ESR-P02 ALEXA Mini Power Distributor
  • Ikan 1 Year Warranty
  • (See Specs Tab for Additional Included Items)
