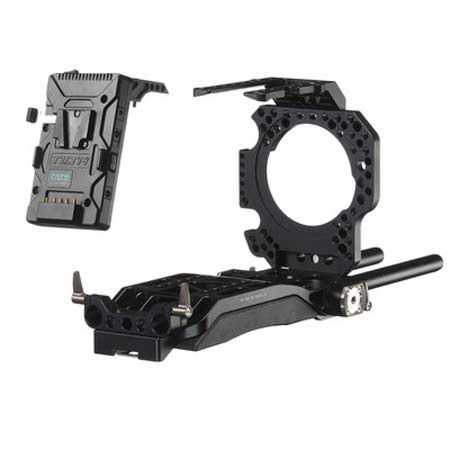

Tilta ES-T15-P Camera Rig with Power Supply System for Sony FS7 Camera

Tilta Armor designed specifically for the Sony FS7. Engineered to enhance FS7 operation with a quick release baseplate, an improved shoulder pad, power supply system and lens adapter support. Every piece is designed and precisely machined out of anodized aluminum to provide a smooth, clean and solid finish.

The ES-T15 comes equipped with a VCT Baseplate that is compatible with Sony's existing VCT-14 & VCT-U14 quick release tripod adapters. The baseplate features two 15mm rod clamps (front & back), two Arri standard rosette mounts (left & right), a shoulder pad, one 1/4" -20 threaded hole and another 3/8" -16 threaded hole located underneath as an additional tripod mounting option.

Quick Release Baseplate
The ES-T15 comes equipped with a VCT Baseplate that is compatible with Sony's existing VCT-14 & VCT-U14 quick-release tripod adapters. The baseplate features two 15 mm rod clamps (front & back), two Arri standard rosette mounts (left & right), a shoulder pad, one 1/4"-20 threaded hole and another 3/8"-16 thread hole located underneath as an additional tripod mounting option.

Rear Mounted Power Supply
The ES-T15 Power Supply Kit comes with a Sony V-Mount Power Supply System that mounts directly to the rear of the FS7 camera. The power supply system is compatible with Sony V-Mount batteries and outputs 14.8V P-Tap, 12V, 8V and 5V DC. (one P-Tap and four DC cables included).

Lens Adapter Support
The front plate has an integrated lens adapter support system designed to fit Metabones lens adapters.

Fitted Top Handle
The top plate is designed to fit around the existing Sony FS7 top handle.

15mm Threaded Rods
The Sony FS7 rig comes with two 15mm threaded aluminum rods.
Additional rods available through Ikan.

Features
• 15mm VCT shoulder pad baseplate w/ 2 Arri standard rosette mounts
• Rear mounted V-Mount power supply system
• Camera front plate with a built in lens adapter support
• Top plate designed to fit around the existing FS7 top handle
• 15mm rod clamps located on the front and back Two 15mm rods - 7.8" (200mm)
• Precision machined anodized aluminum
