Ikan 3.5" 4K Ultra HD Support HDMI Electronic Viewfinder LCD Monitor Kit, Includes Canon LP-E6 Battery Plate, 800x480 Resolution

SKU: IAEVF35KIT

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

DAVID M : Is there noticeable fogging of the eyepiece?
Shopper : Why Did You Choose This?Jaakko P : Wanted to have a small monitor that could also work as a evf on my BMPCC4K rig

Reviews about this item

Review Summary

2019-01-15T12:31:08

Rated 1 out of 5

Great Monitor, Terrible Loupe

The VL35 monitor itself is great. It's chalk-full of handy features and the latency is unnoticeable. Unfortunately, this loupe quickly fogs up from the warmth of your face and the adhesive on the metal monitor edge surround (which this loupe magnetically attaches to) failed in under an hour of usage. The adhesive couldn't handle the weight of the loupe. As a viewfinder, it's a fail.

David M.

Ikan Monitor Kit Specifications

  • Backlight

    LED

  • Color Depth

    16.7 Million

  • Color System

    PAL / NTSC / SECAM (Auto-Detected)

  • Contrast Ratio

    800:1

  • Screen Size

    3.5"

  • Inputs

    HDMI, Composite

  • LCD Brightness

    315 cd/m2

  • Material

    Heavy Duty Plastic

  • Operating Volts

    DC 6-24V

  • Outputs

    HDMI

  • Power Consumption

    2.5W

  • Resolution

    800x480

  • Surface Treatment

    Anti-Glare

  • Viewing Angle (H x V)

    160 x 160

  • HDMI

    720x480i & 720x480p at 59.94, 60Hz
    720x576i at 50Hz
    1280x720p at 23.97, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080p at 23.97, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    3840x2160p at 24, 25, 30Hz
    4096x2160p at 24Hz

  • Composite

    NTSC-M, NTSC-J, NTSC 4.43
    PAL B/G H I D, PAL M, PAL N
    SECAM

  • Dimensions

    Monitor: 4.0 x 2.9 x 0.7" (101.60 x 73.66 x 17.78mm)

  • Weight

    0.52lbs (0.24kg)

  • UPC Code

    847983019984

About Ikan Monitor Kit

VL35
Big things come in small packages. That is definitely the case with the VL35, a compact on-camera field monitor that packs a ton of features including support for 4K resolution. This 3.5" display can handle your 4K and Ultra HD footage and also help you focus with a Pixel-to-Pixel mode. The on-camera monitor's small size makes it ideal for gimbals and lightweight camera systems especially those without a built-in display like the GoPro.

• Resolution of 800x480
• 4K & Ultra HD Support via HDMI
• HDMI Input & Output
• Composite Input
• Histogram
• Peaking, False Color, Pixel-to-Pixel & Clip Guides
• Headphone Output

4K Capabilities in a Small Size
The VL35 takes 4K or Ultra HD images and scales them down to the native resolution, producing very sharp images. With the 1:1 Pixel-to-Pixel mode, you can get down to the individual pixels and ensure that everything is in focus, making it valuable for HD footage.

Small and Lightweight
The VL35's small size is extremely useful when filming in tight spaces and where weight is important such as with gimbals. Today's ever shrinking cameras don't always come with built-in screens, making an external monitor like the VL35 necessary.

Software Features
To assist you during your productions, the VL35 has all of Ikan's standard software features such as false color and histogram to get the perfect exposure, peaking for focus assist, pixel-to-pixel, frame guides and much more!

Inputs and Outputs
The VL35 includes HDMI input and output as well as a composite input via a 3.5mm connector. For audio monitoring, it also features a headphone output.

In the Box

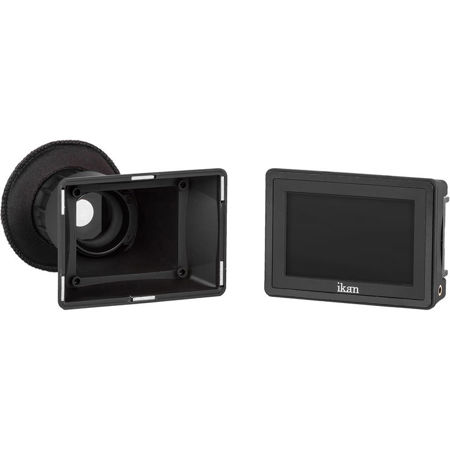

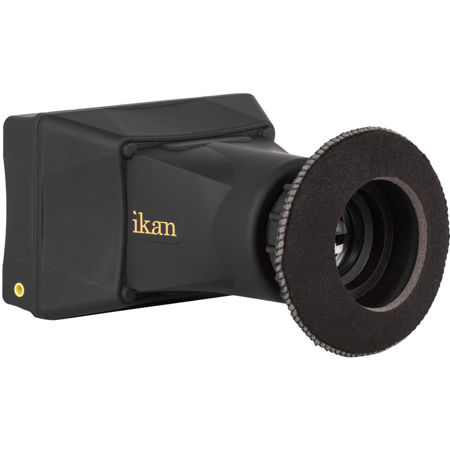

The VL35-KIT comes included with: VL35 Monitor, EVF35 Viewfinder, Carry Pouch, Canon E6 Battery Plate, Screen Cleaning Wipes, AV Cables and AC Adapter.

What's in the box:

  • Ikan VL35 Monitor
  • EVF35 Viewfinder
  • 12V AC Adapter
  • Canon E6 Battery Plate
  • AV Break Out Cable
  • Screen Cleaning Wipe
  • Carry Pouch
  • NiSi 1 Year Warranty
