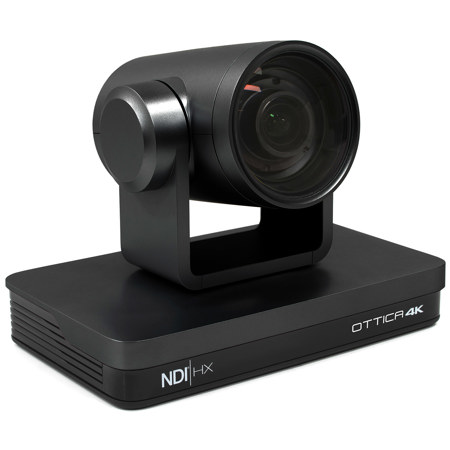

Ikan 4K OTTICA NDI|HX PTZ Camera with Aluminum Tripod

GA230-PTZ-OTTICA-4K
The GA230-PTZ-OTTICA-4K is a specialized bundle that includes the E-Image GA230-PTZ 2-stage aluminum tripod kit, an included P6 quick release plate, and the Ikan OTTICA NDI|HX PTZ camera. Because of the OTTICA 4K's PTZ functions, the need for a fluid head is eliminated. The GA230-PTZ replaces the fluid head with a P6 quick release plate. The OTTICA 4K PTZ Video Camera from Ikan is a broadcast-quality PTZ camera that utilizes NDI| HX. Using this high-efficiency low-bandwidth protocol, you can transmit a 4K video signal at 60Hz with low latency while ensuring that your network will not get bogged down. The camera features a 1/2.5" Sony CMOS sensor and varifocal lens with 12x zoom to capture videos at a maximum resolution of 4K progressive at 60fps. It supports NDI|HX2, HDMI, USB3.0 outputs simultaneously. Additionally, it supports RS-232, RS-485, POE (802.3af), and audio-in connectivity. Combine this camera with our OTTICA IP Camera Controller to control the camera using VISCA, ONVIF, PELCO protocols. The OTTICA-4K works with a wide variety of applications including Broadcast, Education, Medical, Live production, Sports, Film, Theater, Worship, and more.

Camera Performance
The high-quality Sony CMOS sensor and advanced ISP processing algorithms provide vivid images with a strong sense of depth, high resolution, and color rendition. The OTTICA-4K supports H.265/H.264 encoding which will ensure your video signal is consistent & clear even with less than ideal bandwidth conditions.

Superb High-Definition Image
The OTTICA 4K employs a 1/2.5 inch high-quality Sony CMOS sensor and supports resolutions up to 3840 x2160 with frame rates up to 60 fps. Supported outputs include HDMI, USB3.0, & LAN (NDI|HX) simultaneously.

Variable Optical Zoom Lens
The camera includes a varifocal lens with 12x optical zoom capability without distortion. The Horizontal Viewing Angle with a 12x zoom is 7.59 Degree and 80.4 Degree when fully zoomed out. The Vertical Viewing Angle with a 12x zoom is 4.6 Degree and 50.0 Degree when fully zoomed out.

Auto Focus Technology
The OTTICA 4K employs an autofocus algorithm that ensures the len's focusing performance is lens fast, accurate, and stable.

Low Noise and High SNR
The Low Noise CMOS effectively ensures the camera's high SNR. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

RS-232 Cascade Function
The OTTICA 4K supports RS-232 cascade function which is convenient for installation. One cable is included in the box.

255 Presets Positions
You can program up to 255 preset camera positions (10 presets by IR remote).

Control Camera Through Web Client
After using "Advanced IP Scanner" to find the OTTICA 4K's IP address, input the camera IP address in the URL bar of your browser and click the "Enter" button to proceed to the Web Client login page. This web client will allow you to control various parameters including pan, tilt, zoom, exposure, shutter speed, focus, color temperature, sound, preset positions, compression format, resolution, bitrate, framerate, noise reduction, character displays, and many more.

Supports Multiple Control Protocols
VISCA, IP VISCA, PELCO-D, PELCO-P, ONVIF protocols are supported and can also be automatically recognized right out of the box. The OTTICA can be directly controlled from either within software like OBS, using NDI|HX, or from the Web Client using the camera IP address in a browser tab.

Wall Mount Included
The included OTTICA 4K PTZ Camera Wall Mount will support the OTTICA 4K camera using a 1/4"-20 screw on the bottom. Attaching the camera and mount directly to the wall will provide you with a sturdy long-term mounting solution.

Super Wide Height Range
The geared center column of the tripod can extend 18" and lock in place for high-angle shots. This tripod has a height range of 33.25" to 92", and is topped off by a flat mounting base with a 3/8-16 threaded screw.

Stability
The GA230-PTZ can hold up to 26.5 lbs and comes packaged with a flat quick release plate for extra stabilization. Also included is a camera plate that can slide forward or backward before being secured by the lock-down lever. Additionally, a safety release ensures that the camera won't fall off the plate if it's not secured. The camera plate is also interchangeable with Manfrotto 501 plates. A stone bag is also included to weigh down your tripod for added stability.

Multiple Mounting Points
A threaded 1/4"-20 mounting recess is conveniently located at the base of the central column for mounting accessory arms. These will allow for mounting wireless transmitters, lights, or especially monitors, which you might need if your camera is set at the tripod's full extension. Additionally, the quick-release plate itself also includes two mounting recesses; a 1/4"-20 thread and a 3/8"-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, or any other accessories you might need.

Bubble Level
The quick-release plate incorporates a bubble level to assure proper head alignment when shooting.
