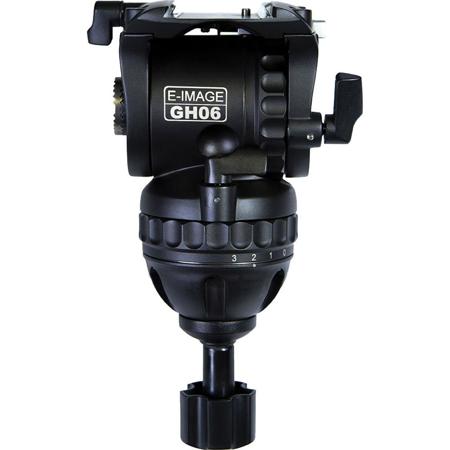

Ikan E-Image GH06 75mm (2.95") Pro Fluid Video Head, 13.2lbs Capacity

SKU: IAGH06 MFR: GH06
Earn VIP Reward Points

Key Features

  • Get smooth, professional video with this Ikan fluid video head, perfect for filmmakers.
  • Achieve precise control with adjustable pan and tilt drag settings on this video head.
  • Supports up to 13.2lbs, ideal for DSLRs and smaller camcorders using this tripod head.
  • Enjoy quick setup with the 75mm ball base & sliding plate on this professional head.
  • Durable build quality ensures reliability in temperatures from -40°F to 176°F for shoots.
  • Capture stable footage with counterbalance system; a must-have video tripod head feature.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Easy Lock base plate system on the E-Image GH06 75mm Pro Fluid Video Head?

The Easy Lock base plate system allows for quick and convenient attachment of the quick release plate to the head. It offers two methods: by snapping the plate in from the top or sliding it in from the rear.

What is the maximum payload that the E-Image GH06 75mm Pro Fluid Video Head can support?

The E-Image GH06 75mm Pro Fluid Video Head can support payloads up to 13.2 pounds.

What is the significance of the 0-3 variable drag on the E-Image GH06 75mm Pro Fluid Video Head?

The 0-3 variable drag allows you to adjust the resistance of the video head's movement, enabling you to fine-tune it to match your specific shooting requirements.

Does the E-Image GH06 75mm Pro Fluid Video Head have any features for attaching additional accessories?

Yes, the E-Image GH06 75mm Pro Fluid Video Head incorporates a 1/4"-20 threaded mounting point, which can be used to attach a monitor arm or other accessories.

What type of tripod system is the E-Image GH06 75mm Pro Fluid Video Head compatible with?

The E-Image GH06 75mm Pro Fluid Video Head is designed to fit a 75mm bowl tripod system.

Shopper : How to match this plate with Tilta shoulder mount arca-swiss or manfrotto?
Shopper : Why Did You Choose This?MONTIE K : This tripod head came highly recommended for smoother movements!JERRY R : Great FluidHead for the priceVALERIE V : High marks!!!

Reviews about this item

Review Summary

2020-12-21T07:42:19

Rated 5 out of 5

Incredible Value

It's got just about everything I need and at a price that is so appealing. It's a no-brainer.

HARVEY G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ikan GH06 Specifications

  • Head Mount/Base

    75mm / 2.95" Ball

  • Head Load Capacity

    13.2lbs / 5.99kg

  • Bubble Level

    Yes

  • Counterbalance System

    Stepped

  • Counterbalance Settings

    0-5

  • Pan Handle Style

    Telescoping to max length 570mm / 22.44"

  • Camera Plate System

    Sliding Base Plate with Safety Locks

  • Camera Plate Size

    120 x 45 x 11mm / 4.72 x 1.77 x 0.43"

  • Temperature Range

    -40 deg. C (-40 deg. F)/ +80 deg. C (176 deg. F)

  • Pan Drag Settings

    0-3

  • Pan Range

    360 deg.

  • Pan Lock

    Thumb Lock

  • Tilt Drag Settings

    0-3

  • Tilt Range

    -60 to +90

  • Tilt Lock

    Thumb Lock

  • Weight

    4lbs / 1.81kg
    Head: 3.5lbs / 1.59kg

  • UPC Code

    847983010431

About Ikan GH06

FEATURED REVIEWS

Incredible Value

By HARVEY G.

It's got just about everything I need and at a price that is so appealing. It's a no-brainer.

Before you embark on your next videography project, consider the E-Image GH06 75mm Pro Fluid Video Head, a top-tier tool designed for professional videographers and cinematographers seeking superior quality without breaking the bank. This professional-grade fluid tripod head offers a blend of robust construction, field-tested reliability, and all the essential features needed for a high-caliber performance.

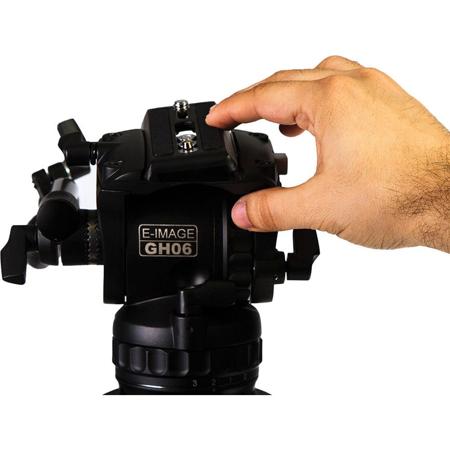

The GH06 stands out in its class with its unique Easy Lock base plate system, offering a quick dual-option capability that surpasses its competitors in the same price range. This system allows you to attach the quick release plate to the head in two ways: either by snapping in the plate from the top or by sliding the camera plate from the rear, providing flexibility and convenience during setup.

Designed to fit a 75mm bowl tripod system, the GH06 supports payloads up to 13.2 pounds, thanks to its 0-5 counterbalance. This feature, combined with the 0-3 variable drag, enables you to fine-tune the movement to match your specific shooting requirements.

Further enhancing its versatility, the GH06 features a professional fluid pan with stepped settings of 0-3, offering additional adjustability to accommodate every shooting scenario. The head also incorporates a bubble level and a 1/4"-20 threaded mounting point, making it easy to attach a monitor arm or other accessories.

In summary, the E-Image GH06 75mm Pro Fluid Video Head is a reliable, adaptable, and cost-effective solution for professional videographers and cinematographers, designed to meet and exceed your filming needs.

Ikan GH06 Features

  • Variable grades of drag 0-3
  • Counter Balance Adjustment 0-5
  • 1/4"- 20 Threaded Accessory Socket for Monitor Arm
  • Separate Pan/Tilt Locks
  • Easy-Lock Camera Plate System
  • Sliding Base plate with safety lock and retractable registration pin
  • Spirit Level
  • Dual sided Pan/Tilt arm rosettes(one included)
  • Telescoping Pan/Tilt handle

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Get smooth, professional video with this Ikan fluid video head, perfect for filmmakers.
  • Achieve precise control with adjustable pan and tilt drag settings on this video head.
  • Supports up to 13.2lbs, ideal for DSLRs and smaller camcorders using this tripod head.
  • Enjoy quick setup with the 75mm ball base & sliding plate on this professional head.
  • Durable build quality ensures reliability in temperatures from -40°F to 176°F for shoots.
  • Capture stable footage with counterbalance system; a must-have video tripod head feature.

What's in the box:

  • Ikan E-Image GH06 75mm (2.95 ") Pro Fluid Video Head
  • GB1 Pan Handle
  • GP1 Base Plate
  • Ikan 1 Year Limited Warranty
