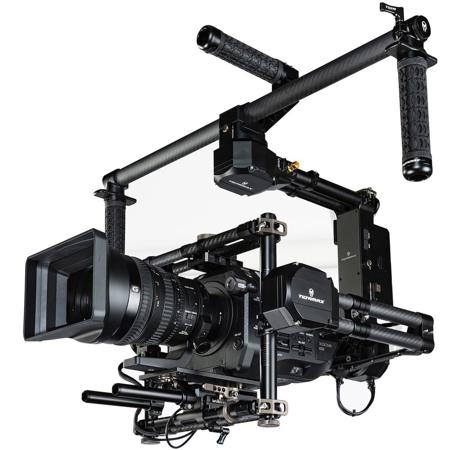

Tilta Gravity 3 Axis Handheld Gimbal System for Cinema Cameras & DSLRs
See all Tilta items

Tilta Gravity 3 Axis Handheld Gimbal System for Cinema Cameras & DSLRs

SKU: IAGRT03
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Tilta Gimbal Support System: Picture 1 regular
Tilta Float Handheld Gimbal Support System
$999.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Tilta GR-T03 Specifications

  • Compatibility

    ARRI MINI, RED WEAPON, RED EPIC, SONY F55/FS7/FS5 and CANON C300 MKII Cameras

  • Cradle head: Load weight

    Max 15kg / 33.07lbs

  • Cradle head: Angular vibration range

    +/- 0.02

  • Cradle head: Controlled rotation range

    Tilt: -90 deg. to + 30 deg.
    Roll: -90 deg. to +90 deg.
    PAN: +/- 360 deg.

  • Cradle head: Maximum control speed

    180 deg. /s

  • Cradle head: Working temperature

    -19 to 50 deg. C / -2 to 122 deg. F

  • Motion controller: Working frequency

    2.400GHz - 2.483GHz

  • Motion controller: Signal Distance

    800m / 2624.64' (Open space)

  • Motion controller: Power input

    DC1.1

  • Motion controller: Working temperature

    -19 to 50 deg. C / -2 to 122 deg. F

  • Motion controller: Working Voltage

    14.8V

  • Battery: Capacity

    2200mmA

  • Battery: Voltage

    14.8V

  • Battery: Type

    LiPo 6S

  • Battery: Work environment

    -19 to 50 deg. C / -2 to 122 deg. F

  • Charger: Input voltage

    220V - 360V

  • Charger: Output voltage

    16.8V

  • Charger: Output current

    1.5A 100W

  • Weight

    Cradle head: 2.8kg / 6.17lbs (Battery Excluded)

  • UPC Code

    847983015573

About Tilta GR-T03

Electronic products are becoming extremely popular in film industry. Nowadays they are trying to find the perfect combination of traditional machinery and electronic control. Reliable performance produces reliable pictures in order to achieve more shooting possibilities.

Tilta GR-T03 Features

  • Adapt to different environment and shooting requirements
  • Our unique gimbal adjustment design, helps you to find the best balance in minutes,makes the whole operating easy and smooth
  • Auto tune stability system installed, automatically adjust the balance, guarantees the best performance, no system crash, no drifting
  • Smart power solution system, monitoring the power supply during shooting, multiple voltage persistent outputs, can power different equipment at the same time (wireless follow focus, monitor and wireless video transmission etc.)to achieve internal and external hot-swap power supply
  • Extremely versatile, can be used for RED EPIC, SONY F55, SONY FS7 and ARRI MINI etc. Lightweight, total weight is 4KG
  • Made of pure carbon fiber, titanium alloy and high strength aluminum magnesium alloy
  • Net weight 28kg, weight load up to 15kg
  • Traditional steadycam screw type balance control faster and more accurate
  • Internal power and video signal cable, neat and clear
  • Power output can supply cameras, wireless follow focus etc
  • Magnet power interface can supply tiltamax armor man for longer shooting time
  • Motion adaptor included, can be connected to wireless video
  • Transmitter, easier to control the picture

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tilta Gravity 3 Axis Handheld Gimbal
  • Handheld Bar
  • Stand
  • 15x25mm Rod+ Adaptor
  • Baseplate
  • Battery
  • Power Supply Box (4x B-Tap)
  • Power Distribution Module (2x B-Tap)
  • 4x Cross Bar Adaptor
  • Motion Ejector
  • Motion Receiver
  • Motion Ejector Adaptor
  • 2.5mm ALLEN KEY
  • 3mm ALLEN KEY
  • 4mm ALLEN KEY
  • Handheld Motion Control Module
  • Charger
  • 2x SDI Signal Cable (50cm)
  • B-Tap to DC Cable (75cm)
  • DC to DC Cable (50cm)
  • Motion Power Cable
  • Tilta Warranty
