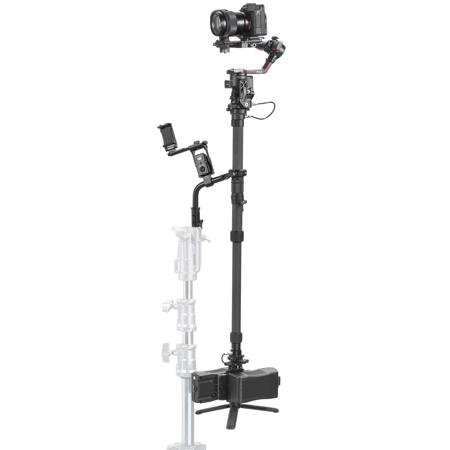

Tilta Float Handheld Gimbal Support System for DJI RS 2, V-Mount

SKU: IAGSST01V MFR: GSS-T01-V
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this handheld gimbal system, perfect for dynamic shots.
  • Experience superior stabilization with the Tilta Float System, ideal for fast-paced action scenes.
  • Enjoy extended shooting with the V-Mount battery plate, ensuring your gimbal stays powered longer.
  • The carbon fiber build offers a lightweight yet durable support, enhancing your camera's mobility.
  • Customize your setup with the included monitor bracket and cold shoe mount for added versatility.
  • Easily control your DJI RS 2 gimbal with the wireless thumb controller, offering precise adjustments.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Accessories
Specs
Protection
Q&A

Questions & Answers

GERMAN RAFAEL ALFONZO C : Hi, I’m a big guy I’d like to know if the belt for the  lumbasupport will fit to a 38 - 40 size waist? ThanksYANG S : 40" is the useable maximum! The belt itself is 47" long so you would need some overlap for the velcro to hold. Please note that the belt for the float is typically worn above the hips so measuring your stomach will be the most accurate.MARK H : YesADAM S : I’m size 42. It wasn’t anywhere close. I’d guess it maxes out at 38. And if you’ve got a gut at all, this isn’t going to work. I sent mine back the same day it showed up.MICHAEL L : Yes, it will.
Shopper : Can you switch the provided vest with the Tilta Tiltamax Armorman 3.0 Support Vest? It seems like this one would be more comfortable.
Mark T : Can you switch the provided vest with the Tilta Tiltamax Armorman 3.0 Support Vest? It seems like this one would be more comfortable.

Reviews about this item

Review Summary

2023-03-08T23:53:00

Rated 5 out of 5

Gorgeous smooth shots with this Tilta rig.

Wow they did a great job building this! Perfect for those interested in smooth floating shots. Initially first set up took me around an hour ( trying to figure out all the parts ), but once you get it, watching a few videos, you can put it together and balance in 10 minutes, you are good to go. I used it on my Sony and BMPCC 6K Pro works great!. The thumb controller needs GoPro 8 battery to power it.

TOLGA K.

2023-02-09T06:23:50

Rated 4 out of 5

A product you will learn to love

This system can be amazing in the right hands. It can seem intimidating at first. I remember getting frustrated on my first few tries for balancing. The pole is a 5 star. Very well designed with lots of options for connectivity. The vest part is where I feel is lacking a bit and could be better improved.it can be had to adjust the teeth to secure it in place. I wish they designed it so that once the vest is balanced, you don't have to mess with it when taking it off. YouTube will be your friend for tutorial. Overall, I love the system. It takes a lot of practice for smooth footage. You will be disappointed with your first shots. Do not give up. It requires consistent practice and you will be in love eventually.

baboucarr m.

2022-11-07T13:35:25

Rated 5 out of 5

Tilta float

Great product

KELVIN L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tilta Float Handheld Gimbal Support System for DJI RS 2, V-Mount Specifications

Float System Support Vest

Float System Support Vest

Jump to...
  • Vest Size

    23.62 - 47.24" (600-1200mm)

  • Extension

    Built-in Tilta standard 15mm quick release baseplate

Float System Arm

Jump to...
  • Connector post diameter

    12mm

  • Maximum payload capacity

    10kg

  • Up and down movement range

    800mm ( +/-4300)

Float System Post

Jump to...
  • Material

    Carbon fiber and aluminum

  • Mount

    NATO rail

  • Power input/output

    2-pin LEMO

  • Length range

    19.68 - 39.37" (500-1000mm)

Wireless Thumb Controller for RS2

Jump to...
  • Mount

    Cold shoe

Wireless Thumb Controller for RS3

Jump to...
  • Module

    2.4 GHz wireless module

Wireless Thumb Controller for RS4

Jump to...
  • Remote control range

    50-70m (Dependent on the location, there might be a slight variance.)

Float System

Jump to...
  • Material

    Carbon fiber, aluminum, plastic, and nylon fabric

  • Dimensions

    32.87 x 13.58 x 8.26" (835 x 345 x 210mm)

  • Weight

    22.04 lbs (10kg)

  • UPC Code

    617737378786

5 Accessories for Tilta Float Handheld Gimbal Support System for DJI RS 2, V-Mount

  • All Accessories (5)
  • Batteries & Power Supply (2)
  • Brackets & Mounts (3)

Designed For Use With:

  • DJI Ronin-S

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Tilta Float Handheld Gimbal Support System for DJI RS 2, V-Mount

FEATURED REVIEWS

Gorgeous smooth shots with this Tilta rig.

By TOLGA K.

Wow they did a great job building this! Perfect for those interested in smooth floating shots. Initially first set up took me around an hour ( trying to figure out all the parts ), but once you get it, watching a few videos, you can put it together and balance in 10 minutes, you are good to go. I used it on my Sony and BMPCC 6K Pro works great!. The thumb controller needs GoPro 8 battery to power it.

Tilta float

By KELVIN L.

Great product

The Tilta Float System works in conjunction with the DJI RS 2 gimbal to provide a small, compact camera stabilizer system to allow you to accomplish smooth cinematic camera movements with smaller camera setups. The counterweight-based post provides further stabilization for your setup beyond what the gimbal is already doing to allow for the smoothest possible free flowing camera movement imaginable. Also, the spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating times before the user gets fatigued.

A Design With Compatibility

Wide Range of Usage
Pairing with a gimbal is all you need in order to achieve all of the operating needs of the industry's newest stabilizer systems. You can easily switch between high and low modes.

Compact and Portable
When compared to the traditional Steadicam system, the Tilta Float System is built with carbon fiber and lightweight aluminum materials. The camera operator no longer needs to travel with heavy ooperating equipment. It sets your body free from the burden and extends the duration of operation.

This compact and inexpensive stabilizer system is quick and easy to assemble, pack, and transport.

Highly modular and detachable design. Each components can be purchased individually.

Tilta Float Handheld Gimbal Support System for DJI RS 2, V-Mount Features

  • Designed for the DJI RS 2 Gimbal
  • Float System is built with carbon fiber and lightweight aluminum materials
  • Stabilizer system is quick and easy to assemble
  • Highly modular and detachable design

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve smooth, professional footage with this handheld gimbal system, perfect for dynamic shots.
  • Experience superior stabilization with the Tilta Float System, ideal for fast-paced action scenes.
  • Enjoy extended shooting with the V-Mount battery plate, ensuring your gimbal stays powered longer.
  • The carbon fiber build offers a lightweight yet durable support, enhancing your camera's mobility.
  • Customize your setup with the included monitor bracket and cold shoe mount for added versatility.
  • Easily control your DJI RS 2 gimbal with the wireless thumb controller, offering precise adjustments.

What's in the box:

  • Flow System Arm (GSS-T01-ARM)
  • Flow System Post (GSS-T01-PST)
  • Power Supply Base Plate (TGA-PBP) w/Cable (TCB-DTP-2LE-40)
  • V-Mount Battery Plate (GSS-T01-BPV)
  • 2-Pin Lemo Cable (20 cm) (TCB-2LE-2LE-20)
  • Support Vest (GSS-T01-SV)
  • Thumb Controller (GSS-T01-WTC)
  • Control Receiver Module (TGA-WCR)
  • Monitor Bracket (GSS-T01-MB)
  • Carrying Case (GSS-T01-CC)
  • Cold Shoe Phone Mounting Bracket (TA-PMB-B)
  • Tool Kit (GSS-T01-TK)
  • Tilta 2 Year Limited Warranty on Machine Parts and 1 Year Limited
