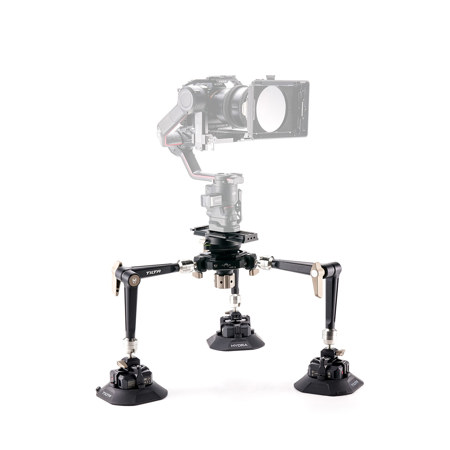

Tilta Hydra Articulating Car Mounting System with 3x 4.5" Electronic Suction Cup

SKU: IAHDAT11A MFR: HDA-T11-A
Earn VIP Reward Points

Key Features

  • Achieve smooth, dynamic car shots with this complete Tilta Hydra mounting system.
  • Enjoy strong, secure camera mounting with triple 4.5" electronic suction cups.
  • Quickly adjust your setup using the heavy-duty articulating arm for perfect angles.
  • Reduce vibrations and stabilize footage with professional-grade suction cup technology.
  • Easily adapt to different setups with the 75mm/100mm ball adapter included in kit.
  • Safely transport your car mount kit in the provided custom soft carrying case.
See More Product Details
Special Order?Estimated to Ship: 10/05/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Tilta Hydra Articulating Car Mounting System with 3x 4.5" Electronic Suction Cup Specifications

General

General

Jump to...
  • Color

    Black

  • Mounting

    3x Electronic Suction Cup with NATO Mounting Bracket
    1x 75/100mm Bowl Adapter
    1x 1/4"-20 & 3/8"-16 Dual Screw
    1x Manfrotto Quick Release Module
    1x Manfrotto Quick Release Extender Plate

  • Material

    Aluminum-alloy, Stainless-steel, Rubber, ABS

  • Load Capacity

    Electronic Suction Cup: 44 lbs (20kg)
    Arm: 17.5 lbs (7.93kg)

  • Dimensions

    Kit: 14.57 x 13.11 x 17.56" (37 x 33.3 x 44.6cm)

  • Weight

    Kit: 9.81 lbs (4.45kg)

Battery

Jump to...
  • Battery Capacity

    2000 mAh

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

Electronic Suction Cup

Jump to...
  • Material

    ABS, Rubber, Silicone

  • Dimensions

    5.75 x 5.75 x 2.15" (14.6 x 14.6 x 5.45cm)

  • Weight

    12.34 oz (350g)

  • UPC Code

    810153170099

About Tilta Hydra Articulating Car Mounting System with 3x 4.5" Electronic Suction Cup

Experience unparalleled stability and versatility with the Tilta Hydra Articulating Car Mounting System, featuring three advanced 4.5" Electronic Suction Cups. This innovative system is engineered for capturing dynamic interior and exterior car shots across diverse environments, boasting a robust weight capacity of 44 lbs. The core of this system is a 75mm ball head designed with a low center of gravity, offering up to 15 degrees of horizontal adjustment for precise camera positioning. Compatible with other 75mm tripod heads, it supports Arca and Manfrotto quick release plates, making it ideal for mirrorless and lightweight cinema cameras, with or without cages.

Crafted from high-strength aluminum alloy and stainless steel, each heavy-duty articulating arm can support up to 17.5 lbs and features a reversible locking knob for user-friendly operation. The Electronic Suction Cups are equipped with a high-performance motor and real-time air pressure monitoring, ensuring secure attachment by automatically adjusting suction in case of pressure loss. These suction cups are powered by a 2000mAh battery, providing over 14 hours of continuous operation, with the option for extended power via a 5V/1A USB-C external supply.

The system's quick installation is facilitated by NATO quick-release components and reserved expansion spots, enhancing setup efficiency. The Manfrotto Quick Release Extender Plate offers multiple mounting points, ensuring compatibility with camera cages, L-brackets, and similar accessories, while preventing accidental disconnection. The interchangeable 75/100mm bowl design allows for seamless integration with most standard ball heads, featuring dual 1/4" and 3/8" screws for versatile mounting options.

The Hydra Electronic Suction Cup's innovative design increases the contact area by 20% compared to standard models, providing enhanced stability and reliability. With an LCD display for real-time status updates and a motor that completes electronic suction within 5 seconds, this system ensures quick and secure setup. Whether shooting inside or outside a vehicle, the Tilta Hydra Articulating Car Mounting System delivers exceptional performance and peace of mind, allowing you to focus on capturing the perfect shot.

Tilta Hydra Articulating Car Mounting System with 3x 4.5" Electronic Suction Cup Features

  • Articulating Arms Help Position the Camera in Unique Angles Both Inside and Outside of Vehicles
  • 75mm Bowl Head Supports 15 Degree of Adjustments and Accommodates other 75mm Tripod Heads
  • Manfrotto & Arca Mounting Options Supports a Wide Range of Cameras and Camera Cages
  • Heavy Duty Car Mounting System Supports Payloads up to 44 lbs While Remaining Lightweight
  • Electronic Powered Suction Cups Utilizes Battery to Automatically Activate Suction in the Event of a Leak
  • Stable and Secure Triangular Support Structure
  • Easy-to-Use NATO Quick Release System
  • User-Friendly Car Mounting System

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve smooth, dynamic car shots with this complete Tilta Hydra mounting system.
  • Enjoy strong, secure camera mounting with triple 4.5" electronic suction cups.
  • Quickly adjust your setup using the heavy-duty articulating arm for perfect angles.
  • Reduce vibrations and stabilize footage with professional-grade suction cup technology.
  • Easily adapt to different setups with the 75mm/100mm ball adapter included in kit.
  • Safely transport your car mount kit in the provided custom soft carrying case.

What's in the box:

  • 3x 4.5" Electronic Suction Cup with NATO Mounting Bracket
  • 3x 11" Heavy Duty Articulating Arm
  • 75mm/100mm Ball Adapter
  • 75mm Ball Head Tie-Down
  • Manfrotto Quick Release Extender Plate
  • Manfrotto Quick Release Module
  • 1/4" Allen Key
  • 2.5mm Allen Key
  • Soft Carrying Case
  • Tilta 2 Year Limited Warranty
