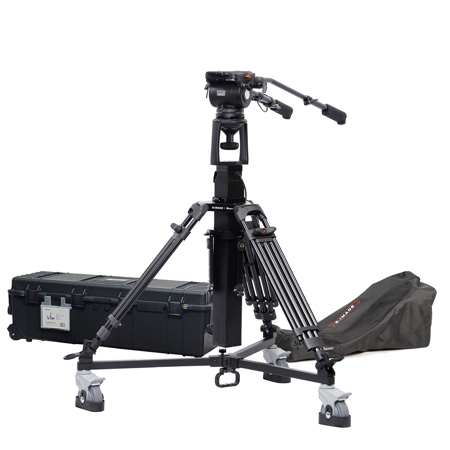

Ikan M-GH20-PEDESTAL 3-Section Motorized Pedestal System with GH20 Fluid Head and EI-7004B Dolly

SKU: IAMGH20 MFR: M-GH20-PEDESTAL-TK
Earn VIP Reward Points

Key Features

  • Achieve perfect camera stability with this robust motorized pedestal system, ideal for professional video production.
  • Experience effortless height adjustments from 42.9" to 97.6" with the smooth 3-section motorized pedestal.
  • Enjoy superior portability and seamless movement on set with the included EI-7004B dolly and wheeled hard case.
  • Benefit from precise camera control and fluid motion with the GH20 fluid head, supporting up to 44 lbs.
  • Enhance your workflow with the wired remote controller, featuring memory functions for quick height recall.
  • Ensure durability and reliable performance for all your filming needs with this professional-grade camera stand.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan GH20 Pedestal Specifications

Pedestal System

Pedestal System

Jump to...
  • Max. Payload

    44 lbs (20kg)

  • Raising / Lowering Speed

    40mm/s

  • Leg Stages/Sections

    2/3

  • Camera Plate Screw Size

    1/4" and 3/8"

  • Column Interface

    P13 (QR adapter with plate)

  • Column Section

    3

  • Column Size

    2.75 x 2.75" (70 x 70mm)

  • Controller Cable

    6.56' (2m)

  • Motor Cable

    8.2' (2.5m)

  • Motor Cable Extension

    8.2' (2.5m)

  • Stroke

    25.6" (65cm)

  • Height Range

    42.9 to 97.6" (109 to 248cm)

  • Transport Length

    35.2" (89.5cm)

  • Weight

    47.5 lbs (21.6kg)

Fluid Head

Jump to...
  • Payload Capacity

    44 lbs (20kg)

  • Bowl Size

    100mm

  • Counterbalance System

    Stepped, 1-8

  • Pan Drag Settings

    Fixed

  • Tilt Drag Settings

    Fixed

  • Tilt Lock

    Thumb Lock

  • Tilt Range:

    -60 Degree /+90 Degree

  • Bubble Level

    Yes

  • Pan Handle Length Range

    16.7 to 24" (42.41 to 60.96cm)

  • Sliding Plate Range

    7.87" (200mm)

  • Temperature Range

    -40 to 194 Degree F (-40 to 90 Degree C)

  • Camera Plate Length

    8" (203.2mm)

  • Weight

    7.7 lbs (3.5kg)
    With Pan Handles: 9.5 lbs (4.30kg)

  • Material

    Legs: Aluminum
    Wheels: Rubber
    Screws: Steel

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100 mm)

  • Weight

    15 lbs (6.8kg)

Power Supply Unit

Jump to...
  • Input

    100-240V, 50/60Hz, 130W

  • Output

    24V, 5A

  • Duty cycle

    10%, Max 2min operate / Min, 18min stop

  • Dimensions

    5.4 x 3.0 x 1.4" (137 x 77 x 35mm)

  • Weight

    9.52 oz (270g)

Wired Remote Controller

Jump to...
  • Max. voltage

    36V DC

  • Max. current

    50mA

  • Memory function

    3 Memory Buttons

  • Ambient temperature

    Indoors: 41 to 104 Degree F (5 to 40 Degree C)

  • Feature

    LED display actual height

  • Length

    Wire: 6.56' (2m) (with 8-pin crystal plus)

  • Dimensions

    5.3 x 1.2 x 0.7" (134 x 30 x 18mm)

  • Weight

    2.82 oz (80g)

General

Jump to...
  • Country of Origin

    China

  • Certificates

    UKCA, CE

  • UPC Code

    847983037988

About Ikan GH20 Pedestal

The M-GH20-PEDESTAL-TK is designed for traditional camera setups, offering smooth motorized height adjustments and supporting up to 44 lbs of equipment for stable operation. It includes a wired remote control capable of adjusting the column's height using up & down buttons and preset height settings. With its robust design and flexible functionality, it ensures a solid and precise platform for various shooting scenarios. This pedestal system includes a hard case with padded foam and wheels.

Smooth Motorized Elevation | Remote-Control Convenience
At the core of the M-GH20-PEDESTAL-TK is a motorized elevation system that enables effortless height adjustments with just a button press. Operated through a wired remote controller, users can fine-tune the height in real-time, ensuring accurate adjustments during shoots. The ease of use provided by the remote ensures that the operator can focus on capturing the perfect shot without the need for manual interference.

High Payload Capacity | Maximum Stability
With a payload capacity of 44 lbs, the M-GH20-PEDESTAL-TK can securely support a variety of camera systems and accessories, including Ikan's largest & heaviest teleprompter systems. The system is designed to handle a wide range of traditional cameras and related gear, ensuring both flexibility and durability in demanding environments.

Extended Working Height
The M-GH20-PEDESTAL-TK allows users to shoot at elevated angles with its maximum working height of up to 8.1 feet. Its column can be adjusted smoothly, with a stroke of 23.6 inches, making it suitable for dynamic movements or static high-angle shots, expanding the creative possibilities for any video production.

Controller Clamp
The height adjustment controller can be mounted directly onto the panhandle thanks to an included clamp. This makes height adjustment in-between shots or while filming much more convenient. Videographers can perform vertical parallax camera movements thanks to the smooth motion of the motorized column and convenient placement of the height controller.

Quick Positioning with Preset Height Positions
Efficiency is further enhanced by the system's ability to store and recall three preset height positions. This feature enables quick switching between frequently used elevations, saving valuable time during shoots that require repetitive positioning. The intuitive wired remote controller makes it easy to program and select these presets, ensuring consistent framing and composition across different takes.

Counterbalance
Counterbalance is a crucial feature in video camera tripods, enhancing stability and facilitating smooth camera movements. The fluid head provides smooth panning and tilting and provides 8 levels of adjustable counterbalance up to 44 lbs.

100mm Bowl
The fluid head includes a 100mm bowl mount with a twist lock to secure the teleprompter and camera payload. This standardized bowl size serves as a connection point between the tripod legs and the video head, providing a secure and versatile platform.

Dual Panhandles
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7 to 24".

Enhanced Stability with Quick-Release Middle Spreader
The M-GH20-PEDESTAL-TK provides stability with its quick-release middle spreader. This adjustable spreader enhances the tripod's rigidity, reducing vibrations and providing a solid foundation for the camera setup. The design allows for quick adjustments, enabling operators to set up and break down the system efficiently.

Mono-Lock Mechanism
To speed up the setup process, the Mono-Lock feature simplifies height adjustments by allowing both tripod legs to be adjusted simultaneously with a single twist.

Accessory Integration
The system includes standard 1/4" and 3/8" screw holes, providing the flexibility to attach various accessories such as monitors, microphones, or lights directly to the tripod. This integration reduces the need for additional stands and streamlines the overall equipment setup.

Heavy-Duty Rolling Case
This motorized pedestal comes included with a padded foam hard case with wheels, making it ideal for travelling between different filming locations. The case has six locks and a folding handle.


- GH20 Fluid Head -

Integrated Bubble Level
A built-in bubble level on the fluid head ensures quick and accurate leveling for efficient setup.

Real Fluid Damping System
Features 0-8 steps of Counterbalance adjustment. This offers precise counterbalance tuning to match your camera's payload, allowing smooth, resistance-free movement as if the camera were weightless.

P3 Quick Release Plate
Includes the P3 quick release plate, compatible with the GH20 head. Designed for fast setup and secure mounting.

Sliding Plate Mechanism
The sliding design enables easy forward and backward adjustment with a 6" slide range, simplifying balance and operation.

Features
• Payload Range 44 lbs (20kg)
• Counterbalance Adjustment: 0-8
• 100mm Ball Bowl Size
• Bubble Level
• Dual Sided Pan/Tilt Arm Rosette Mounts
• Pan & Tilt Locks / Fixed Pan & Tilt Drag Setting
• Heavy Duty Telescoping Pan/Tilt Arm


- EI-7004B Dolly -
The Medium Tripod Dolly with Cable Guards allows for quick and smooth movement for tripods weighing up to 132 lbs. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. It's designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.

This tripod dolly features 4"-diameter, non-marring rubber wheels with individual brakes, and a 37" working base diameter. Once removed from your tripod legs, it folds for storage or transport.

Features
• Fits E-Image Tripods with Dual Spikes
• 132 lbs Load Capacity
• Non-Marring 4" Rubber Wheels
• Individual Wheel Brakes

Ikan GH20 Pedestal Features

  • Smoothly Adjusts Height of Camera Payload from 42.9 to 97.6"
  • Motorized Center Column with Fluid Head & Dolly
  • 44 lbs Payload
  • Adjustable Counterbalance
  • Silent Motor
  • Stroke Length: 25.6"
  • Remote Control Clamps to Panhandle

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve perfect camera stability with this robust motorized pedestal system, ideal for professional video production.
  • Experience effortless height adjustments from 42.9" to 97.6" with the smooth 3-section motorized pedestal.
  • Enjoy superior portability and seamless movement on set with the included EI-7004B dolly and wheeled hard case.
  • Benefit from precise camera control and fluid motion with the GH20 fluid head, supporting up to 44 lbs.
  • Enhance your workflow with the wired remote controller, featuring memory functions for quick height recall.
  • Ensure durability and reliable performance for all your filming needs with this professional-grade camera stand.

What's in the box:

  • Motorized Tripod
  • Center Column
  • GH20 Fluid Head
  • Quick Release Plate
  • 2x GB4 Pan Handle
  • EI-7004B Dolly
  • Power Supply Unit
  • 9.84' Power Supply Cable
  • 8.2' Motor Cable
  • 8.2' Motor Extension Cable
  • 6.56' Wired Remote Controller
  • Remote Controller Panhandle Clamp
  • Wheeled Hard Case with Padded Foam
  • Dolly Carrying Bag
  • User Manual
  • Ikan 1 Year Limited Warranty
