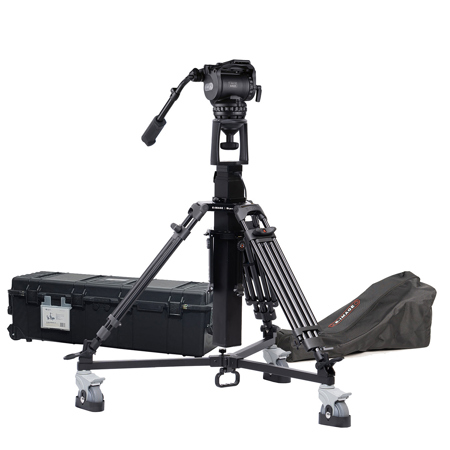

Ikan M-GH25-PEDESTAL 3-Section Motorized Pedestal System with GH25 Fluid Head and EI-7004B Dolly

SKU: IAMGH25 MFR: M-GH25-PEDESTAL-TK
Earn VIP Reward Points

Key Features

  • Achieve perfect camera stability with this motorized pedestal system, supporting up to 61.7 lbs.
  • Effortlessly adjust camera height from 43.7" to 98.4" using the smooth, motorized controls.
  • Experience superior video production with the included GH25 Fluid Head for precise camera movements.
  • Move your setup with ease using the robust EI-7004B Dolly, featuring lockable wheels for secure positioning.
  • Enhance your workflow with a wired remote controller, offering memory functions for quick height recall.
  • Transport your gear safely with the wheeled hard case and padded foam, ensuring durability and protection.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan GH25 Pedestal Specifications

Pedestal System

Pedestal System

Jump to...
  • Max. Payload

    61.7 lbs (28kg)

  • Raising / Lowering Speed

    40mm/s

  • Leg Stages/Sections

    2/3

  • Camera Plate Screw Size

    1/4" and 3/8"

  • Column Interface

    P13 (QR adapter with plate)

  • Column Section

    3

  • Column Size

    2.75 x 2.75" (70 x 70mm)

  • Controller Cable

    6.56' (2m)

  • Motor Cable

    8.2' (2.5m)

  • Motor Cable Extension

    8.2' (2.5m)

  • Stroke

    25.6" (65cm)

  • Height Range

    43.7 to 98.4" (111 to 250cm)

  • Transport Length

    35.2" (89.5cm)

  • Weight

    49 lbs (22.3kg)

Fluid Head

Jump to...
  • Payload Capacity

    61.7 lbs (28kg)

  • Bowl Size

    100mm

  • Counterbalance System

    Stepped, 1-15

  • Pan Drag Settings

    0-7

  • Tilt Drag Settings

    0-7

  • Tilt Lock

    Thumb Lock

  • Tilt Range:

    -80 Degree /+90 Degree

  • Bubble Level

    Yes - Illuminated

  • Pan Handle Length Range

    16.7 to 24" (42.41 to 60.96cm)

  • Sliding Plate Range

    5.7" (145mm)

  • Temperature Range

    -40 to 194 Degree F (-40 to 90 Degree C)

  • Camera Plate Length

    6.3" (160mm)

  • Weight

    9.2 lbs (4.2kg)
    With Pan Handles: 11 lbs (4.98kg)

  • Material

    Legs: Aluminum
    Wheels: Rubber
    Screws: Steel

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100 mm)

  • Weight

    15 lbs (6.8kg)

Power Supply Unit

Jump to...
  • Input

    100-240V, 50/60Hz, 130W

  • Output

    24V, 5A

  • Duty cycle

    10%, Max 2min operate / Min, 18min stop

  • Dimensions

    5.4 x 3.0 x 1.4" (137 x 77 x 35mm)

  • Weight

    9.52 oz (270g)

Wired Remote Controller

Jump to...
  • Max. voltage

    36V DC

  • Max. current

    50mA

  • Memory function

    3 Memory Buttons

  • Ambient temperature

    Indoors: 41 to 104 Degree F (5 to 40 Degree C)

  • Feature

    LED display actual height

  • Length

    Wire: 6.56' (2m) (with 8-pin crystal plus)

  • Dimensions

    5.3 x 1.2 x 0.7" (134 x 30 x 18mm)

  • Weight

    2.82 oz (80g)

General

Jump to...
  • Country of Origin

    China

  • Certificates

    CE

  • UPC Code

    847983037995

About Ikan GH25 Pedestal

The M-GH25-PEDESTAL-TK is designed for traditional camera setups, offering smooth motorized height adjustments and supporting up to 55 lbs of equipment for stable operation. It includes a wired remote control capable of adjusting the column's height using up & down buttons and preset height settings. With its robust design and flexible functionality, it ensures a solid and precise platform for various shooting scenarios. This pedestal system includes a hard case with padded foam and wheels.

Smooth Motorized Elevation | Remote-Control Convenience
At the core of the M-GH25-PEDESTAL-TK is a motorized elevation system that enables effortless height adjustments with just a button press. Operated through a wired remote controller, users can fine-tune the height in real-time, ensuring accurate adjustments during shoots. The ease of use provided by the remote ensures that the operator can focus on capturing the perfect shot without the need for manual interference.

High Payload Capacity | Maximum Stability
With a payload capacity of 55 lbs, the M-GH25-PEDESTAL-TK can securely support a variety of camera systems and accessories, including Ikan's largest & heaviest teleprompter systems. The system is designed to handle a wide range of traditional cameras and related gear, ensuring both flexibility and durability in demanding environments.

Extended Working Height
The M-GH25-PEDESTAL-TK allows users to shoot at elevated angles with its maximum working height of up to 8.5 feet. Its column can be adjusted smoothly, with a stroke of 23.6 inches, making it suitable for dynamic movements or static high-angle shots, expanding the creative possibilities for any video production.

Controller Clamp
The height adjustment controller can be mounted directly onto the panhandle thanks to an included clamp. This makes height adjustment in-between shots or while filming much more convenient. Videographers can perform vertical parallax camera movements thanks to the smooth motion of the motorized column and convenient placement of the height controller.

Quick Positioning with Preset Height Positions
Efficiency is further enhanced by the system's ability to store and recall three preset height positions. This feature enables quick switching between frequently used elevations, saving valuable time during shoots that require repetitive positioning. The intuitive wired remote controller makes it easy to program and select these presets, ensuring consistent framing and composition across different takes.

Drag/Counterbalance
The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening. The Drag & Counterbalance combined are a crucial feature in video camera tripods, enhancing stability and facilitating smooth camera movements.

Slide Range
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range. By allowing horizontal adjustments of the camera position on the tripod plate, this feature enables precise counterbalancing. Videographers can fine-tune the distribution of weight to achieve equilibrium, ensuring that the counterbalance system effectively stabilizes the camera setup, especially when using heavy lenses or accessories.

Pan & Tilt Locks
The fluid head features individual locks for both the pan and tilt. These locks allow videographers to fix the horizontal panning and vertical tilting axes, ensuring stability and eliminating unintended shifts in framing.

Dual Panhandles
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24".

100mm Bowl
The fluid head includes a 100mm bowl mount with a twist lock to secure the teleprompter and camera payload. This standardized bowl size serves as a connection point between the tripod legs and the video head, providing a secure and versatile platform.

Enhanced Stability with Quick-Release Middle Spreader
The M-GH25-PEDESTAL-TK provides stability with its quick-release middle spreader. This adjustable spreader enhances the tripod's rigidity, reducing vibrations and providing a solid foundation for the camera setup. The design allows for quick adjustments, enabling operators to set up and break down the system efficiently.

Mono-Lock Mechanism
To speed up the setup process, the Mono-Lock feature simplifies height adjustments by allowing both tripod legs to be adjusted simultaneously with a single twist.

Accessory Integration
The system includes standard 1/4" and 3/8" screw holes, providing the flexibility to attach various accessories such as monitors, microphones, or lights directly to the tripod. This integration reduces the need for additional stands and streamlines the overall equipment setup.

Heavy-Duty Rolling Case
This motorized pedestal comes included with a padded foam hard case with wheels, making it ideal for travelling between different filming locations. The case has six locks and a folding handle.


- GH25 Fluid Head -
The GH25 head is designed and built for professional videographers and cinematographers who want real quality at an affordable price. The professional fluid tripod head delivers field-tested reliability, solid construction, and all the features required for professional performance.

The GH25's features include a 100mm ball head that supports large capacity payloads and a greater counterbalance range that rises above competitors in its price range and class.

The E-Image GH25 will fit a 100mm bowl tripod system. It has a 0-7 stepped Tilt drag system and a 1-15 counterbalance system providing maximum adjustability for differently configured payloads of up to 61.7 pounds. A professional fluid pan with stepped settings of 0-7 provides further adjustability to meet every shooting contingency. The head incorporates an illuminated bubble level, and a 1/4"-20 threaded mounting point for a monitor arm or other accessories.

Features
• Payload Range 61.7 lbs (28kg)
• 0-7 Grades of Drag for Tilt and Pan
• Counter Balance Adjustment 1-15
• Parking Hole for Monitor Arm
• Bowl Size: 100mm Ball Level Feature
• Sliding Base Plate with Safety Lock and Retractable Registration Pin
• Illuminated Spirit Level
• Dual Sided Pan/Tilt Arm Rosette Mounts
• Pan and Tilt Locks
• Heavy Duty Telescoping Pan/Tilt Arm


- EI-7004B Dolly -
The Medium Tripod Dolly with Cable Guards allows for quick and smooth movement for tripods weighing up to 132 lbs. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. It's designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.

This tripod dolly features 4"-diameter, non-marring rubber wheels with individual brakes, and a 37" working base diameter. Once removed from your tripod legs, it folds for storage or transport.

Features
• Fits E-Image Tripods with Dual Spikes
• 132 lbs Load Capacity
• Non-Marring 4" Rubber Wheels
• Individual Wheel Brakes

Ikan GH25 Pedestal Features

  • Smoothly Adjusts Height of Camera Payload from 43.7 to 98.4"
  • Motorized Center Column with Fluid Head & Dolly
  • 61.7 lbs Payload
  • Adjustable Counterbalance and Pan & Tilt Drag
  • Silent Motor
  • Stroke Length: 25.6"
  • Remote Control Clamps to Panhandle

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve perfect camera stability with this motorized pedestal system, supporting up to 61.7 lbs.
  • Effortlessly adjust camera height from 43.7" to 98.4" using the smooth, motorized controls.
  • Experience superior video production with the included GH25 Fluid Head for precise camera movements.
  • Move your setup with ease using the robust EI-7004B Dolly, featuring lockable wheels for secure positioning.
  • Enhance your workflow with a wired remote controller, offering memory functions for quick height recall.
  • Transport your gear safely with the wheeled hard case and padded foam, ensuring durability and protection.

What's in the box:

  • Motorized Tripod
  • Center Column
  • GH25 Fluid Head
  • Quick Release Plate
  • 2x GB4 Pan Handle
  • EI-7004B Dolly
  • Power Supply Unit
  • 9.84' Power Supply Cable
  • 8.2' Motor Cable
  • 8.2' Motor Extension Cable
  • 6.56' Wired Remote Controller
  • Remote Controller Panhandle Clamp
  • Wheeled Hard Case with Padded Foam
  • Dolly Carrying Bag
  • User Manual
  • Ikan 1 Year Limited Warranty
