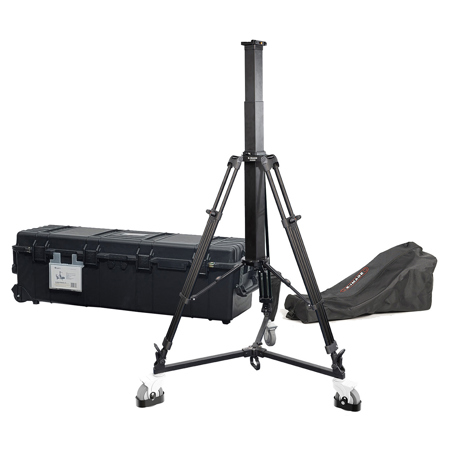

Ikan M-PTZ-PEDESTAL 3-Section Motorized Pedestal System with EI-7004B Dolly for PTZ Camera and Teleprompter

SKU: IAMPTZ MFR: M-PTZ-PEDESTAL-TK
Earn VIP Reward Points

Key Features

  • Achieve perfect shots with exceptional stability, supporting up to 66 lbs for your camera gear.
  • Effortlessly adjust camera height from 3.26 to 9.15 feet, enhancing your video production versatility.
  • Experience smooth, precise motorized control, making camera positioning simple and efficient.
  • Enjoy superior portability with the included wheeled hard case and dolly bag for easy transport.
  • Benefit from robust durability, ensuring reliable performance for all your professional video projects.
  • Simplify your workflow with intuitive controls and a wired remote, offering ease of use on set.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan PTZ Pedestal Specifications

Pedestal System

Pedestal System

Jump to...
  • Max. Payload

    66 lbs (30kg)

  • Raising / Lowering Speed

    40mm/s

  • Leg Stages/Sections

    2/3

  • Temperature Range

    -50 to 104 Degree F (-45.55 to 40 Degree C)

  • Camera Plate Screw Size

    1/4" and 3/8"

  • Column Interface

    P13 (QR adapter with plate)

  • Column Section

    3

  • Column Size

    2.75 x 2.75" (70 x 70mm)

  • Controller Cable

    6.56' (2m)

  • Motor Cable

    8.2' (2.5m)

  • Motor Cable Extension

    8.2' (2.5m)

  • Height Range

    3.26 to 9.15' (0.99 to 2.79m)

  • Transport Length

    36.2" (92cm)

  • Stroke

    25.6" (65cm)

  • Weight

    40.5 lbs (18.4kg)

  • Material

    Legs: Aluminum
    Wheels: Rubber
    Screws: Steel

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100 mm)

  • Weight

    15 lbs (6.8kg)

Power Supply Unit

Jump to...
  • Input

    100-240V, 50/60Hz, 130W

  • Output

    24V, 5A

  • Duty cycle

    10%, Max 2min operate / Min, 18min stop

  • Dimensions

    5.4 x 3.0 x 1.4" (137 x 77 x 35mm)

  • Weight

    9.52 oz (270g)

Wired Remote Controller

Jump to...
  • Max. voltage

    36V DC

  • Max. current

    50mA

  • Memory function

    3 Memory Buttons

  • Ambient temperature

    Indoors: 41 to 104 Degree F (5 to 40 Degree C)

  • Feature

    LED display actual height

  • Length

    Wire: 6.56' (2m) (with 8-pin crystal plus)

  • Dimensions

    5.3 x 1.2 x 0.7" (134 x 30 x 18mm)

  • Weight

    2.82 oz (80g)

General

Jump to...
  • Country of Origin

    China

  • Certificates

    CE

  • UPC Code

    847983037971

About Ikan PTZ Pedestal

The M-PTZ-PEDESTAL-TK Motorized Elevation System is designed for PTZ cameras and PTZ teleprompters, offering smooth, motorized height adjustments and supporting up to 66 lbs of equipment for stable operation. It includes a wired remote controller capable of controlling the column using an up & down arrow button, or with quick preset position buttons.

With the 2-stage legs and center column fully extended, you can shoot video at heights up to 9.1 ft. Whether using this pedestal for corporate AV offices, studio broadcast, or capturing a live performance, the M-PTZ-PEDESTAL-TK offers the flexibility and performance to meet and exceed expectations. This pedestal system includes a padded foam hard case with wheels.

Smooth Motorized Elevation | Remote-Control Convenience
At the heart of the M-PTZ-PEDESTAL-TK is its smooth motorized elevation system, which allows effortless height adjustments with the simple push of a button. Operated via a wired remote controller equipped with a clear display screen, users can monitor and adjust elevation settings accurately in real-time. The remote-control convenience not only streamlines the shooting process but also minimizes physical input, enabling operators to focus on capturing the perfect shot without manual interference.

High Payload Capacity | Maximum Stability
With a payload capacity of 66lbs, not only can you mount a PTZ camera and accessories, but also Ikan's PTZ teleprompters. The robust construction guarantees that the equipment remains secure, providing peace of mind during critical shooting moments.

Extended Working Height
With a maximum working height of 9.2 feet when used with a dolly, the M-PTZ-PEDESTAL-TK allows operators to capture unique shooting angles that add depth to the footage. After adjusting the height of the legs by-hand, the pedestal system features a motorized stroke of 23.6 inches, offering significant vertical movement to adapt to various shooting requirements, from low-angle shots to elevated viewpoints. The motorized column operates so smoothly that it can be used to create vertical camera movements suitable for live broadcasts.

Quick Positioning with Preset Height Positions
Efficiency is further enhanced by the system's ability to store and recall three preset height positions. This feature enables quick switching between frequently used elevations, saving valuable time during shoots that require repetitive positioning. The intuitive wired remote controller makes it easy to program and select these presets, ensuring consistent framing and composition across different takes.

Mono-Lock Mechanism
To speed up the setup process, the Mono-Lock feature simplifies height adjustments by allowing both tripod legs to be adjusted simultaneously with a single twist.

Quick-Release Adapter
This QR Adapter allows for quick and secure attachment of cameras. This quick-release mechanism enhances efficiency, particularly when swapping cameras or adjusting configurations on the fly.

Accessory Integration
The system includes standard 1/4" and 3/8" screw holes, providing the flexibility to attach various accessories such as monitors, microphones, or lights directly to the tripod. This integration reduces the need for additional stands and streamlines the overall equipment setup.

Enhanced Stability with Quick-Release Middle Spreader
M-PTZ-PEDESTAL-TK provides stability with its quick-release middle spreader. This adjustable spreader enhances the tripod's rigidity, reducing vibrations and providing a solid foundation for the camera setup. The design allows for quick adjustments, enabling operators to set up and break down the system efficiently.

Heavy-Duty Rolling Case
This motorized pedestal comes included with a padded foam hard case with wheels, making it ideal for travelling between different filming locations. The case has six locks and a folding handle.


- EI-7004B Dolly -
The Medium Tripod Dolly with Cable Guards allows for quick and smooth movement for tripods weighing up to 132 lbs. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. It's designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.

This tripod dolly features 4"-diameter, non-marring rubber wheels with individual brakes, and a 37" working base diameter. Once removed from your tripod legs, it folds for storage or transport.

Features
• Fits E-Image Tripods with Dual Spikes
• 132 lbs Load Capacity
• Non-Marring 4" Rubber Wheels
• Individual Wheel Brakes

Ikan PTZ Pedestal Features

  • Silent Motorized Column with on-shot stroke of 25.6"
  • 66 lbs Payload Capacity
  • Height Range: 39.2- 109.8"
  • Heavy Duty QR Plate with Sliding Range of 4.17"
  • Dolly with Cable Guards

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve perfect shots with exceptional stability, supporting up to 66 lbs for your camera gear.
  • Effortlessly adjust camera height from 3.26 to 9.15 feet, enhancing your video production versatility.
  • Experience smooth, precise motorized control, making camera positioning simple and efficient.
  • Enjoy superior portability with the included wheeled hard case and dolly bag for easy transport.
  • Benefit from robust durability, ensuring reliable performance for all your professional video projects.
  • Simplify your workflow with intuitive controls and a wired remote, offering ease of use on set.

What's in the box:

  • Motorized Tripod
  • Center Column
  • Quick Release Plate
  • EI-7004B Dolly
  • Power Supply Unit
  • 9.84' Power Supply Cable
  • 8.2' Motor Cable
  • 8.2' Motor Extension Cable
  • 6.56' Wired Remote Controller
  • Wheeled Hard Case with Padded Foam
  • Dolly Carrying Bag
  • User Manual
  • Ikan 1 Year Limited Warranty
